7213E

N/A

Category:

Description

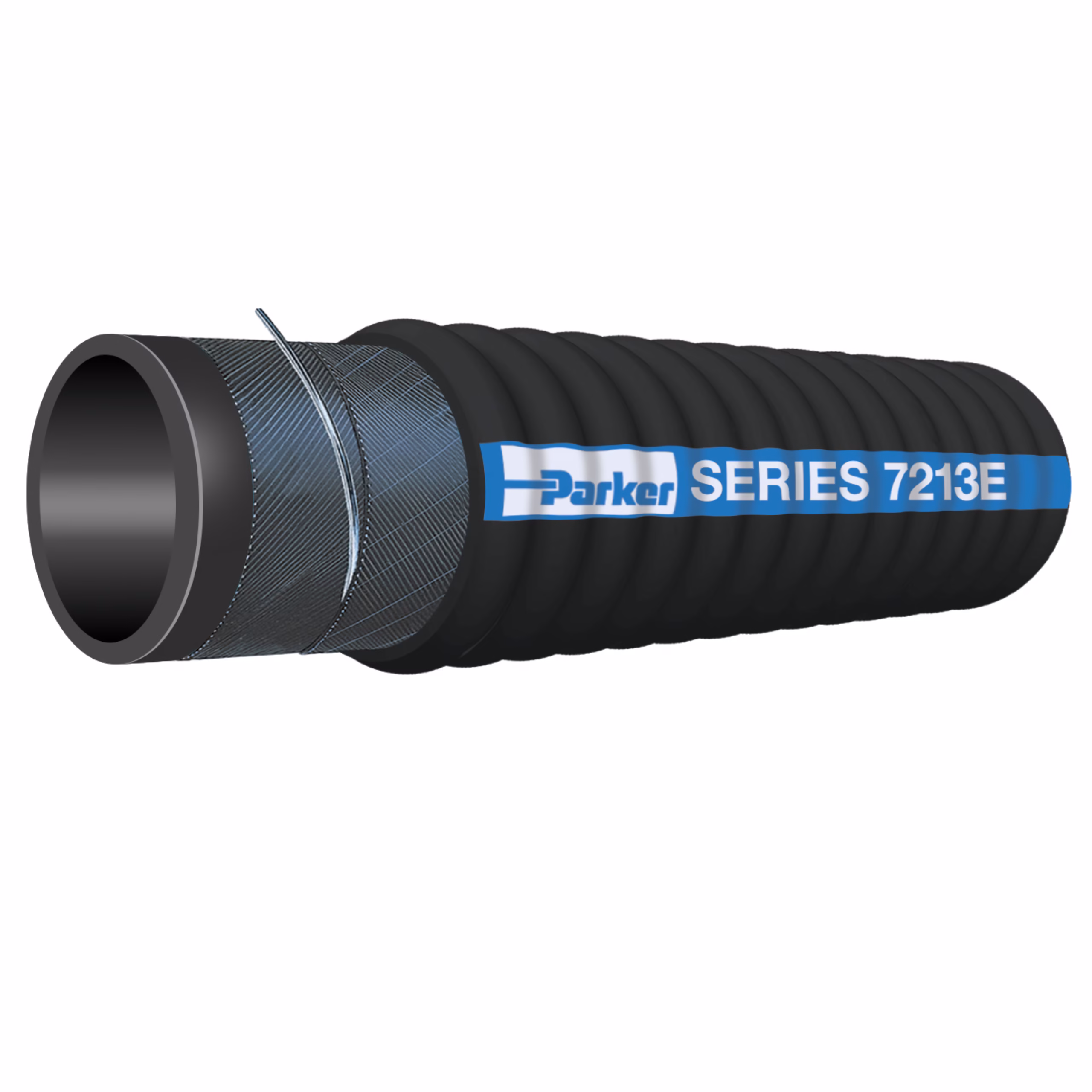

Wildcatter Corrugated Bottom Sediment & Waste Oilfield Suction/Vacuum Hose is designed to transfer petroleum waste, sediments, sludge, slurries and water in harsh oilfield waste pit recovery applications to 185°F and 150 psi, Series 7213E

Technical Specifications

Hose Inner Tube Material: Black, Nitrile/Styrene Butadiene Rubber (SBR)
Cover Material: Nitrile/Styrene Butadiene Rubber (SBR)
Cover Color: Black
Length per Package: 100 ft
Maximum Operating Pressure: 150 psi, 10.3 bar, 1 MPa
Vacuum Pressure Rating: Full, 29 inch-Hg, 737 mm-Hg
Minimum Operating Temperature: -22 °F, -30 °C
Maximum Operating Temperature: 185 °F, 85 °C
Minimum Bend Radius: 101.6 to 304.8 mm, 4 to 12 inch
Application: Oilfield
Weight: 1.28 to 3.71 kg/m, 0.86 to 2.49 lb/ft
Nominal Hose Inside Diameter: 40 to 100 mm
Specifications Met: n/a
Inside Diameter: 1-1/2 to 4 inch, 38.1 to 101.6 mm
Cover Structure: Corrugated, Wrapped
Outside Diameter: 50.2 to 116.0 mm, 2 to 4.6 inch
Hose Reinforcement Material: 2 or 3 Plies of Textile with Wire Helix
Package Type: Coil
Size: -24 to -64

Additional information

Part Number

7213E-1500, 7213E-2500, 7213E-4002
