7261
ARPM IP-14
Description

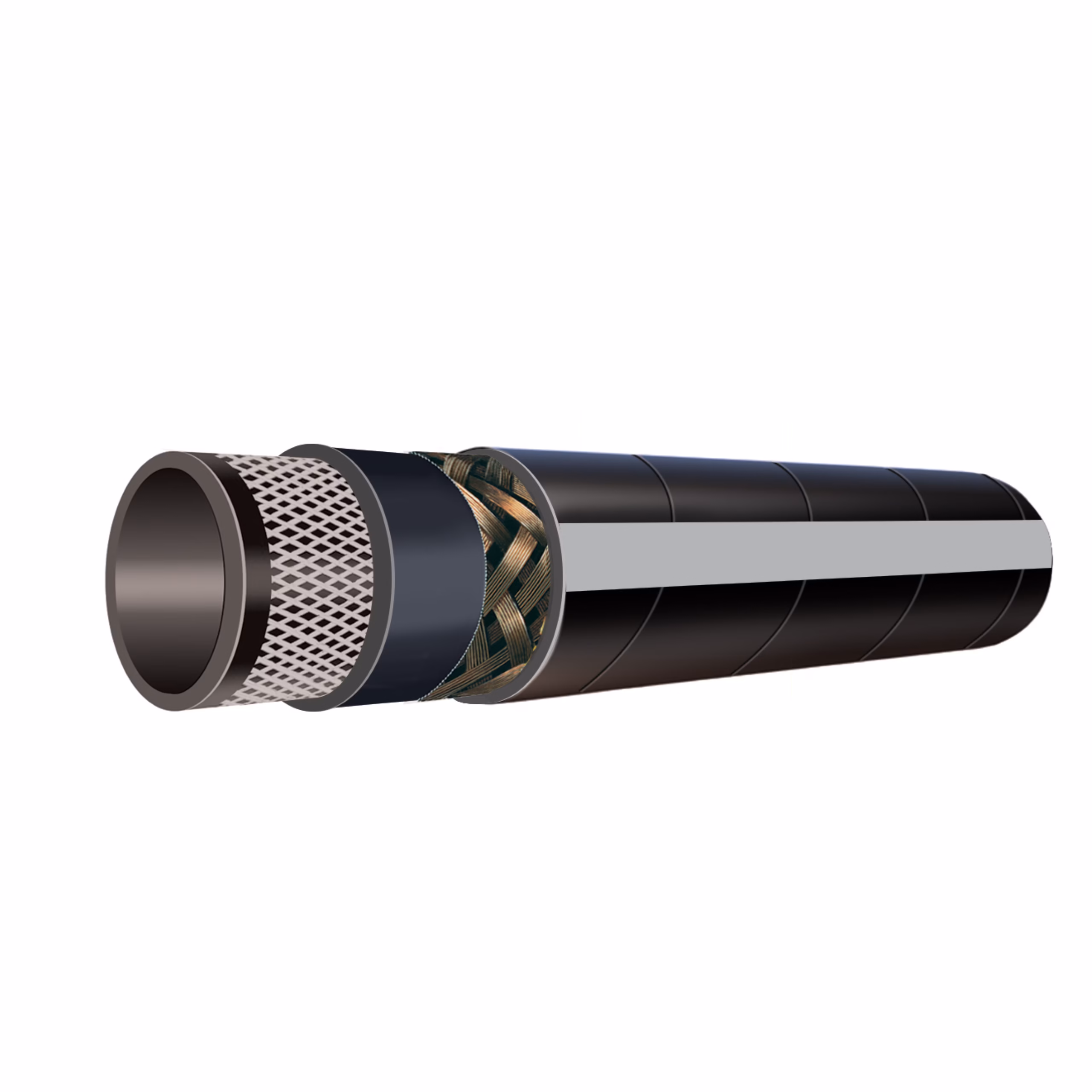

Anhydrous Ammonia Hose is designed for transfer of anhydrous ammonia in applications to 180°F and 350 psi, Series 7261
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Application: | Chemical Transfer |
| Maximum Operating Pressure: | 2.4 MPa, 350 psi, 24.1 bar |
| Weight: | 0.09 to 0.22 kg/m, 0.65 to 1.6 lb/ft, 0.65 to 1.61 lb, 0.29 to 0.73 kg |
| Nominal Hose Inside Diameter: | 25 to 50 mm |
| Specifications Met: | ARPM IP-14 |
| Inside Diameter: | 1 to 2 inch, 25.4 to 50.8 mm |
| Cover Structure: | Perforated, Wrapped |
| Minimum Bend Radius: | 304.8 to 635 mm, 12 to 25 inch |
| Outside Diameter: | 38.1 to 66.7 mm, 1.500 to 2.625 inch |
| Hose Reinforcement Material: | 1 Braid of Textile and 1 or 2 Braids of Stainless Steel Wire |
| Package Type: | Coil |
| Size: | -16 to -32 |
| Cover Color: | Black |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Length per Package: | 50 ft |
Additional information
| Part Number | 7261-1001, 7261-1501K, 7261-2002K |
|---|
