7337
MSHA
Description

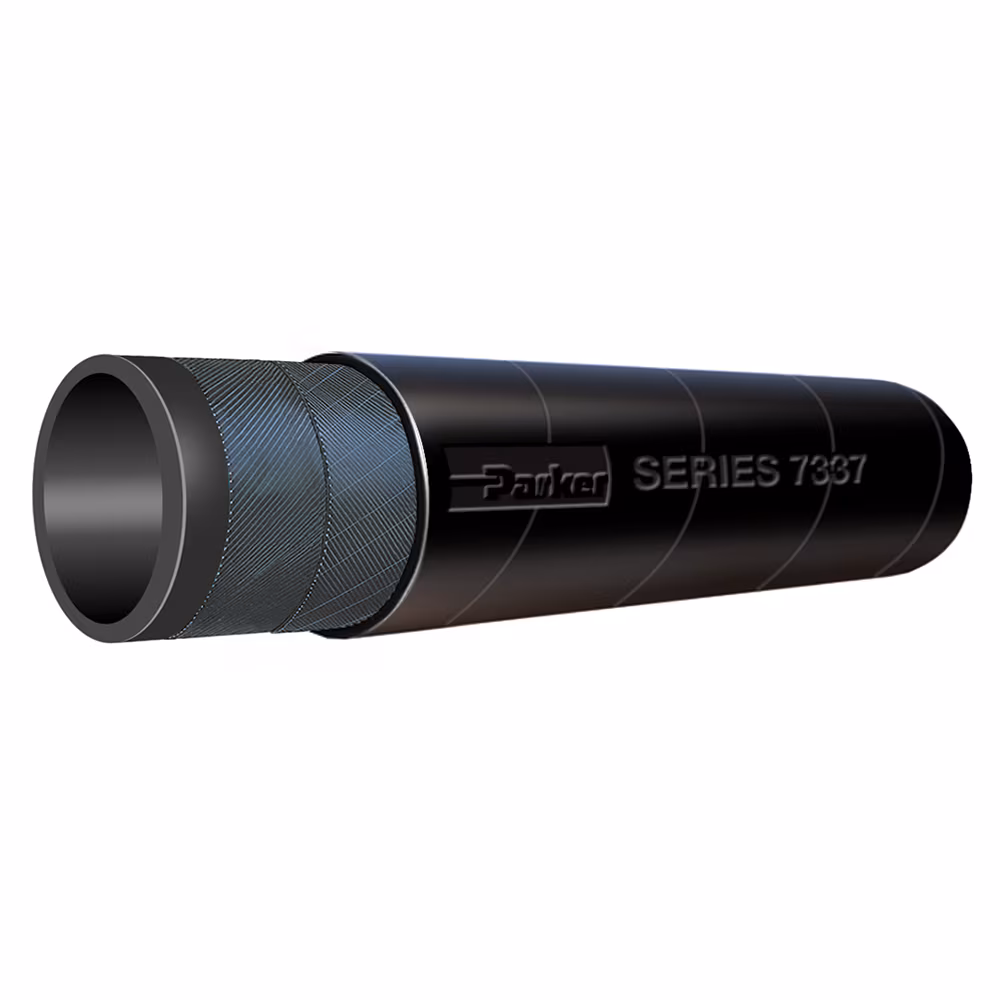

Reinforced Conduit Hose is designed as a durable cable cover to 180°F, Series 7337
Technical Specifications
| Cover Material: | Synthetic Rubber |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Inside Diameter: | 1-3/8 to 4 inch, 34.9 to 102.0 mm |
| Weight: | 1.01 to 2.67 kg/m, 0.68 to 1.79 lb/ft |
| Maximum Operating Pressure: | n/a |
| Application: | Industrial, Manufacturing |
| Minimum Operating Pressure: | n/a |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Outside Diameter: | 1.811 to 4.449 inch, 46.0 to 113.0 mm |
| Package Type: | Coil |
| Hose Inner Tube Material: | Black, Synthetic Rubber |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Minimum Operating Temperature: | -30 °F, -34 °C |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Length per Package: | 50 ft |
| Minimum Bend Radius: | n/a |
Additional information
| Part Number | 7337-1382, 7337-1502, 7337-1752, 7337-1882, 7337-2002, 7337-2252, 7337-2382, 7337-2502, 7337-3002, 7337-3502 |
|---|
