7337M
MSHA
Description

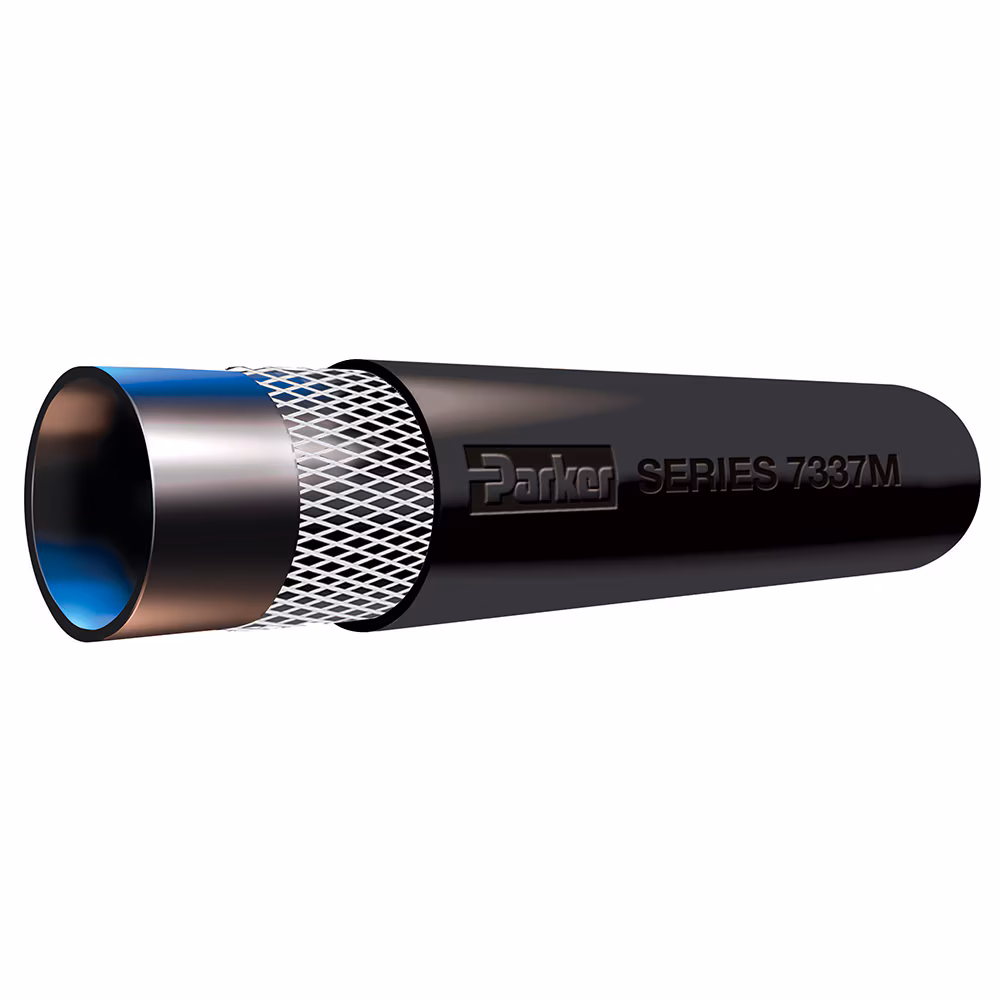

Reinforced Conduit Hose is designed as a durable cable cover to 180°F, Series 7337M
Technical Specifications
| Cover Material: | Synthetic Rubber |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Inside Diameter: | 1/2 to 1-1/4 inch, 12.7 to 31.8 mm |
| Maximum Operating Pressure: | n/a |
| Application: | Industrial, Manufacturing |
| Nominal Hose Inside Diameter: | 15 to 32 mm |
| Minimum Operating Pressure: | n/a |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Package Type: | Carton, Reel |
| Outside Diameter: | 0.968 to 1.718 inch, 24.6 to 43.6 mm |
| Size: | -8 to -20 |
| Hose Inner Tube Material: | Black, Synthetic Rubber |
| Cover Color: | Black |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | -30 °F, -34 °C |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Weight: | 0.31 to 0.63 lb/ft, 0.46 to 0.94 kg/m |
| Minimum Bend Radius: | n/a |
Additional information
| Part Number | 7337M-502, 7337M-502050, 7337M-632, 7337M-632050, 7337M-752, 7337M-752050, 7337M-1002, 7337M-1002050, 7337M-1132050, 7337M-1252, 7337M-1252050 |
|---|
