7395
SAE J20R2, Class D1; UL94 HB
Description

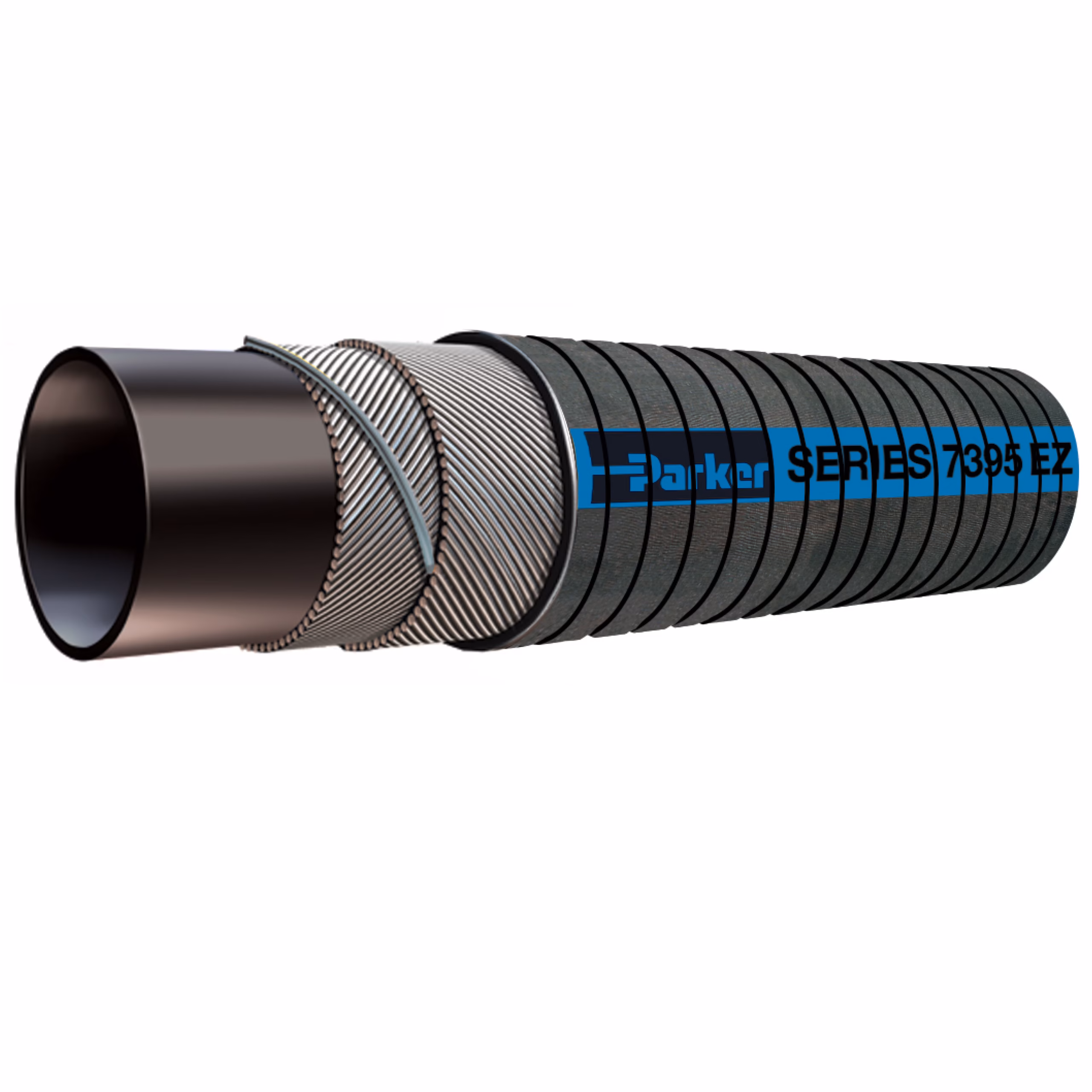

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395
Technical Specifications
| Hose Inner Tube Material: | Black, Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 4:1 |
| Cover Color: | Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) peroxide cured (up to 1″) |
| Minimum Bend Radius: | 0.9 to 13.4 inch, 24.1 to 340.3 mm |
| Maximum Operating Pressure: | 75 to 150 psi, 5 bar, 0.52 to 1.03 MPa |
| Vacuum Pressure Rating: | Full, 29 inch-Hg, 737 mm-Hg |
| Minimum Operating Temperature: | -50 °F, -45.6 °C |
| Maximum Operating Temperature: | 125 °C, 257 °F |
| Application: | Engine |
| Weight: | 0.40 to 3.28 kg/m, 0.27 to 2.20 lb/ft |
| Nominal Hose Inside Diameter: | DN10 to 100 |
| Media: | Coolants |
| Specifications Met: | SAE J20R2, Class D1; UL94 HB |
| Compatible Fitting: | 43 Series, HY Series |
| Inside Diameter: | 9.5 to 101.6 mm, 3/8 to 4 inch |
| Outside Diameter: | 21.0 to 116.0 mm, 0.820 to 4.567 inch |
| Size: | -6 to -64 |
| Cover Structure: | Greek-Corrugated |
| Hose Reinforcement Material: | 2 Braids or Plies of Textile with Wire Helix |
| Package Type: | Coil |
Additional information
| Part Number | 7395-0500025, 7395-0625025, 7395-0750025, 7395-1000025, 7395-1125025, 7395-1125130, 7395-1250025, 7395-1250130, 7395-1375025, 7395-1500025, 7395-1500130, 7395-1750025, 7395-2000025, 7395-2000130, 7395-2250025, 7395-2500025, 7395-3000025, 7395-3000130, 7395-3500025, 7395-3500130, 7395-4000025, 7395-0375300, 7395-0875025, 7395-0500300, 7395-0750300, 7395-0625300, 7395-1000300, 7395-1000300-RED |
|---|
