7541
N/A
Description

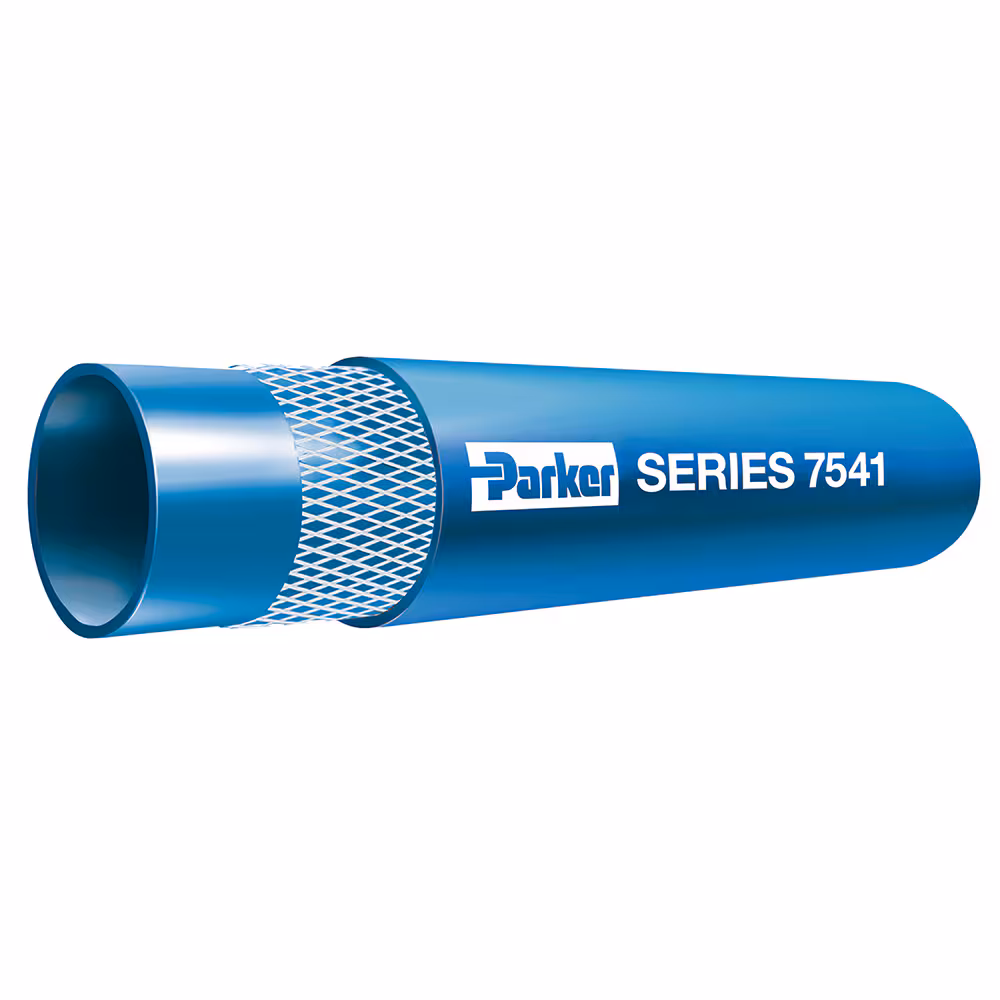

Gully Washer PVC Standard Duty Lay Flat Water Discharge Hose is designed for water transfer in applications to 140°F and 70 psi, Series 7541
Technical Specifications
| Cover Material: | PVC |
| Application: | Water |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 0.3 to 0.6 MPa, 40 to 80 psi, 2.8 to 5.5 bar |
| Inside Diameter: | 38.1 to 204.0 mm, 1-1/2 to 8 inch |
| Outside Diameter: | 40.7 to 206.8 mm, 1.602 to 8.140 inch |
| Nominal Hose Inside Diameter: | 40 to 200 mm |
| Size: | -24 to -128 |
| Package Type: | Coil |
| Hose Reinforcement Material: | 3 Plies of Textile |
| Hose Inner Tube Material: | Black, Nitrile/PVC |
| Cover Color: | Blue |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Maximum Operating Temperature: | 140 °F, 60 °C |
| Weight: | 0.14 to 1.28 lb/ft, 0.21 to 1.91 kg/m |
| Length per Package: | 300 ft |
| Minimum Bend Radius: | n/a |
Additional information
| Part Number | 7541-1501, 7541-2001, 7541-2501, 7541-3001, 7541-4001, 7541-6001, 7541-8001 |
|---|
