8341
N/A
Description

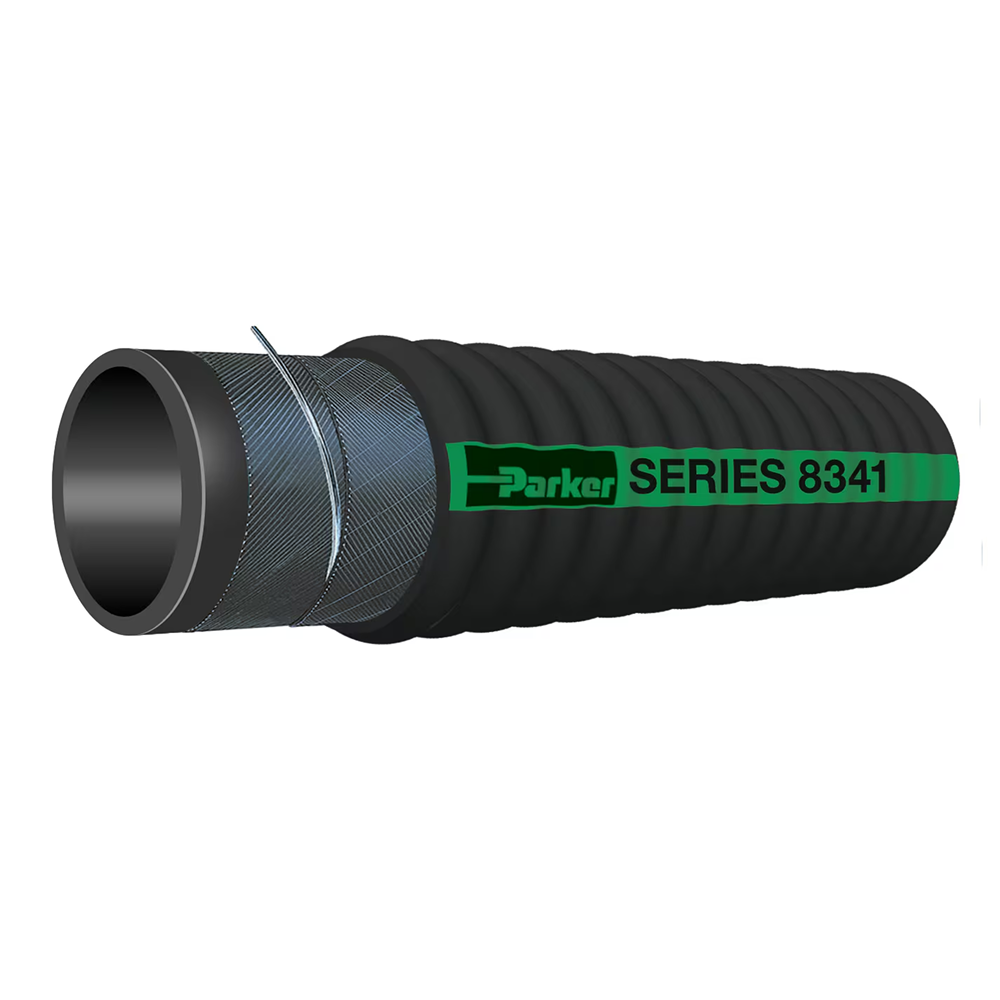

Day-Lite Large Corrugated Material Handling Suction & Vacuum Hose incorporates a thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 180°F and 75 psi, Series 8341
Technical Specifications
| Hose Inner Tube Material: | Black, Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Color: | Black |
| Cover Material: | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) |
| Maximum Operating Pressure: | 75 psi, 5.2 bar, 0.5 MPa |
| Length per Package: | 100 ft |
| Vacuum Pressure Rating: | Full, 29 inch-Hg, 737 mm-Hg |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Minimum Bend Radius: | 114.3 to 609.6 mm, 4.5 to 24 inch |
| Media: | Wet Abrasive Powders |
| Weight: | 1.15 to 8.81 kg/m, 0.77 to 5.9 lb/ft |
| Nominal Hose Inside Diameter: | 40 to 200 mm |
| Specifications Met: | n/a |
| Inside Diameter: | 1-1/2 to 8 inch, 38.1 to 203.2 mm |
| Application: | Material Handling |
| Cover Structure: | Corrugated, Wrapped |
| Outside Diameter: | 50.0 to 221.0 mm, 1.969 to 8.724 inch |
| Hose Reinforcement Material: | 2 or 3 Plies of Textile with Wire Helix |
| Package Type: | Coil |
| Size: | -24 to -128 |
Additional information
| Part Number | 8341-2000, 8341-3000, 8341-4000, 8341-6000, 8341-8000 |
|---|
