Cergom

Parker Specifications

Description

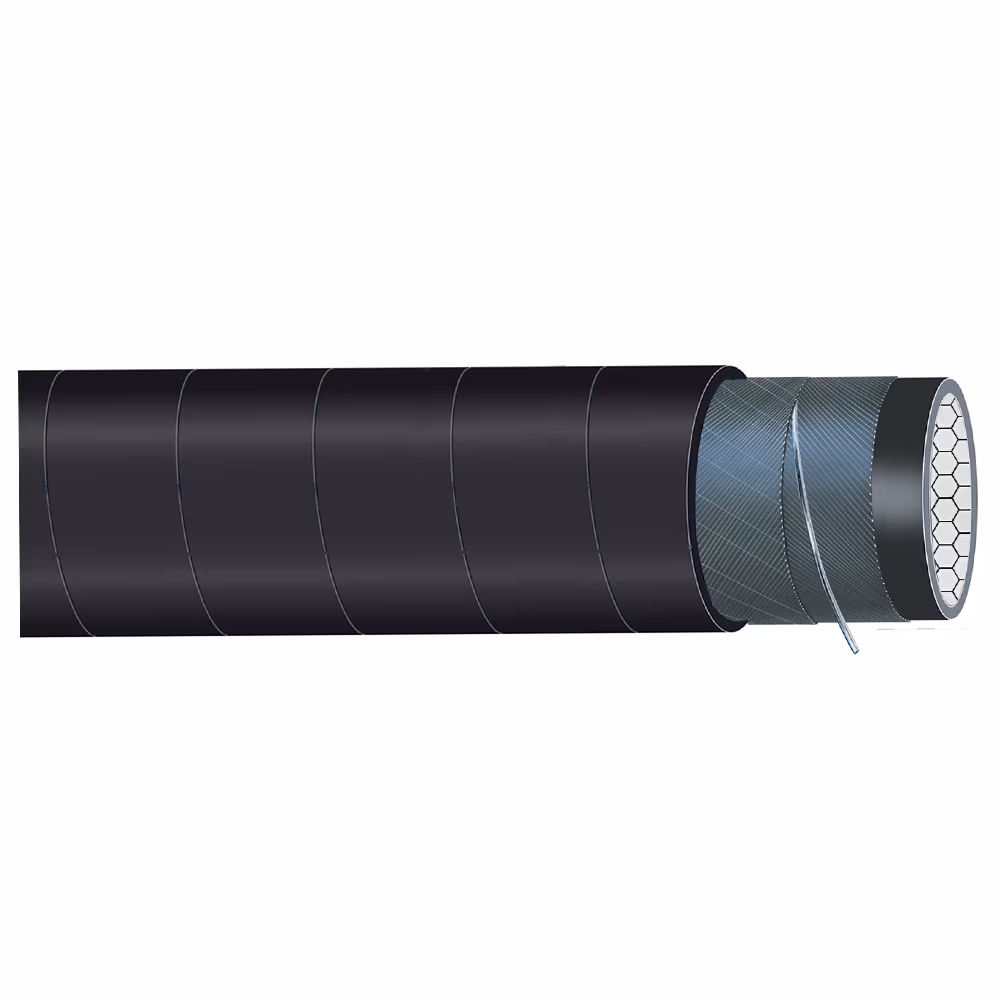

Cergom hose is a specialty product engineered to solve the toughest applications for abrasive material handling. Parker Patented

Weight:	1.74 to 18.6 lb/ft, 2.59 to 27.68 kg/m
Industry:	General Industrial, Off-road Machinery
Hose Inner Tube Material:	Butadiene Rubber (BR)/Natural Rubber (NR)
Brand:	Parker
Maximum Operating Temperature:	158 °F, 70 °C
Minimum Operating Temperature:	-22 °F, -30 °C
Maximum Operating Pressure:	10 bar, 145 psi
Product Type:	Specialty Hose, Suction Hose, Transfer Hose
Technology:	Fluid & Gas Handling
Cover Material:	Styrene Butadiene Rubber (SBR)/Nitrile Butadiene Rubber (NBR)
Design Factor:	3:1
Vacuum Pressure Rating:	0.9 bar, 26.58 inch-Hg, 675.06 mm-Hg
Materials of Construction:	Rubber
Division:	Polymer Hose Division Europe
Product Style:	Suction and Delivery
Minimum Bend Radius:	14.764 to 119.882 inch, 375 to 3045 mm
Media:	Dry Abrasive Powders (Dry Cement, Coal, CDR (fuel by-waste material), Minerals, Ceramic Powder, Glass recovery, Fiberglass)
Specifications Met:	Parker Specifications
Inside Diameter:	0.984 to 7.874 inch, 25 to 200 mm
Application:	Material Handling
Hose Reinforcement Material:	Synthetic Textile Fabric with Embedded Steel Wire Helix and Copper Wire
Outside Diameter:	1.929 to 9.449 inch, 49 to 240 mm
Compatible Fitting:	Swivel Flanges DIN 2817 PN 16 built-in (max length hose: from I.D. 42 to 125 mm = 20 m; other diameters = 10 m)

Part Number	IH36829020/0, IH36829021/0, IH36829022/0, IH36829023/0, IH36829024/0, IH36829025/0, IH36829026/0, IH36829027/0, IH36829028/0, IH36829029/0, IH36829030/0, IH36829031/0, IH36829032/0, IH36829033/0, IH36829034/0, IH36829035/0
