CVT
AS/NZS 2070.0
Description

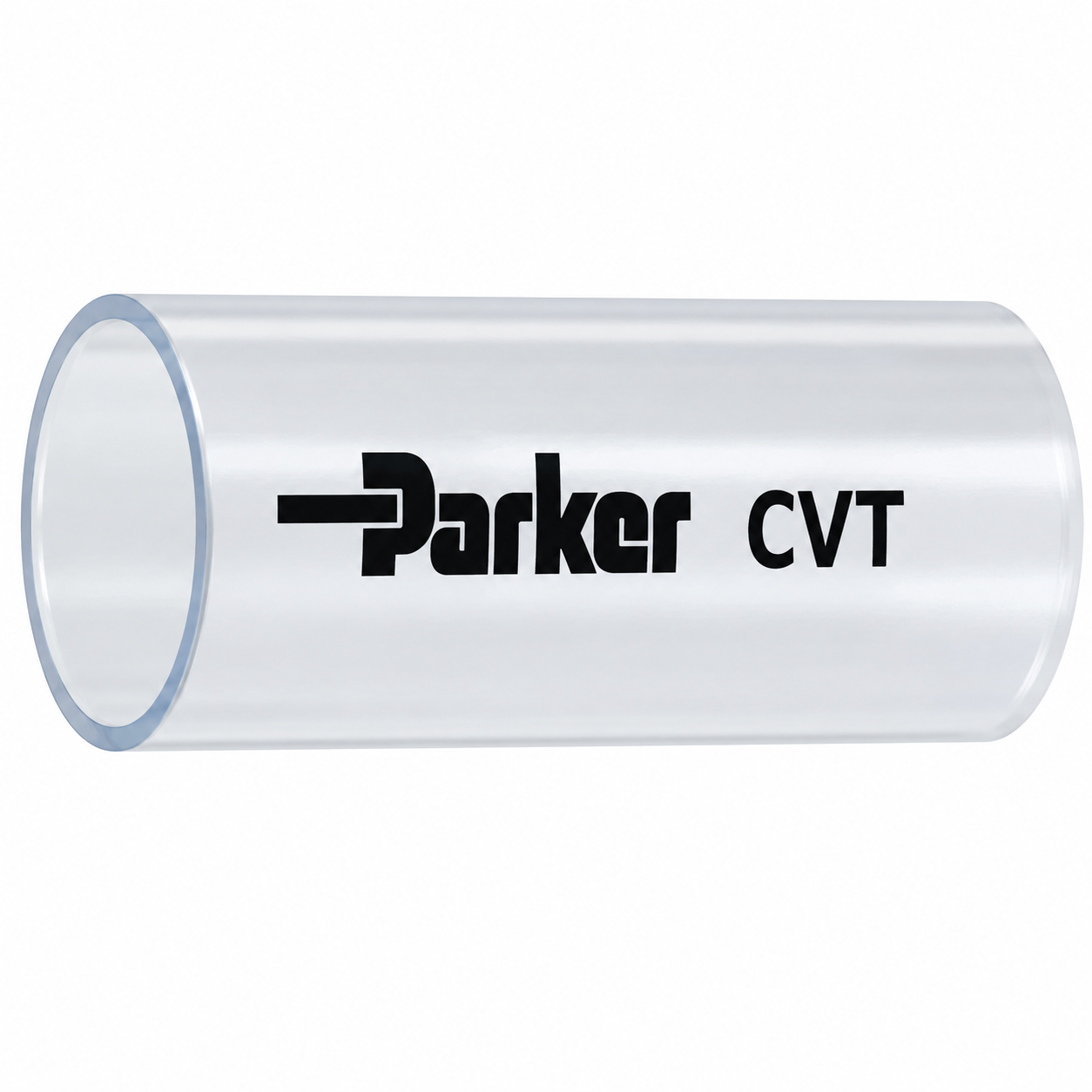

Clear Vinyl Tubing Suitable for food and beverage lines operating at low pressures, general purpose low pressure delivery lines, light siphon lines, cable protection and drainage lines. Conforms to AS/NZS 2070 for food contact requirements.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Hose Reinforcement Material: | n/a |
| Nominal Hose Inside Diameter: | DN5 to 50 |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Weight: | 0.02 to 0.83 kg/m |
| Cover Material: | PVC |
| Cover Color: | Transparent |
| Media: | Food & Beverage |
| Specifications Met: | AS/NZS 2070.0 |
| Inside Diameter: | 0.118 to 1.96 inch, 3 to 50 mm |
| Maximum Operating Pressure: | n/a |
| Application: | Cable Protection, Drainage Lines, Food & Beverage Processing, Siphon Lines |
| Minimum Bend Radius: | 50 to 320 mm, 50 to 250 mm |
| Outside Diameter: | 5 to 47 mm, 5 to 58 mm |
| Size: | -2 to -32 |
Additional information
| Part Number | CVT-005-030, CVT-016-030, CVT-020-030, CVT-032-030, CVT-038-015, CVT-038-030 |
|---|
