ESH

N/A

Category:

Description

Parker High Pressure ESH Hoses are developed for High and Ultra High Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 25 MPa.<br/>

Technical Specifications

Weight: 0.15 to 0.62 lb/ft, 0.23 to 0.92 kg/m
Industry: General Industrial
Hose Inner Tube Material: Polyethylene (PE)
Brand: Parker
Maximum Operating Temperature: 122 °F, 50 °C
Minimum Operating Temperature: -10 °C, 14 °F
Maximum Operating Pressure: 200 to 250 bar, 2900 to 3625 psi, 20.0 to 25.0 MPa
Product Type: Specialty Hose, Transfer Hose, Water Blast Hose, Water Hose
Technology: Fluid & Gas Handling
Cover Material: Polyurethane
Design Factor: 2.5:1
Division: Polymer Hose Division Europe
Product Style: Sewer Cleaning Hose
Minimum Bend Radius: 100 to 225 mm, 3.937 to 8.858 inch
Materials of Construction: Thermoplastic
Cover Color: Green, Yellow
Compatible Fitting: EH Series
Inside Diameter: 1/2 to 1-1/4 inch, 12.4 to 32 mm
Application: Cleaning (Sewers)

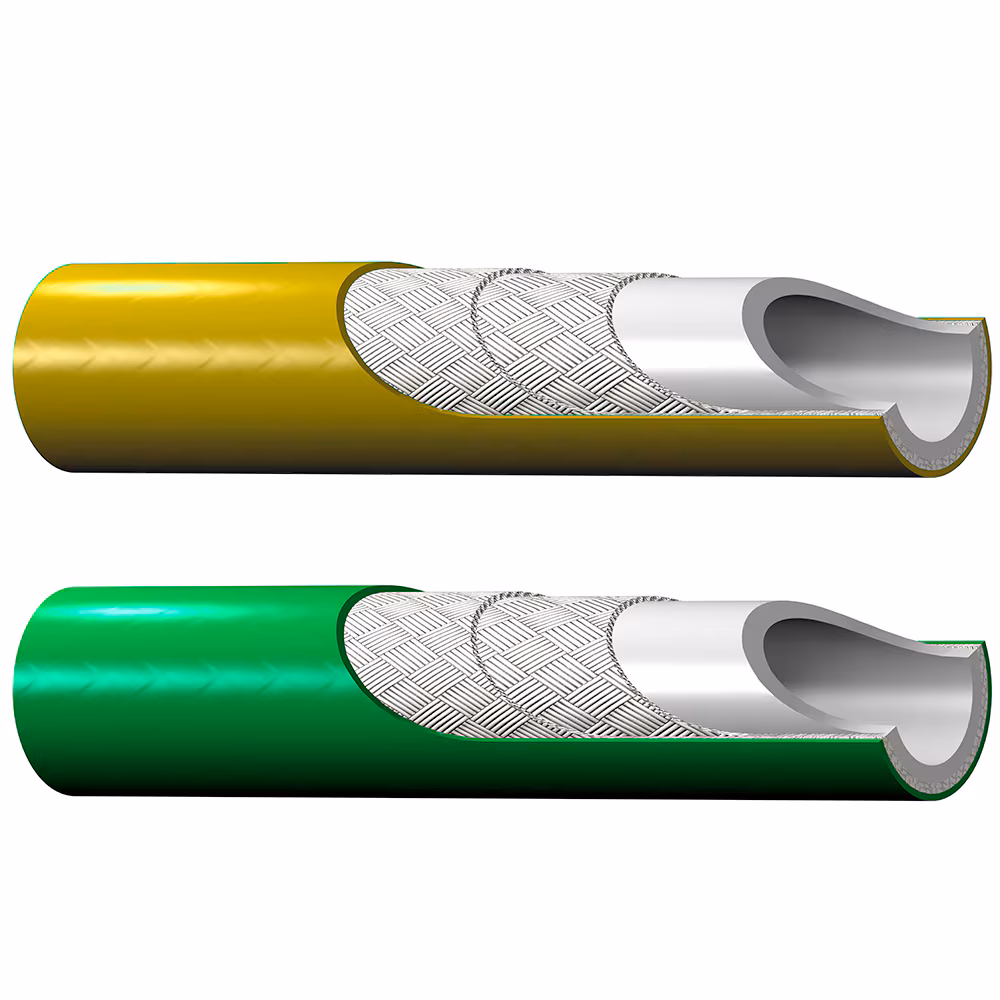

Hose Reinforcement Material: 2 Braids of High Tensile Synthetic Fiber
Outside Diameter: 0.811 to 1.772 inch, 20.6 to 46 mm

Additional information

Part Number

ESH200-08, ESH200-12, ESH200-16, ESH200-20
ESH250-08, ESH250-12, ESH250-16, ESH250-20
