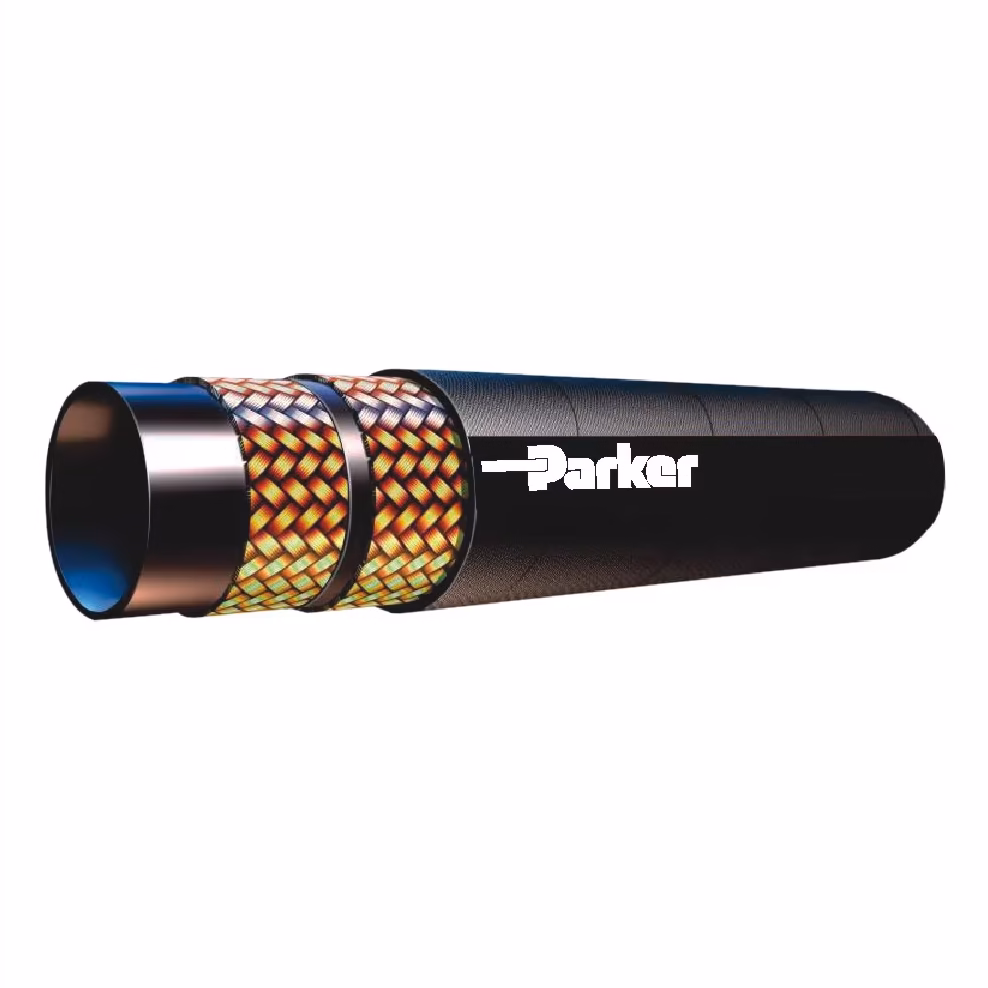

PFPM
Certification: exceeds EN853 2SN
Description
Powerflex hose designed with extra flexibilty & resistant to frequent impulses also exceeds EN853 2SN specification.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | Parker Specifications |
| Weight: | 0.3 to 1.55 kg/m, 0.2 to 1.04 lb/ft |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Maximum Operating Pressure: | 400 to 250 bar, 40.0 to 25.0 MPa, 5800 to 3600 psi |
| Application: | Hydraulics |
| Minimum Bend Radius: | 2 to 8 inch, 50 to 200 mm |
| Outside Diameter: | 0.52 to 1.5 inch, 13.2 to 38.2 mm |
| Size: | -4 to -16 |
Additional information
| Part Number | PFPM-4PM, PFPM-5PM, PFPM-6PM, PFPM-8PM, PFPM-10PM, PFPM-12PM, PFPM-16PM |
|---|
