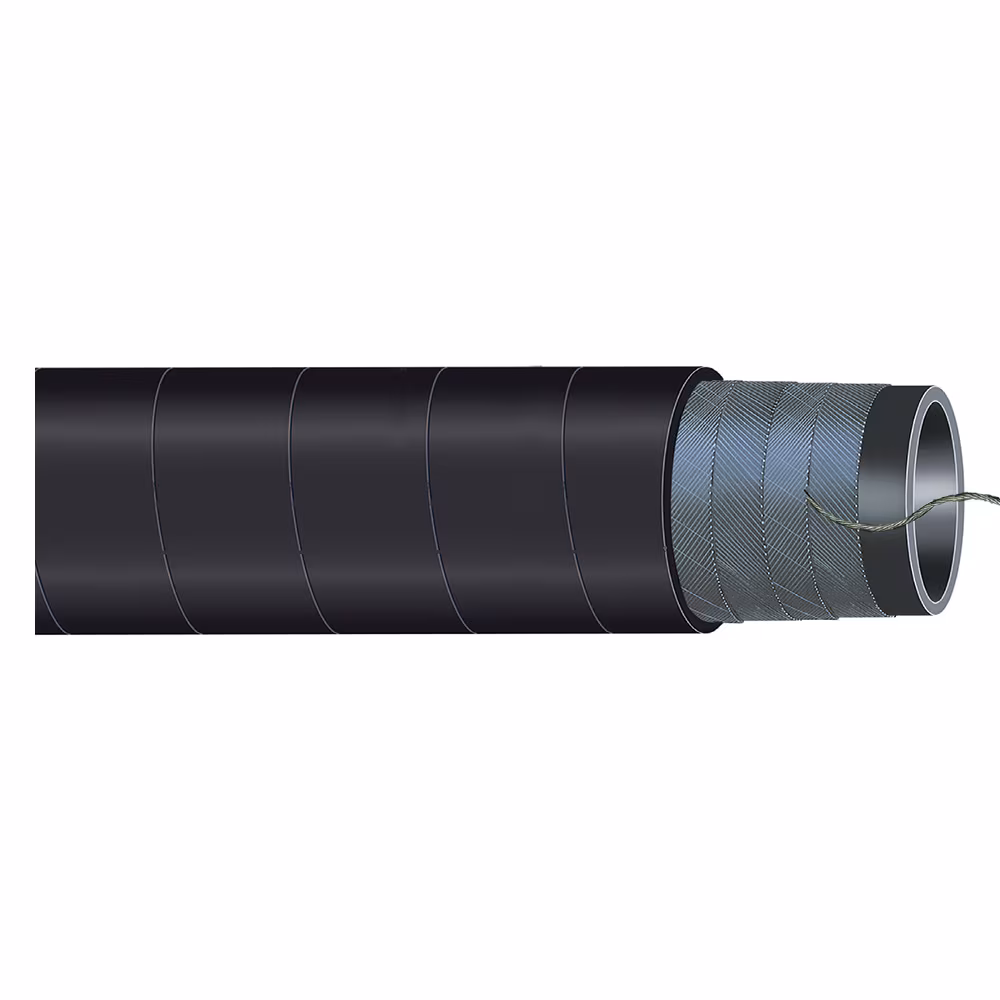

Carbocord EN 12115
EN 12115.0, TRbF 131 part 2 par 5.5
Description
Carbocord EN 12115 is suitable for delivery of oil and fuel with up to 50% aromatic content.
Technical Specifications
| Weight: | 0.40 to 2.55 lb/ft, 0.60 to 3.80 kg/m |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Pressure: | 1.6 MPa, 16 bar, 232 psi |
| Application: | Oil & Fuel, Fluid Transfer (Oil and Fuel) |
| Product Type: | Oil Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Nitrile Butadiene Rubber (NBR)/Styrene Butadiene Rubber (SBR) |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Maximum Length: | 40 m |
| Product Style: | Delivery |
| Materials of Construction: | Rubber |
| Minimum Bend Radius: | 125 to 450 mm, 4.921 to 17.716 inch |
| Media: | Fuels (Diesel, Gasoline) – Check fuel type with our catalogue chart., Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | EN 12115.0, TRbF 131 part 2 par 5.5 |
| Compatible Fitting: | n/a |
| Inside Diameter: | 3/4 to 3.937 inch, 19 to 100 mm |
| Maximum Operating Temperature: | 80 °C (Up to 100°C for oil), 176 °F (Up to 212°F for oil) |
| Hose Reinforcement Material: | Synthetic Textile Fabric with Embedded Copper Wire |
| Outside Diameter: | 1.220 to 4.567 inch, 31 to 116 mm |
Additional information
| Part Number | IH36522309/40, IH36522310/40, IH36522311/40, IH36522312/40, IH36522313/40, IH36522314/40 |
|---|
