SS25UL
Certification: NFPA 58.0, UL 21.0
Description

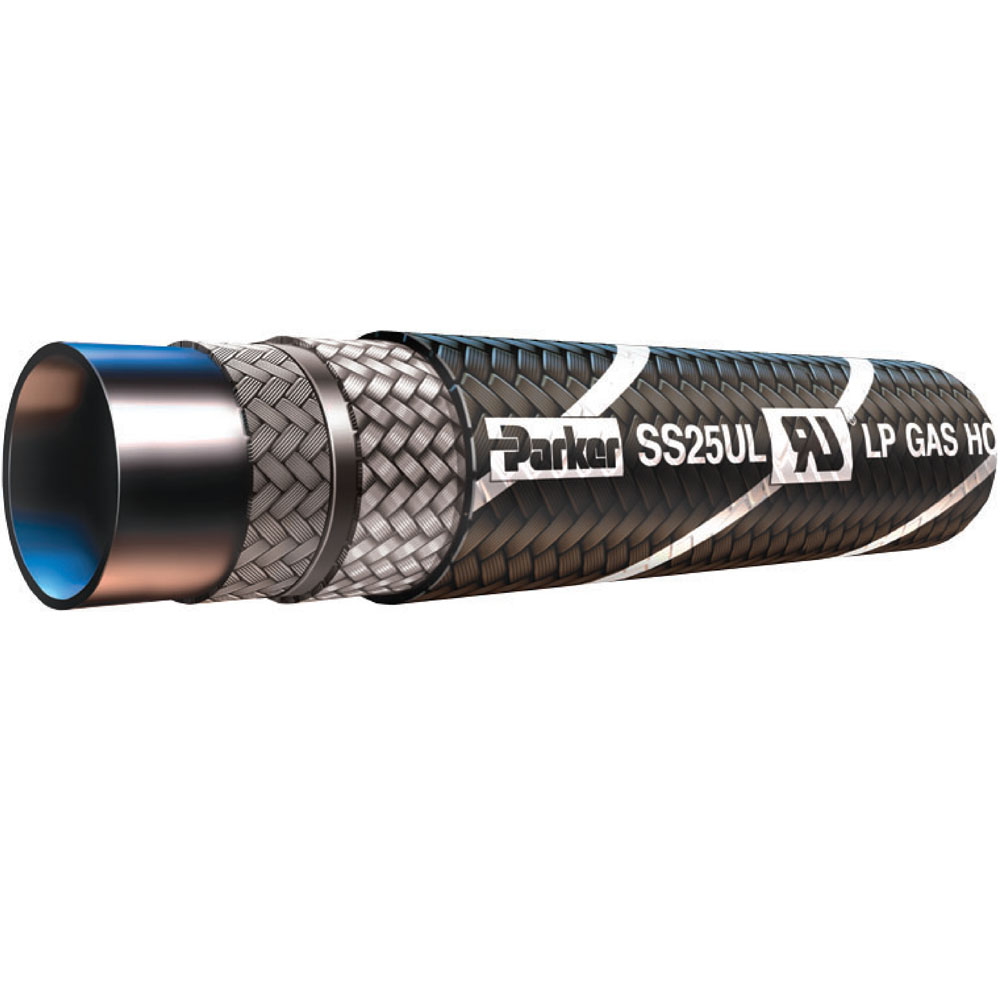

Parker’s SS25UL hose is a liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Welding Gases (Technical Gases) |
| Specifications Met: | NFPA 58.0, UL 21.0 |
| Compatible Fitting: | 26 Series, 20 Series, 22 Series |
| Maximum Operating Pressure: | 24 bar, 2.4 MPa, 350 psi |
| Maximum Operating Temperature: | 121 °C, 250 °F |
| Weight: | 0.16 to 0.55 kg/m, 0.11 to 0.37 lb/ft |
| Inside Diameter: | 3/16 to 5/8 inch, 5 to 16 mm |
| Minimum Bend Radius: | 0.75 to 2-3/4 inch, 20 to 70 mm |
| Application: | Forestry, Agriculture Equipment, Hydraulics, Material Handling, Transportation |
| Outside Diameter: | 13.2 to 27.4 mm, 0.52 to 1.08 inch |
| Hose Reinforcement Material: | 1 Braid of Fiber and 1 Braid of Stainless Steel Wire, 1 Braid of Fiber |
| Hose Inner Tube Material: | Synthetic Rubber |
| Hose Cover Type: | Standard Cover |
Additional information
| Part Number | SS25UL-4, SS25UL-5, SS25UL-6, SS25UL-8, SS25UL-10, SS25UL-12 |
|---|
