2380F (High pressure)
Parker Specifications
Description
Parker 2380F Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are ideal for production environments. For working pressure up to 42.5 MPa.
Technical Specifications
| Weight: | 0.26 to 1.28 kg/m, 0.17 to 0.86 lb/ft |
| Industry: | General Industrial |
| Hose Inner Tube Material: | Fluorinated Ethylene Propylene (FEP) |
| Brand: | Parker |
| Maximum Operating Temperature: | 176 °F, 80 °C |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 22.5 to 42.5 MPa, 225 to 425 bar, 3260 to 6160 psi |
| Product Type: | Hydraulic Hose, PTFE Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyurethane |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | FEP High Pressure Hose |
| Materials of Construction: | Thermoplastic |
| Minimum Bend Radius: | 2.362 to 9.449 inch, 60 to 240 mm |
| Cover Color: | Gray |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart., Petroleum Hydraulic Fluids |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | NX Series |
| Inside Diameter: | 1/4 to 1 inch, 6.3 to 25 mm |
| Application: | Glue & Material Lines Application |

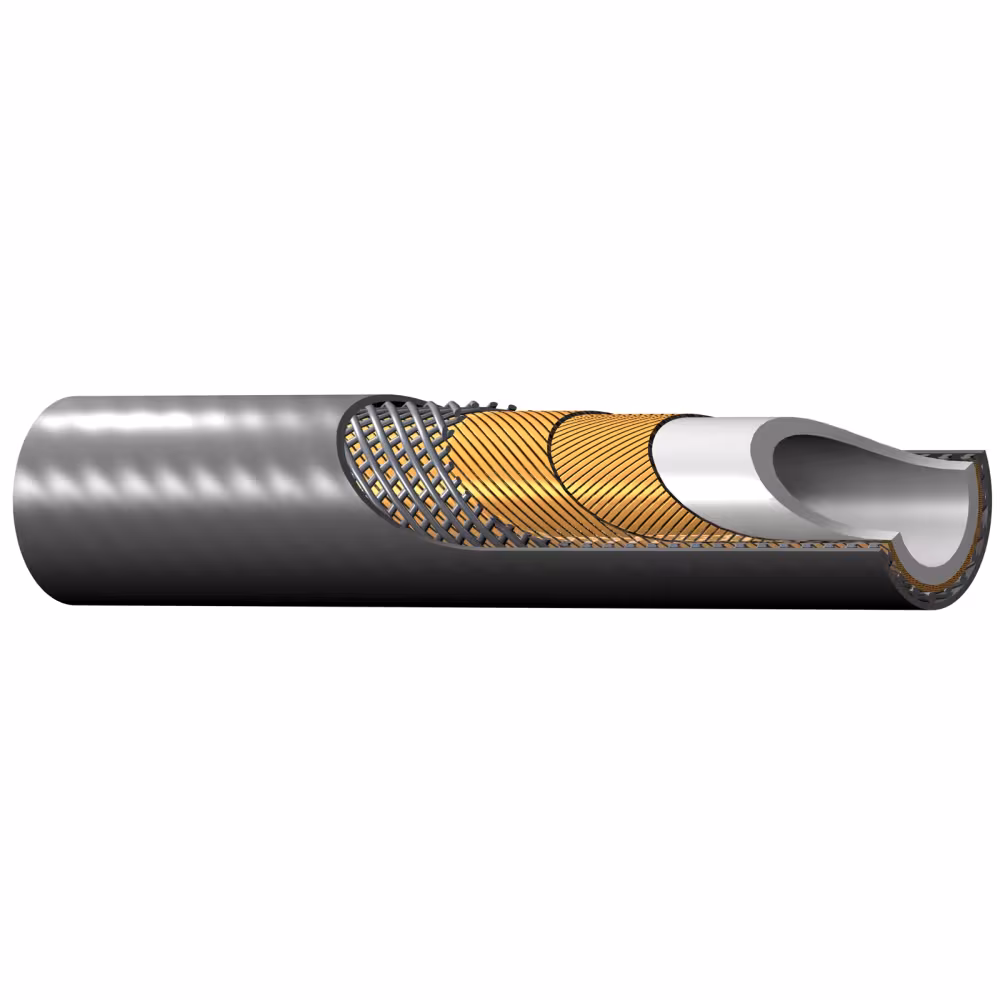

| Hose Reinforcement Material: | 2 Spirals and 2 Open Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.492 to 1.338 inch, 12.5 to 34 mm |
Additional information
| Part Number | 2380F-04V07, 2380F-05V07, 2380F-06V07, 2380F-08V07, 2380F-10V07, 2380F-12V07, 2380F-16V07 |
|---|
