397
Certification: EPA, SAE J30R14, Type 2, SAE J30R7
Description

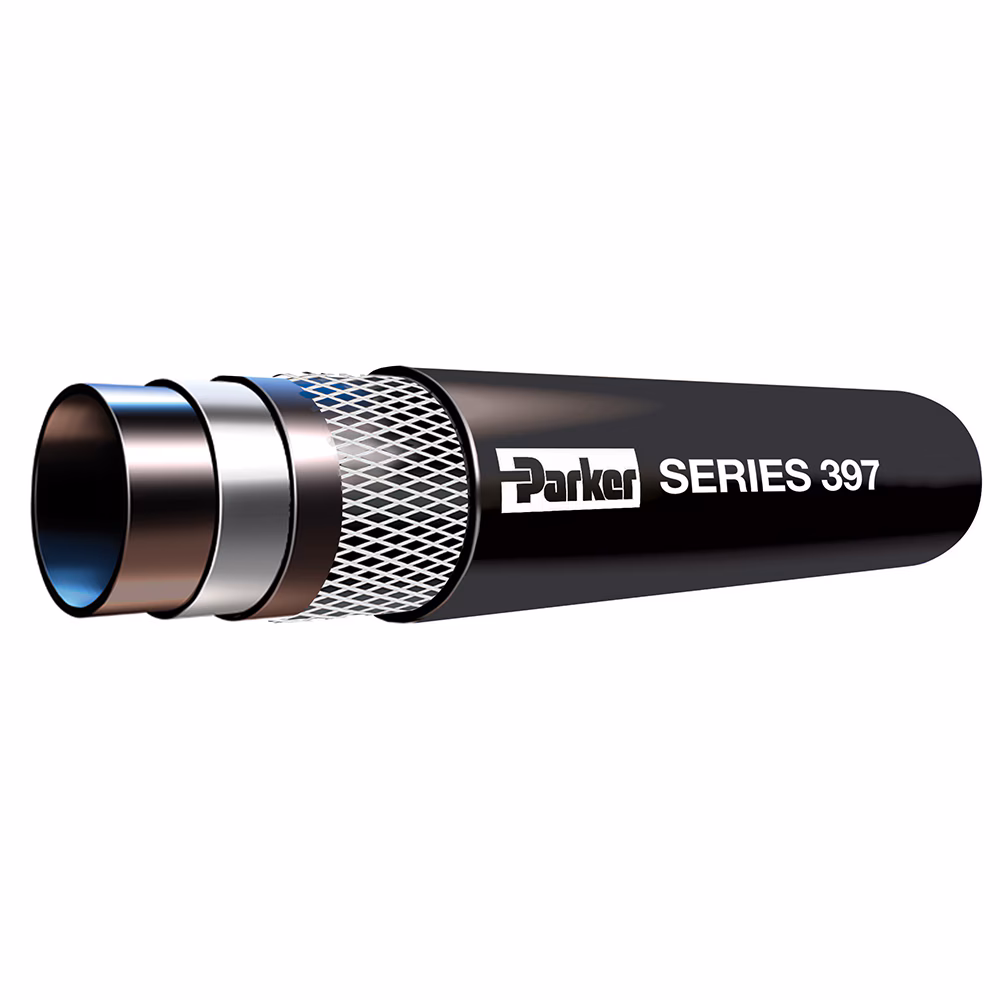

Super-Flex Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 397
Technical Specifications
| Cover Material: | Chloroprene Rubber (CR) |
| Vacuum Pressure Rating: | 10 to 24 inch-Hg, 254 to 610 mm-Hg, 10 to 24 |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Application: | Engine |
| Specifications Met: | EPA, SAE J30R14, Type 2, SAE J30R7 |
| Compatible Fitting: | 55 Series, HY Series |
| Maximum Operating Pressure: | 0.2 to 0.7 MPa, 35 to 100 psi, 2.4 to 6.9 bar |
| Inside Diameter: | 3/16 to 3/4 inch, 4.8 to 19.1 mm |
| Hose Reinforcement Material: | 1 or 2 Plies of Textile |
| Package Type: | Reel |
| Nominal Hose Inside Diameter: | 5 to 20 mm |
| Minimum Bend Radius: | 1.3 to 6 inch, 33 to 152.4 mm |
| Size: | -3 to -12 |
| Outside Diameter: | 0.438 to 1.125 inch, 11.1 to 28.6 mm |
| Hose Inner Tube Material: | Black, Nitrile/Translucent Thermoplastic Barrier |
| Cover Color: | Black |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | -30 °F, -34 °C |
| Maximum Operating Temperature: | 257 °F, 125 °C |
| Weight: | 0.06 to 0.33 lb/ft, 0.08 to 0.49 kg/m |
| Length per Package: | 250 ft |
Additional information
| Part Number | 39703, 39704, 39705, 39706, 39708, 39710, 39712 |
|---|
