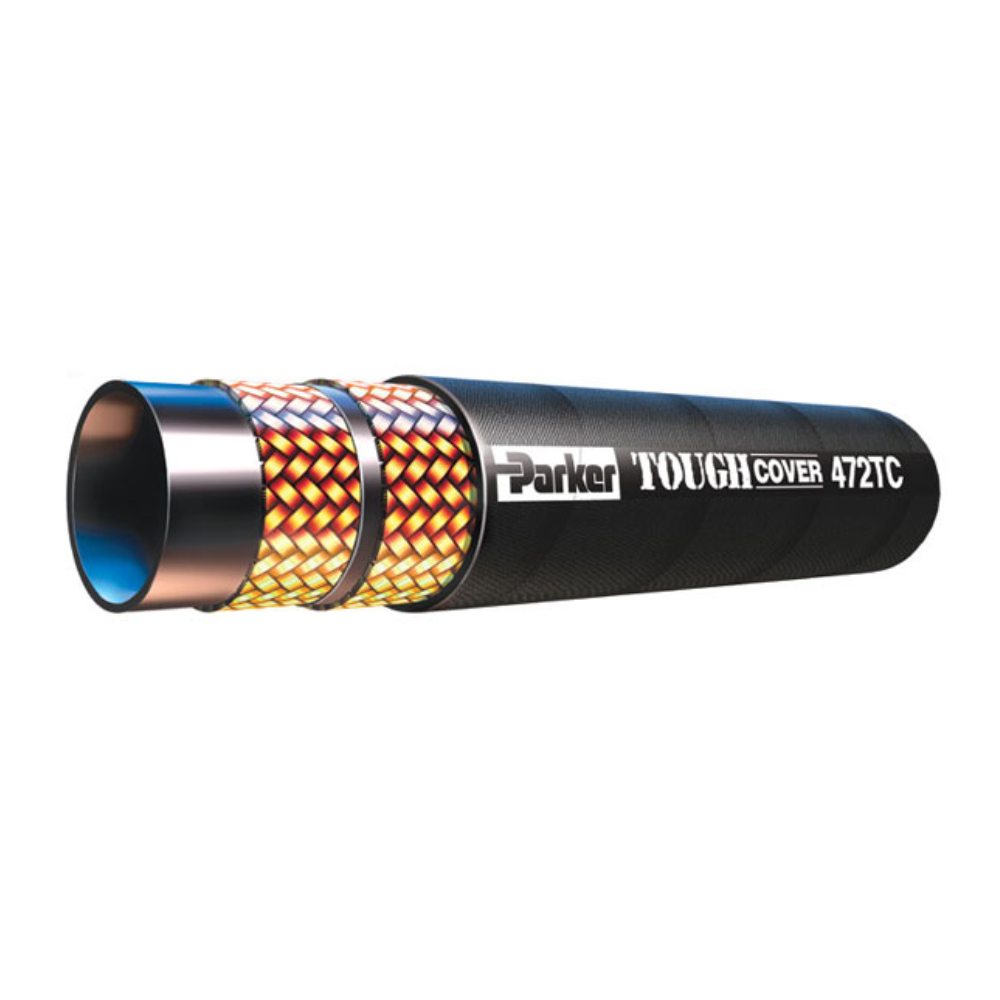

472TC
Certification: SAE J1942
Description
Parker’s 472TC hose is a hydraulic industry standard hose that has a pressure range of 1300-2250 PSI, which allows for one to meet the specifications of any task at hand.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | SAE J1942 |
| Compatible Fitting: | 43 Series |
| Weight: | 2.01 to 2.90 kg/m, 1.34 to 1.93 lb/ft |
| Inside Diameter: | 1-1/4 to 2 inch, 31.5 to 51 mm |
| Maximum Operating Pressure: | up to 15.7 MPa, up to 2250 psi, up to 157 bar |
| Application: | Agriculture Equipment, Forestry, Hydraulics, Industrial, Material Handling, Transportation |
| Hose Reinforcement Material: | 2 Braids of Steel Wire |
| Minimum Bend Radius: | 8-1/4 to 12-1/2 inch, 210 to 315 mm |
| Outside Diameter: | 1.79 to 2.54 inch, 45 to 65 mm |
| Size: | -20 to -32 |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant, MSHA approved |
| Hose Cover Type: | Tough Cover |
Additional information
| Part Number | 472TC-20, 472TC-24, 472TC-32 |
|---|
