627
Certification: UL 94 (HB)
Description

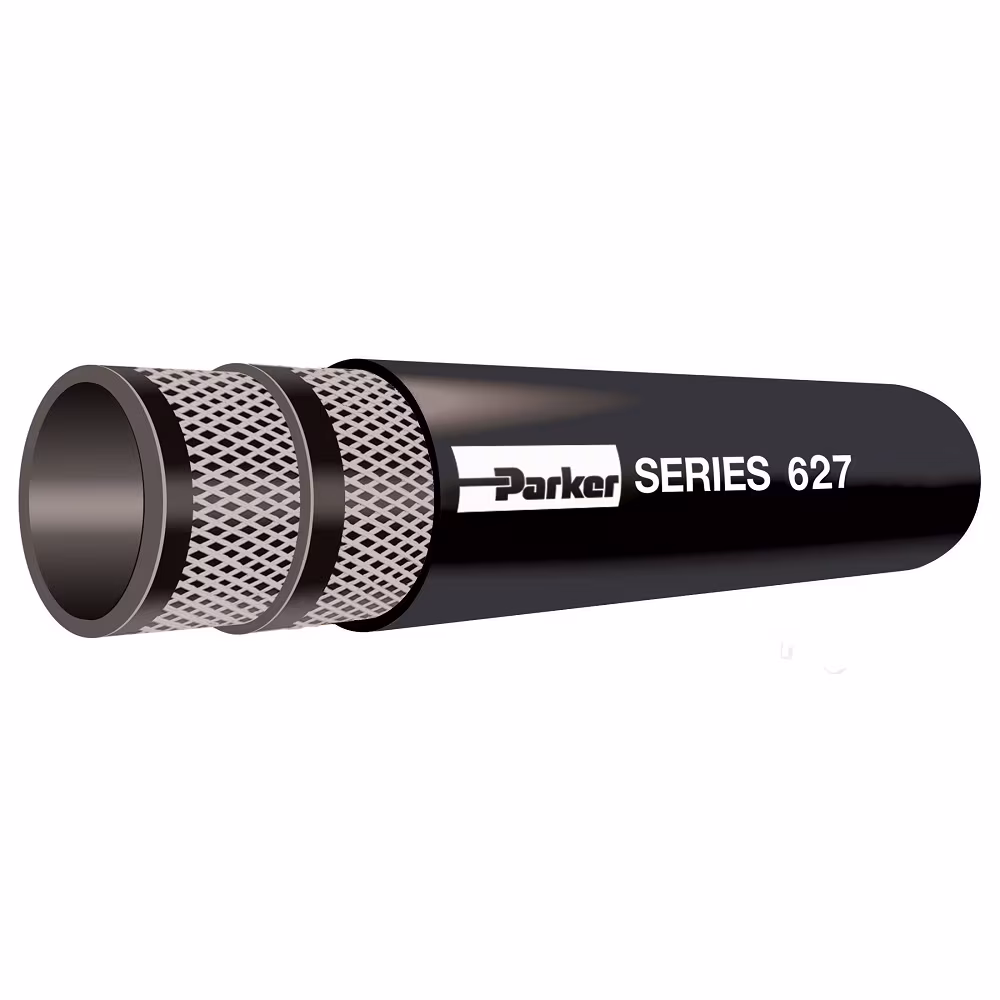

Parker 627 is utilized for the transfer of coolants in high performance computers and data farms. The EPDM, peroxide cured tube is specially formulated for compatibility with industrial coolants.
Technical Specifications
| Minimum Bend Radius: | 1.3 to 9 inch, 33 to 228 mm, 1.3 to 9 inch, 33 to 228 mm |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) peroxide cured, Black peroxide cured |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Application: | Media Transfer |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | UL 94 (HB) |
| Weight: | 0.19 to 1.24 kg/m, 0.19 to 1.24 kg/m, 0.13 to 0.46 lb/inch, 0.13 to 0.84 lb/inch |
| Inside Diameter: | 3/8 to 1 inch, 3/8 to 1-1/2 inch, 9.5 to 25.4 mm, 9.5 to 38.1 mm |
| Maximum Operating Pressure: | 1.034 MPa, 150 psi, 10 bar |
| Outside Diameter: | 0.7 to 1.4 inch, 0.7 to 2 inch, 16.7 to 36.3 mm, 16.7 to 50 mm |
| Hose Reinforcement Material: | Multiple Plies of Textile |
| Cover Color: | Black |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Minimum Operating Temperature: | -40 °F |
Additional information
| Part Number | 627-6-RL, 627-8-RL, 627-12-RL, 627-16-RL, 627-20-RL, 627-24-RL |
|---|
