6621
ISO, SAE, TMC RP
Description

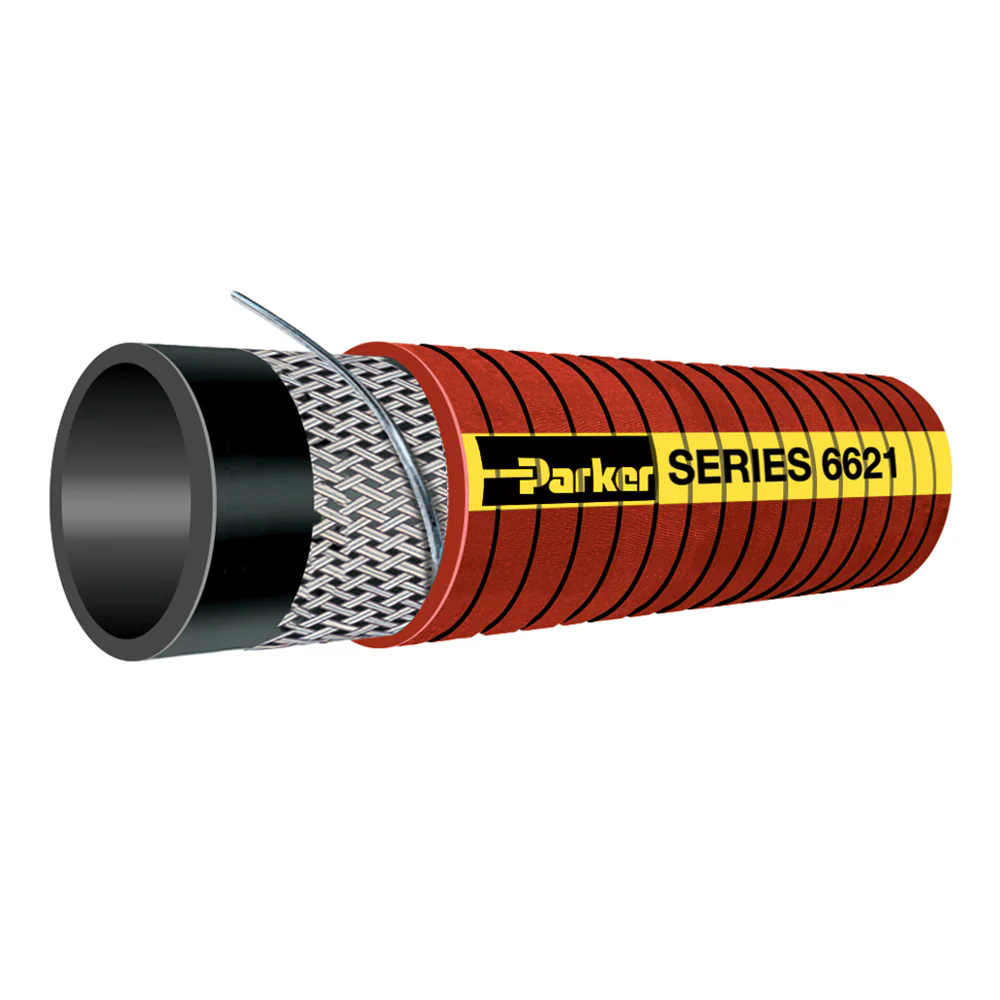

Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose is for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment to 75 psi and 392°F, Series 6621
Technical Specifications
| Cover Material: | Silicone |
| Cover Structure: | Greek-Corrugated, Glossy |
| Application: | Engine |
| Vacuum Pressure Rating: | 18 inch-Hg, 457 mm-Hg |
| Media: | Coolants |
| Specifications Met: | ISO, SAE, TMC RP |
| Maximum Operating Pressure: | 0.5 MPa, 75 psi, 5.2 bar |
| Nominal Hose Inside Diameter: | 15 to 50 mm |
| Inside Diameter: | 0.984 to 2.008 inch, 25 to 51 mm |
| Hose Reinforcement Material: | Multiple Plies of High Temperature Textile with Wire Helix |
| Package Type: | Coil |
| Outside Diameter: | 1.4 to 2.5 inch, 35 to 64 mm |
| Size: | -10 to -20 |
| Hose Inner Tube Material: | Black, Silicone |
| Cover Color: | Red |
| Minimum Operating Temperature: | -76 °F, -60 °C |
| Maximum Operating Temperature: | 392 °F, 200 °C |
| Weight: | 0.30 to 0.88 lb/ft, 0.52 to 1.31 kg/m |
| Minimum Bend Radius: | 1.2 to 5.9 inch, 30.2 to 150.1 mm |
| Minimum Burst Pressure: | 225 psi, 15.5 bar |
| Design Factor: | 3:1 |
Additional information
| Part Number | 6621-1000025, 6621-1250025, 6621-2000025 |
|---|
