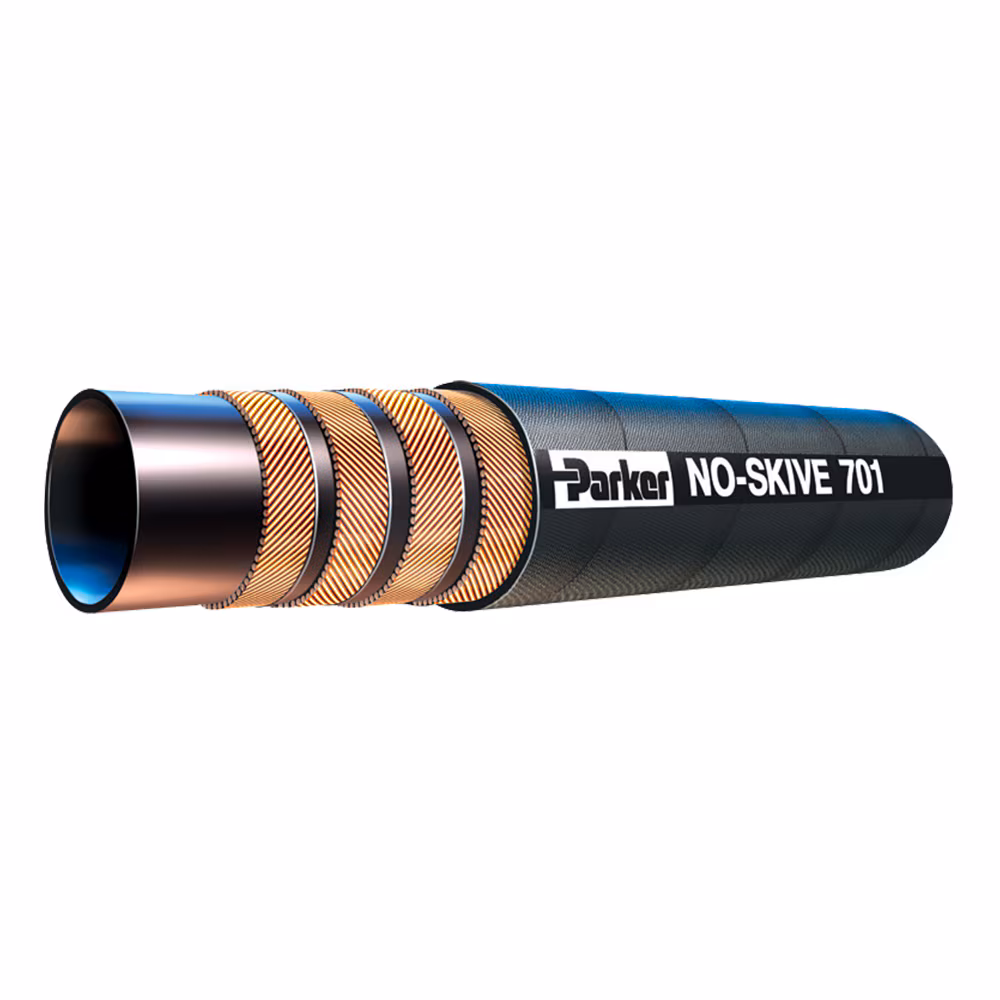

701
Certification: EN 856, Type 4SP, ISO 3862, Type 4SP
Description
Technical Specifications
| Weight: | 0.52 to 1.37 lb/ft, 0.78 to 2.04 kg/m |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Hose Inner Tube Material: | Synthetic Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Pressure: | 280 to 450 bar, 4000 to 6500 psi, 28.0 to 45.0 MPa |
| Product Type: | Hydraulic Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Synthetic Rubber, Synthetic Rubber High Abrasion Resistant, MSHA approved |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | Rubber |
| Product Style: | No-Skive Multispiral, No-Skive Multispiral Tough Cover |
| Minimum Bend Radius: | 180 to 340 mm, 7.087 to 13.386 inch |
| Specifications Met: | EN 856, Type 4SP, ISO 3862, Type 4SP |
| Compatible Fitting: | Parkrimp 70 Series |
| Inside Diameter: | 3/8 to 1 inch, 9.5 to 25.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | High Pressure Hydraulics |
| Hose Reinforcement Material: | 4 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.842 to 1.563 inch, 21.4 to 39.7 mm |
| Media: | Air, Air (General Industrial Air), Coolants (Glycol, Coolants (Glycol), Petroleum Hydraulic Fluids |
Additional information
| Part Number | 701-6, 701-8, 701-10, 701-12, 701-16 |
|---|
