7092/7093 Factory Assemblies
Certification: N/A
Description

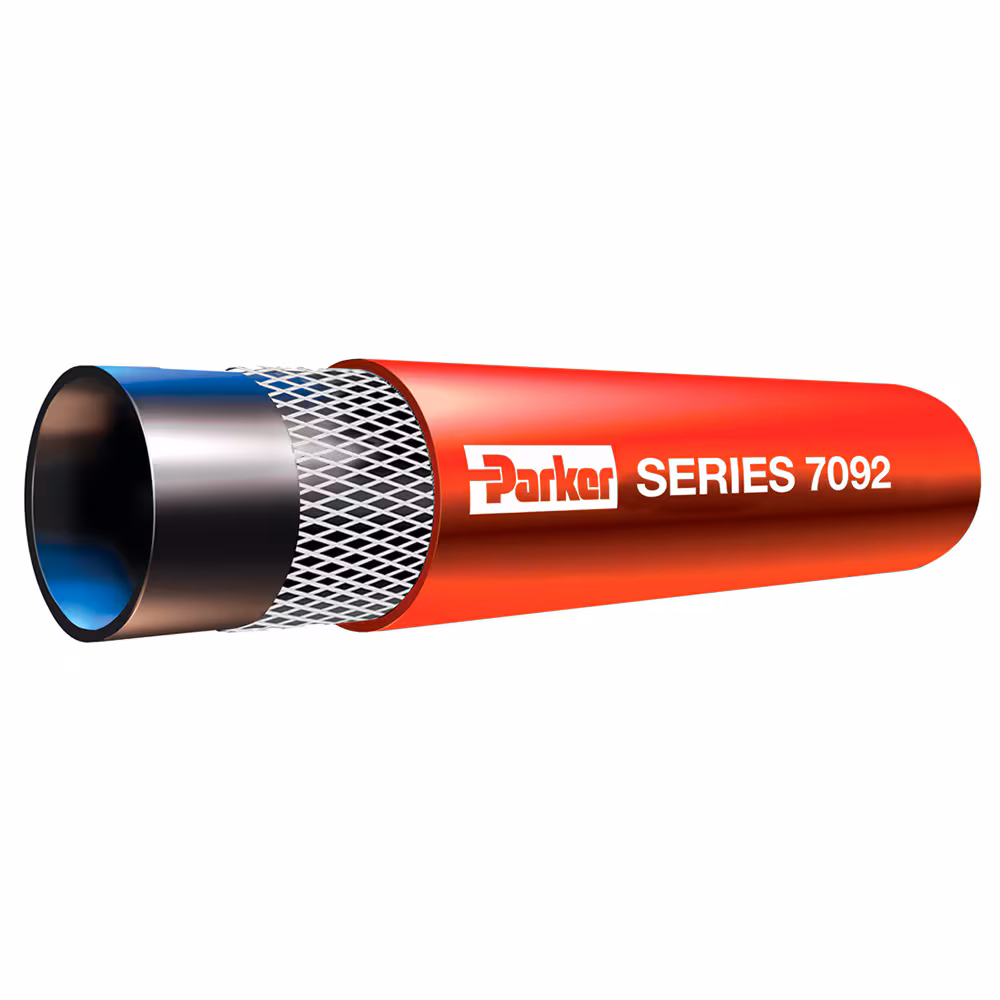

GST II Air Hose Factory Assemblies are designed for transfer of air for shop use and to power pneumatic tools to 212°F and 300 psi, Series 7092/7093
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Media: | Air (Compressed Air with traces of Oil) |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 200 to 300 psi, 1.4 to 2.1 MPa |
| Connection 2 Type: | Male NPTF, Male |
| Weight: | 1.1 to 3.8 kg/ea, 3.1 to 8.3 lb/ea, 2.5 to 8.3 lb/ea |
| Outside Diameter: | 0.550 to 0.656 inch, 14.0 to 16.7 mm |
| Minimum Bend Radius: | 63.5 to 101.6 mm, 2.5 to 3.3 inch |
| Nominal Hose Inside Diameter: | 8 to 10 mm |
| Length: | 25 to 50 ft, 7.62 to 15.24 m |
| Connection 1 Type: | Male NPTF, Male |
| Inside Diameter: | 1/4 to 3/8 inch, 6.4 to 9.5 mm |
| Connection 2 Size: | 1/4 inch |
| Application: | Air, Multipurpose |
| Quantity per Box: | 5 to 10 |
| Connection 1 Size: | 1/4 inch |
| Hose Reinforcement Material: | Mutiple Plies of Textile |
| Package Type: | Carton |
| Size: | -4 to -6 |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Fitting Material: | Brass |
| Cover Color: | Black, Red |
Additional information
| Part Number | 7092253-KAA, 7092253-KAB, 7092382-KAC, 7092383-KAA, 7092383-KAB, 7093383-KAA |
|---|
