7102
N/A
Description

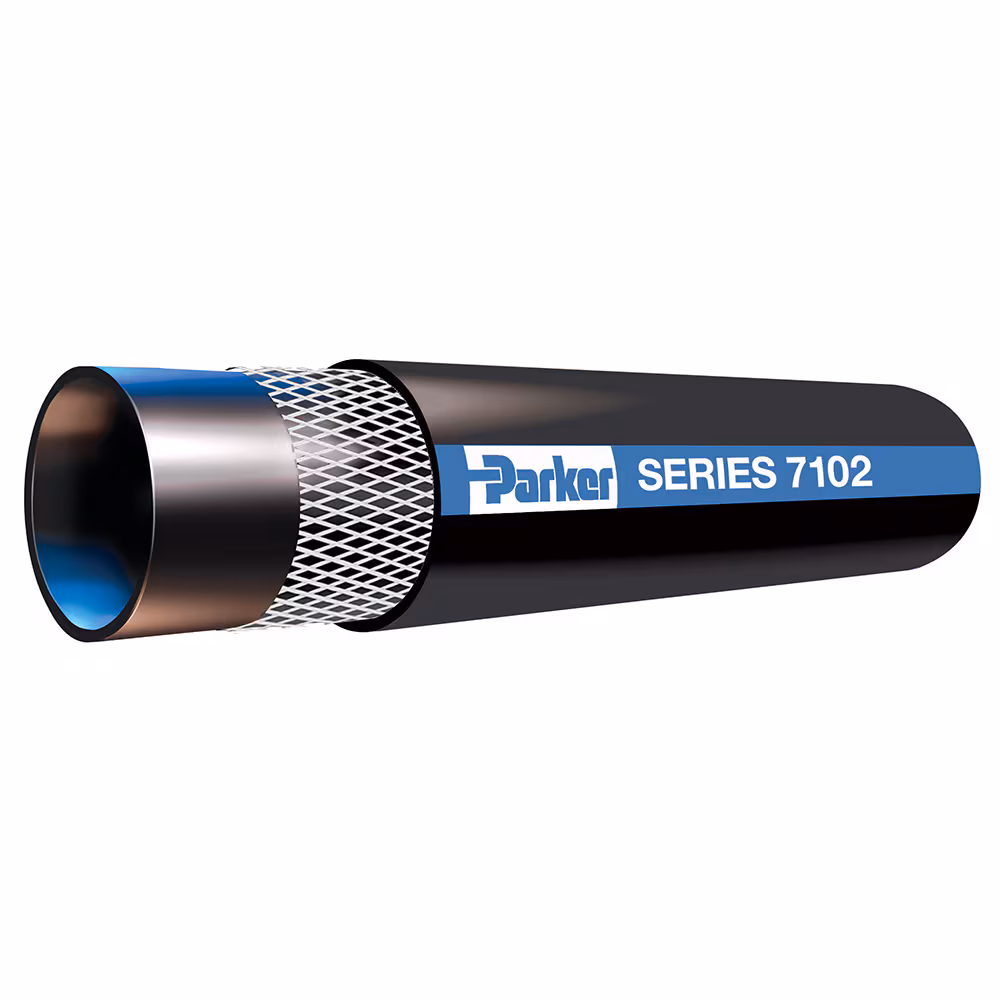

Arctic Edge Low Temperature Oil Resistant Multipurpose Rubber Hose is designed to transfer air, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to -70°F and 300 psi, Series 7102
Technical Specifications
| Cover Material: | Chloroprene Rubber (CR) |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 2.1 MPa, 300 psi, 20.7 bar |
| Compatible Fitting: | 43 Series, 7661 Series, HY Series |
| Nominal Hose Inside Diameter: | DN10 to 40 |
| Inside Diameter: | 3/8 to 1-3/8 inch, 9.5 to 34.9 mm |
| Application: | Air, Multipurpose |
| Size: | -6 to -24 |
| Outside Diameter: | 19.1 to 48.9 mm, 0.80 to 1.90 inch |
| Hose Reinforcement Material: | 4 Plies of Textile with Static Wire |
| Package Type: | Reel |
| Minimum Bend Radius: | 4 to 10 inch, 96.5 to 241 mm |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Minimum Operating Temperature: | -70 °F, -57 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Weight: | 0.21 to 0.89 lb/ft, 0.31 to 1.33 kg/m |
| Length per Package: | 200 to 650 ft |
Additional information
| Part Number | 7102-38304, 7102-50304, 7102-75304, 7102-100304, 7102-125304 |
|---|
