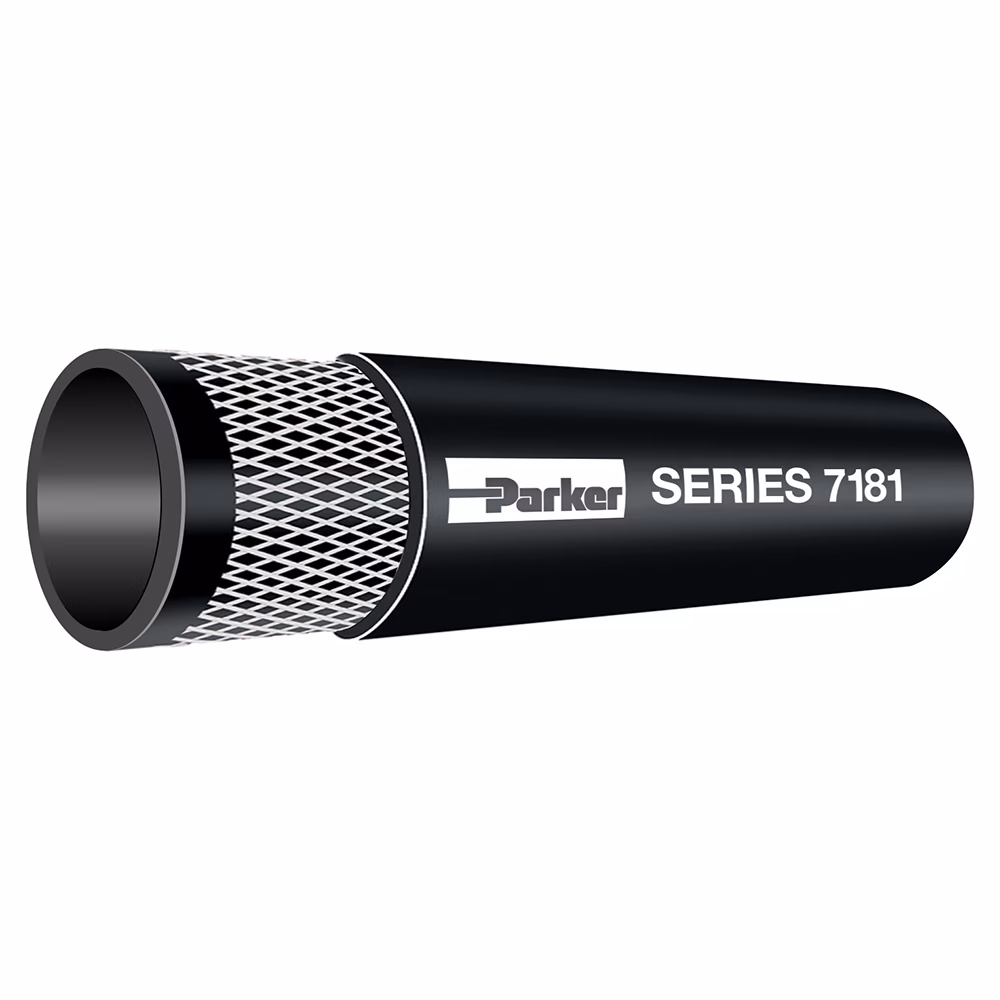

7181
SAE J20R3 EC Class D-2
Description
Heavy Duty Heater Hose is designed for use in heater and radiator systems in vehicles and industrial equipment in applications to 257°F and 65 psi, Series 7181
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Maximum Operating Temperature: | 125 °C, 257 °F |
| Media: | Coolants |
| Application: | Engine |
| Compatible Fitting: | HY Series |
| Maximum Operating Pressure: | 0.3 to 0.5 MPa, 45 to 65 psi, 3.1 to 4.5 bar |
| Nominal Hose Inside Diameter: | 8 to 25 mm |
| Inside Diameter: | 6.4 to 25.4 mm, 1/4 to 1 inch |
| Package Type: | Reel, Carton |
| Outside Diameter: | 13.4 to 34.0 mm, 0.526 to 1.339 inch |
| Size: | -4 to -16 |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Minimum Bend Radius: | 2.5 to 12 inch, 63.5 to 304.8 mm |
| Cover Color: | Black |
| Weight: | 0.10 to 0.37 lb/ft, 0.15 to 0.55 kg/m |
Additional information
| Part Number | 7181-251, 7181-381, 7181-501, 7181-631, 7181-631050, 7181-751, 7181-1001 |
|---|
