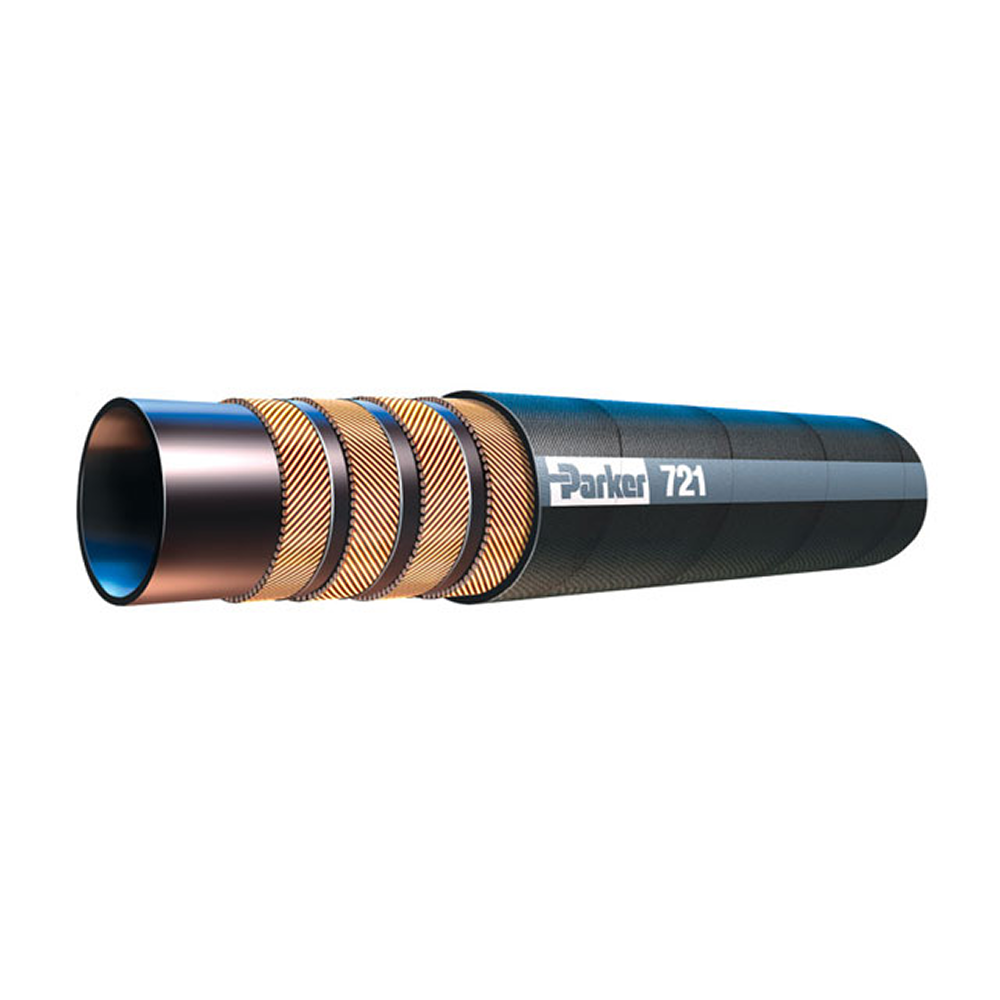

721/721TC/721ST
Certification: EN 856, Type R12, ISO 3862, Type R12, SAE 100R12
Description
Technical Specifications
| Weight: | 0.60 to 4.09 kg/m, 0.40 to 2.75 lb/ft |
| Maximum Operating Temperature: | 125 °C, 257 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | EN 856, Type R12, ISO 3862, Type R12, SAE 100R12 |
| Inside Diameter: | 3/8 to 2 inch, 10 to 51 mm |
| Maximum Operating Pressure: | 17.5 to 28.0 MPa, 2500 to 4000 psi |
| Minimum Bend Radius: | 2-1/2 to 12-1/2 inch, 62.5 to 320 mm |
| Outside Diameter: | 0.80 to 2.59 inch, 20 to 66 mm |
| Application: | Construction Equipment, Hydraulics, Material Handling, Oilfield |
Additional information
| Part Number | 721-10, 721-12, 721-16, 721-20, 721-24, 721-32, 721-6, 721-8 |
|---|
