Description

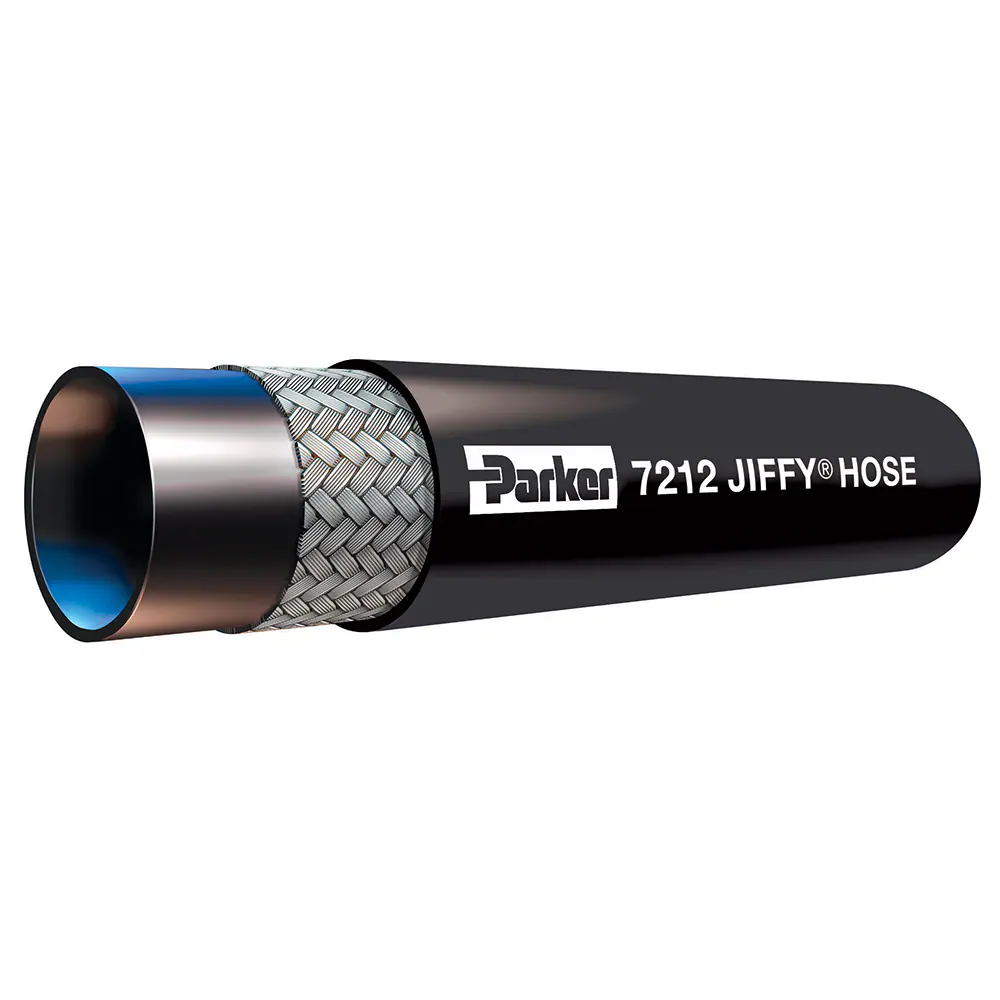

Jiffy Push-On/Push Lock Oil Resistant Multipurpose Rubber Hose is designed to transfer air, mild chemicals, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 212°F and 300 psi, Series 7212.

Technical Specifications

Cover Material: Chloroprene Rubber (CR)
Minimum Operating Temperature: -40 °C, -40 °F
Vacuum Pressure Rating: 15 to 28 inch-Hg, 381 to 711 mm-Hg, 15 to 28
Cover Color: Black, Blue, Gray, Green, Red, Yellow
Maximum Operating Pressure: 2.1 MPa, 300 psi, 20.7 bar
Media: Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water
Compatible Fitting: HY Series
Inside Diameter: 1/4 to 3/4 inch, 6.4 to 19.1 mm
Nominal Hose Inside Diameter: 8 to 20 mm
Application: Air, Multipurpose
Outside Diameter: 0.494 to 1.091 inch, 12.5 to 27.7 mm
Hose Reinforcement Material: 1 Braid of Textile
Package Type: Reel
Size: -4 to -12
Hose Inner Tube Material: Black, Nitrile
Cover Structure: Smooth
Maximum Operating Temperature: 212 °F, 100 °C
Weight: 0.09 to 0.30 lb/ft, 0.13 to 0.45 kg/m
Minimum Bend Radius: 3 to 7 inch, 76.2 to 177.8 mm
Design Factor: 4:1

Additional information

Part Number

7212-251XX, 7212-381XX, 7212-501XX, 7212-631XX, 7212-750XX
