801TM

Certification: UL 94V-0 flame-resistant cover

View PDF     View Fittings

Category:

Description

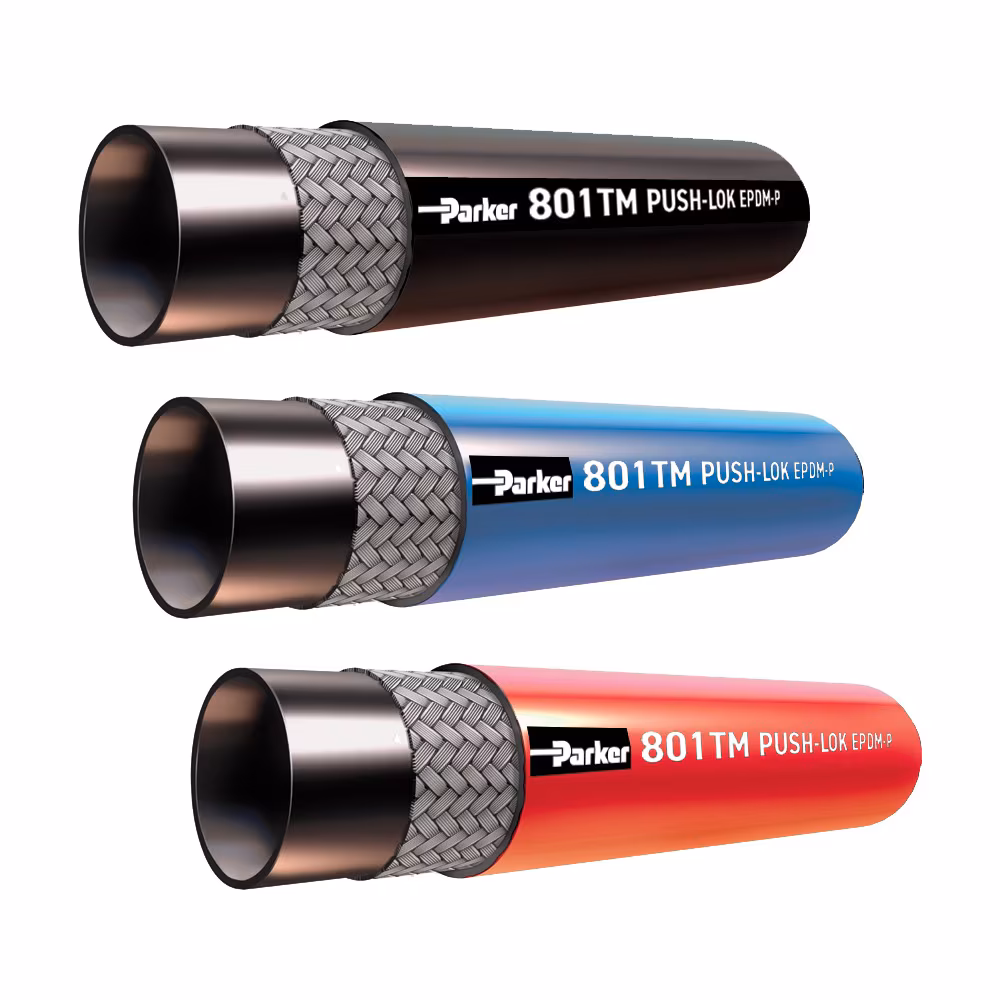

Parker’s Push-Lok 801TM is a highly flexible and compact hose that provides fire retardancy according to UL Standards and a working pressure of up to 1.6 MPa. It is ideal for thermal management applications like data center or battery liquid cooling.

Technical Specifications

Weight: 0.11 to 0.62 kg/m, 0.07 to 0.42 lb/ft
Industry: Thermal Management
Inside Diameter: 1/4 to 1 inch, 6.4 to 25.4 mm
Cover Color: Black
Hose Inner Tube Material: Peroxide cured EPDM
Brand: Parker
Maximum Operating Temperature: 212 °F (Air 158°F), 100 °C (Air 70°C)
Media: Air (General Industrial Air), Coolants (Water-Glycol)
Minimum Operating Temperature: -40 °F, -40 °C
Maximum Operating Pressure: 1.6 MPa, 16 bar, 235 psi
Compatible Fitting: 82 Series
Application: Liquid cooling, Data center
Product Type: Push-Lok and Push-on Hoses
Technology: Fluid & Gas Handling
Design Factor: 4:1
Hose Reinforcement Material: One fibre braid
Vacuum Pressure Rating: 51 to 95 kPa
Division: Polymer Hose Division Europe
Materials of Construction: Rubber
Minimum Bend Radius: 1.181 to 7.087 inch, 30 to 180 mm
Outside Diameter: 0.508 to 1.299 inch, 12.9 to 33.0 mm
Specifications Met: UL 94V-0 flame-resistant cover

Additional information

Part Number

801TM-4-RED-RL, 801TM-6-RED-RL, 801TM-8-RED-RL, 801TM-10-RED-RL, 801TM-12-RED-RL, 801TM-16-RED-RL
801TM-4-BLU-RL, 801TM-6-BLU-RL, 801TM-8-BLU-RL, 801TM-10-BLU-RL, 801TM-12-BLU-RL, 801TM-16-BLU-RL
801TM-4-BLK-RL, 801TM-6-BLK-RL, 801TM-8-BLK-RL, 801TM-10-BLK-RL, 801TM-12-BLK-RL, 801TM-16-BLK-RL
