7251
MSHA
Description

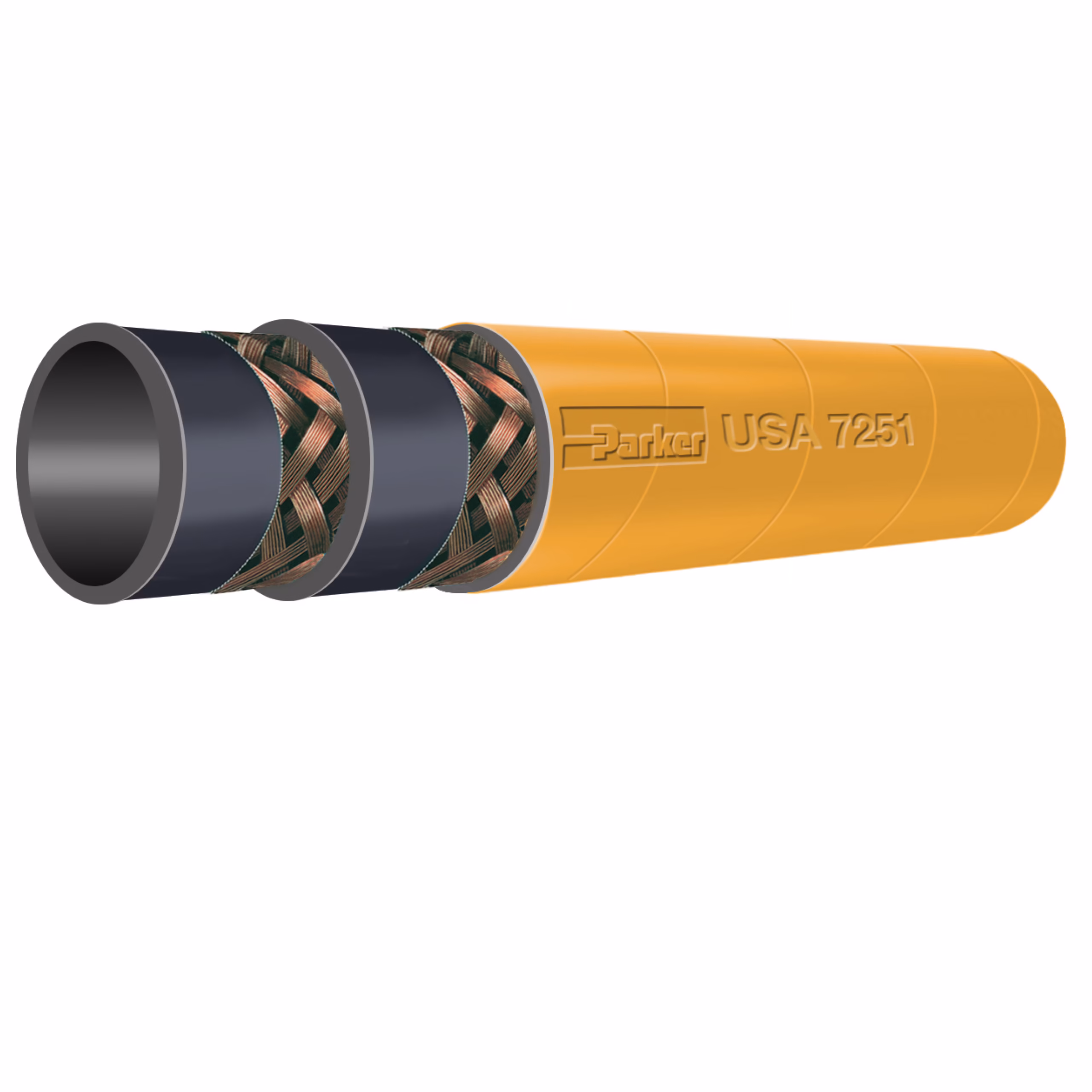

Thoro-Braid Medium Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in heavy duty applications to 212°F and 600 psi, Series 7251
Technical Specifications
| Cover Material: | Nitrile/PVC |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Compatible Fitting: | 43 Series, 71 Series, WC Series |
| Weight: | 0.17 to 0.50 kg/m, 1.2 to 3.6 lb/ft, 1.22 to 3.63 lb, 0.55 to 1.65 kg |
| Maximum Operating Pressure: | 2.8 to 4.1 MPa, 400 to 600 psi, 27.6 to 41.4 bar |
| Nominal Hose Inside Diameter: | 40 to 100 mm |
| Inside Diameter: | 1-1/2 to 4 inch, 38.1 to 101.6 mm |
| Application: | Air, Multipurpose |
| Cover Structure: | Perforated, Wrapped |
| Hose Reinforcement Material: | 1 or 2 Braids of Wire |
| Size: | -24 to -64 |
| Minimum Bend Radius: | 508 to 1219.2 mm, 20 to 48 inch |
| Package Type: | Carton |
| Outside Diameter: | 52.4 to 118.3 mm, 2.062 to 4.656 inch |
| Hose Inner Tube Material: | Black, Chloroprene |
| Cover Color: | Yellow |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Length per Package: | 150 ft |
Additional information
| Part Number | 7251-1501K, 7251-2002K, 7251-2502K, 7251-3002K, 7251-4002K |
|---|
