7262
ARPM IP-14
Description

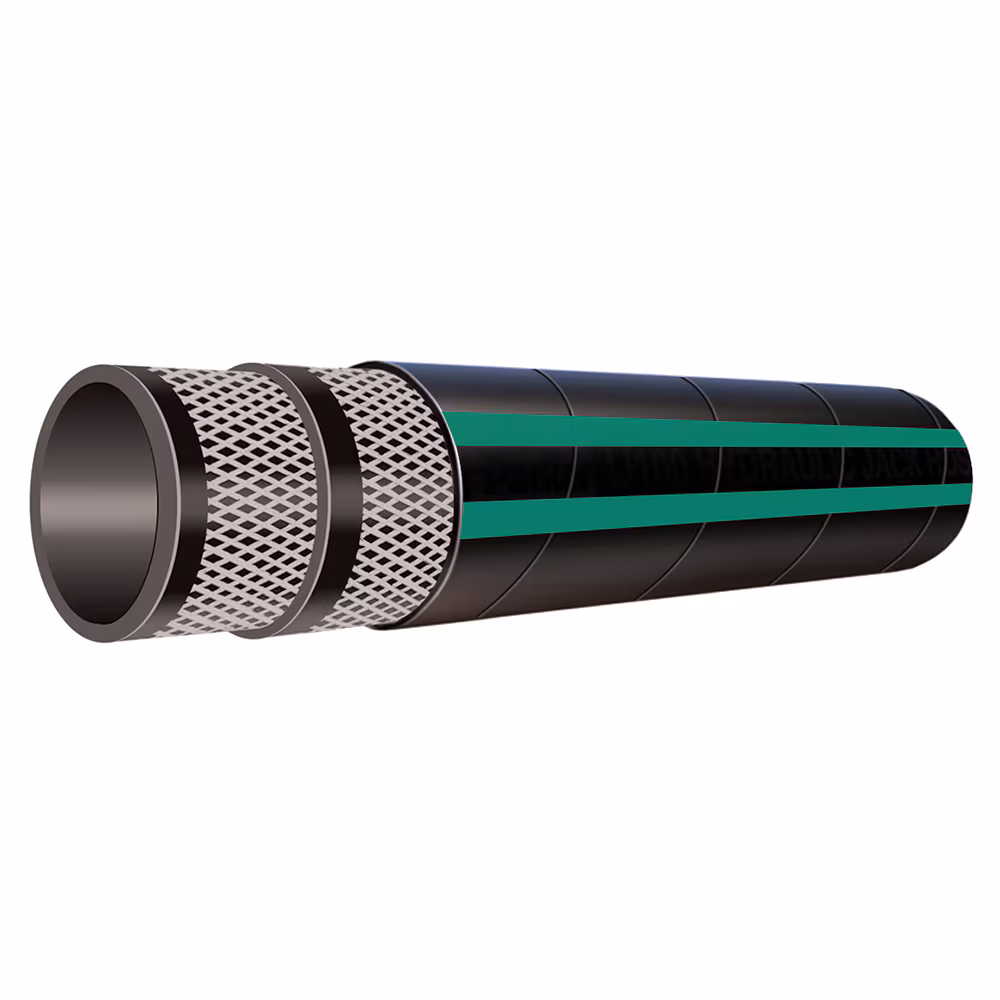

Series 7262 is a lightweight anhydrous ammonia transfer hose. The hose construction features corrosion resistant high tensile nylon braids. The perforated cover is resistant to abrasion and the dual green stripes provide color-coded identification.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Cover Color: | Black |
| Application: | Chemical Transfer |
| Maximum Operating Pressure: | 2.4 MPa, 350 psi, 24.1 bar |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Nominal Hose Inside Diameter: | 15 to 50 mm |
| Specifications Met: | ARPM IP-14 |
| Inside Diameter: | 1/2 to 2 inch, 12.7 to 50.8 mm |
| Cover Structure: | Perforated, Wrapped |
| Outside Diameter: | 24.1 to 69.9 mm, 0.950 to 2.750 inch |
| Hose Reinforcement Material: | 2 or 3 Braids of Textile |
| Size: | -8 to -32 |
| Package Type: | Coil |
| Minimum Bend Radius: | 127 to 406.4 mm, 5 to 16 inch |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Weight: | 0.25 to 1.4 lb/ft, 0.37 to 2.08 kg/m |
| Length per Package: | 50 ft |
Additional information
| Part Number | 7262-502, 7262-752, 7262-1002, 7262-1252, 7262-1502K, 7262-2003K |
|---|
