7285
Certification: ISO 6134, Type 2
Description

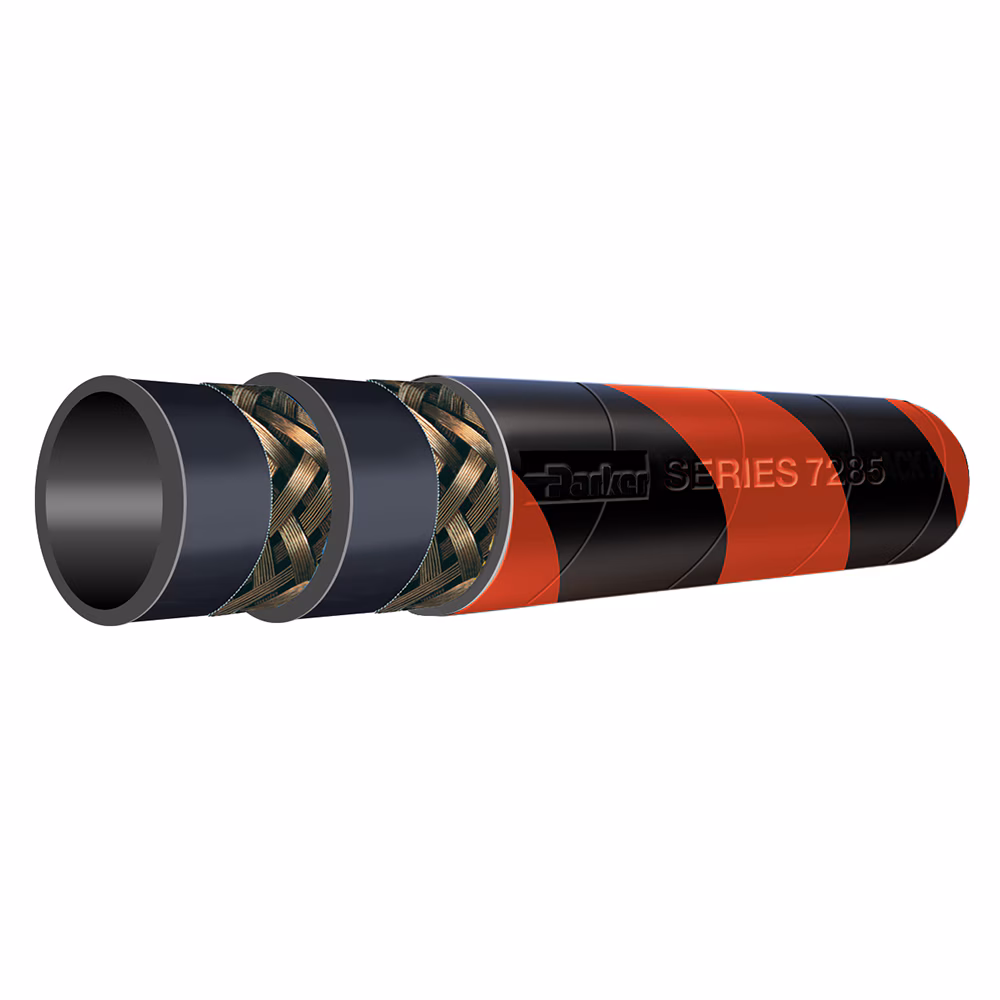

Dragon Breath® II Barber Pole Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7285
Technical Specifications
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Cover Color: | Black & Red |
| Weight: | 0.50 to 0.81 lb/ft, 0.07 to 0.11 kg/m, 0.23 to 0.37 kg/ft |
| Specifications Met: | ISO 6134, Type 2 |
| Compatible Fitting: | 70 Series, CS Series |
| Minimum Bend Radius: | 7 to 12 inch, 177.8 to 304.8 mm |
| Size: | -8 to -16 |
| Nominal Hose Inside Diameter: | 15 to 25 mm |
| Inside Diameter: | 12.7 to 25.4 mm, 1/2 to 1 inch |
| Minimum Operating Temperature: | -29 °C (Saturated Steam), -29 °C (Superheated Steam), -20 °F (Saturated Steam), -20 °F (Superheated Steam) |
| Maximum Operating Temperature: | 232 °C (Superheated Steam), 207 °C (Saturated Steam), 406 °F (Saturated Steam), 450 °F (Superheated Steam) |
| Maximum Operating Pressure: | 17.2 bar (Superheated Steam), 18 bar (Saturated Steam), 1.7 MPa (Superheated Steam), 1.8 MPa (Saturated Steam), 250 psi (Superheated Steam), 261 psi (Saturated Steam) |
| Cover Structure: | Wrapped, Perforated |
| Application: | Industrial, Manufacturing |
| Outside Diameter: | 26.2 to 39.3 mm, 1.031 to 1.546 inch |
| Hose Reinforcement Material: | 2 Braids of Wire |
| Hose Inner Tube Material: | Black, Chlorobutyl |
| Base number: | 7285 |
Additional information
| Part Number | 7285-502, 7285-752, 7285-1002 |
|---|
