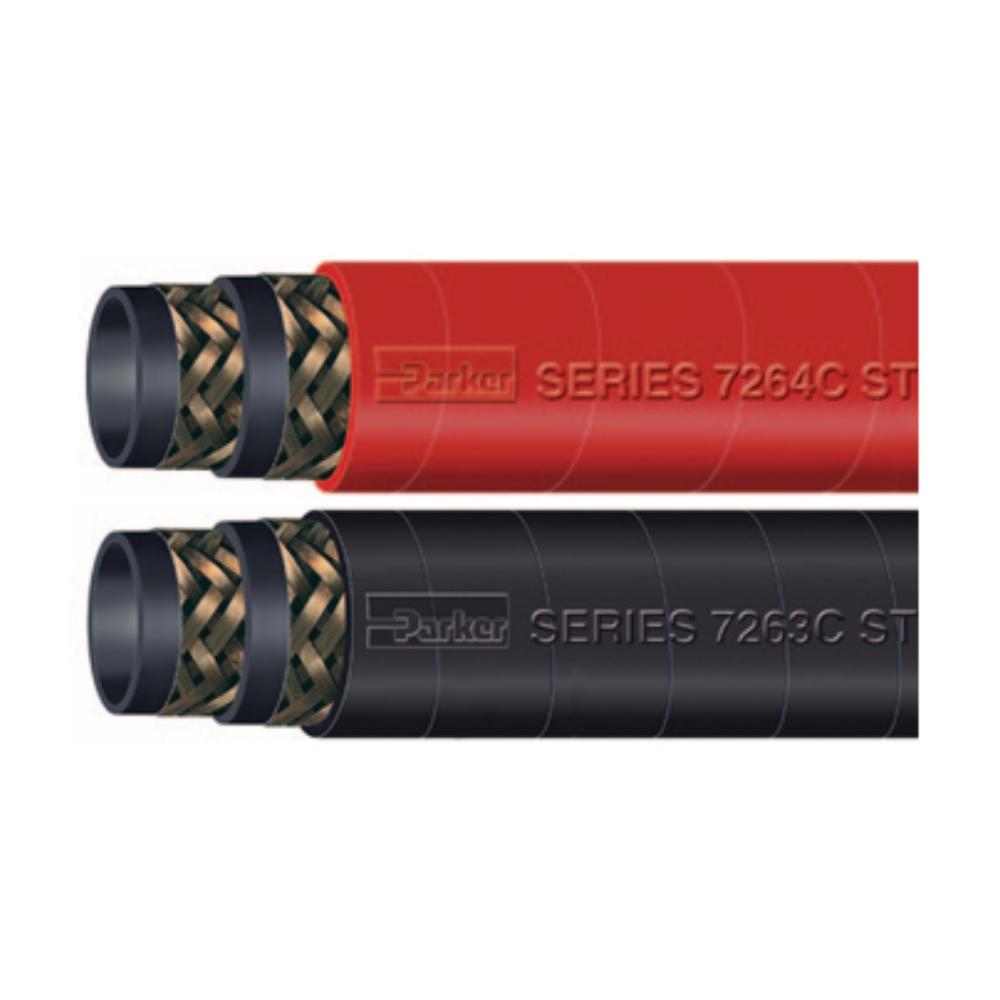

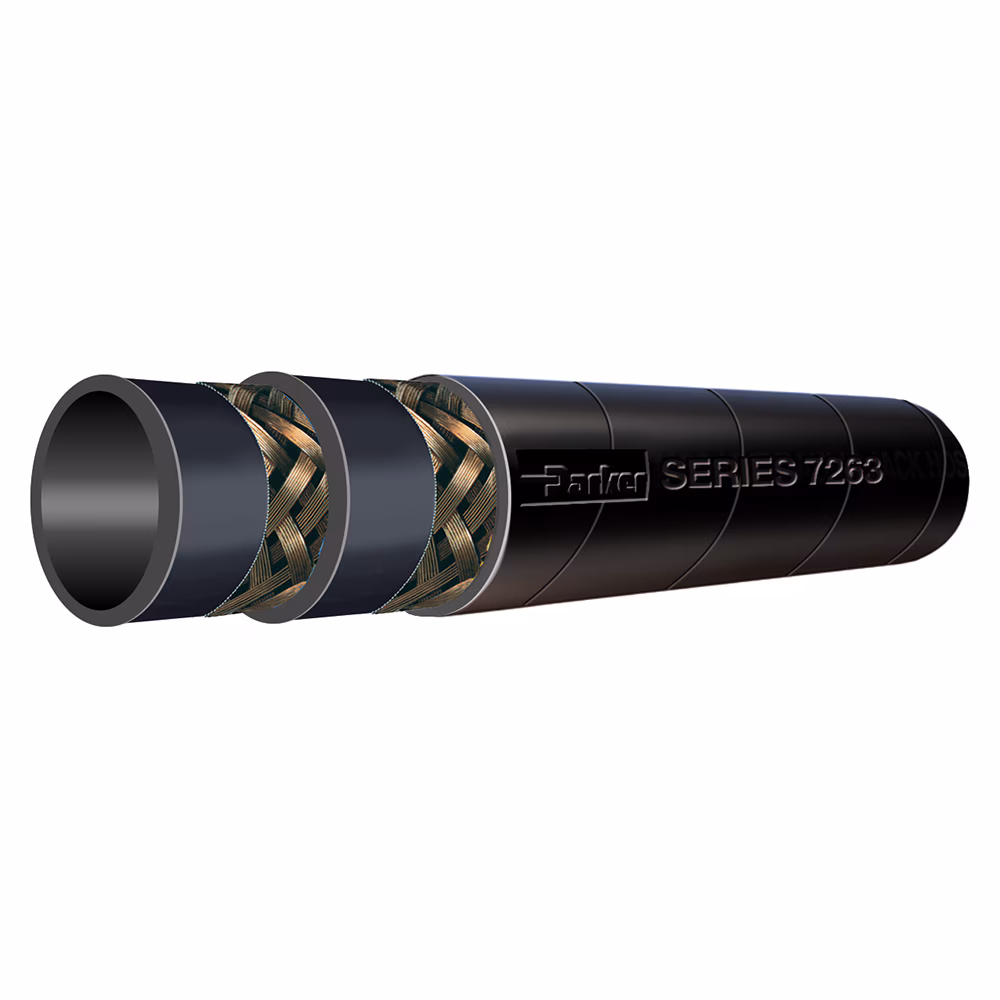

7263C/7264C
ISO 6134, Type 2
Description
Steam-Lance® 250 Compact Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Cover Color: | Black, Red |
| Specifications Met: | ISO 6134, Type 2 |
| Inside Diameter: | 1/2 to 1 inch, 12.7 to 25.4 mm |
| Maximum Operating Temperature: | 208 °C (Saturated Steam), 232 °C (Superheated Steam), 406 °F (Saturated Steam), 450 °F (Superheated Steam) |
| Maximum Operating Pressure: | 17 bar (Superheated Steam), 18 bar (Saturated Steam), 1.7 MPa (Superheated Steam), 1.8 MPa (Saturated Steam), 250 psi (Superheated Steam), 261 psi (Saturated Steam) |
| Application: | Industrial, Manufacturing |
| Hose Reinforcement Material: | Multiple Braids of Wire |
| Outside Diameter: | 0.95 to 1.47 inch, 24.1 to 37.3 mm |
| Size: | -8 to -16 |
| Cover Structure: | Perforated |
| Nominal Hose Inside Diameter: | 15 to 25 mm |
| Weight: | 0.37 to 0.63 lb/ft, 0.55 to 0.94 kg/m |
| Minimum Bend Radius: | 7 to 12 inch, 178 to 305 mm |
Additional information
| Part Number | 7263C-502, 7263C-752, 7263C-1002 |
|---|
