7288
ARPM Class B Cover, ISO 6134, Type 2
Description

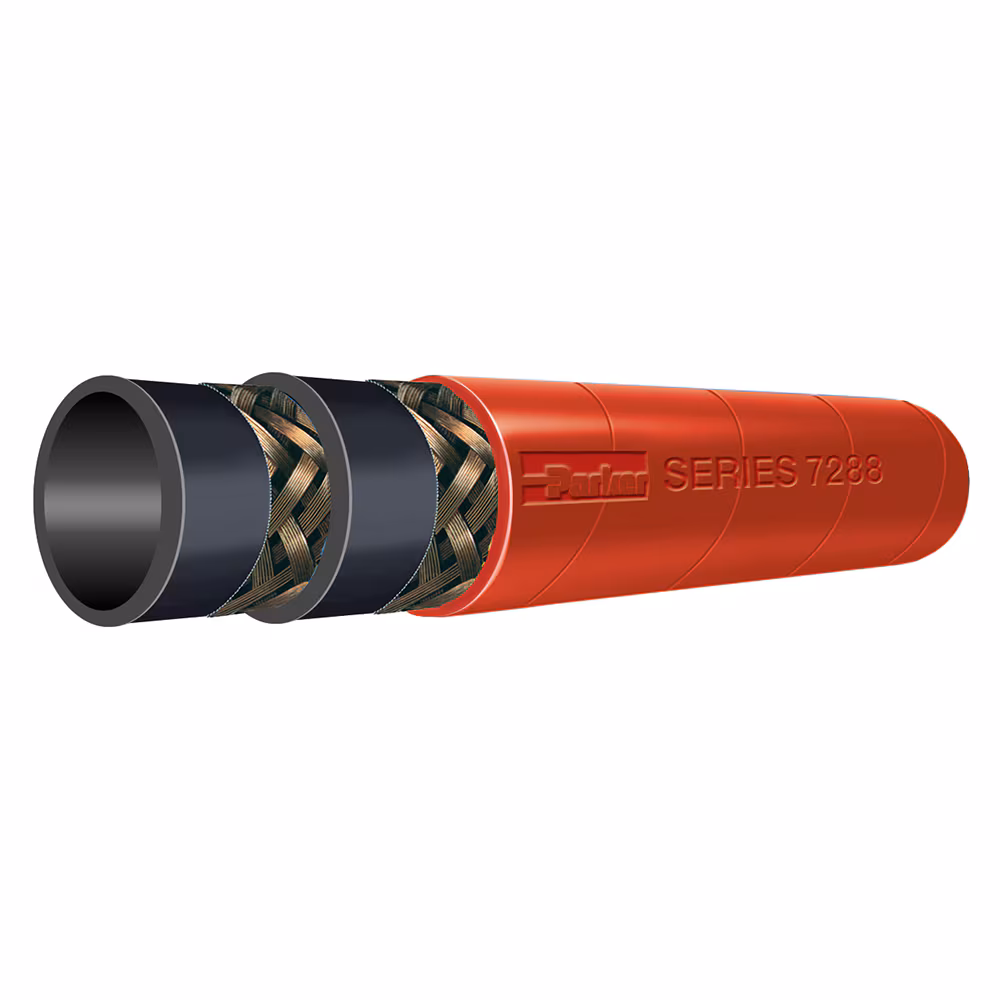

Dragon Breath® 250 Oil Resistant Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7288
Technical Specifications
| Weight: | 0.52 to 0.90 lb, 0.07 to 0.12 kg/m, 0.52 to 0.90 lb/ft, 0.24 to 0.41 kg |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Chloroprene Rubber (CR) (ARPM Class B Oil Resistance) |
| Specifications Met: | ARPM Class B Cover, ISO 6134, Type 2 |
| Inside Diameter: | 1/2 to 1 inch, 12.7 to 25.4 mm |
| Maximum Operating Temperature: | 207 °C (Saturated Steam), 232 °C (Superheated Steam), 406 °F (Saturated Steam), 450 °F (Superheated Steam) |
| Maximum Operating Pressure: | 17.2 bar (Superheated Steam), 18 bar (Saturated Steam), 1.7 MPa (Superheated Steam), 1.8 MPa (Saturated Steam), 250 psi (Superheated Steam), 261 psi (Saturated Steam) |
| Application: | Industrial, Manufacturing |
| Nominal Hose Inside Diameter: | 15 to 25 mm |
| Cover Structure: | Perforated, Wrapped |
| Hose Reinforcement Material: | 2 Braids of Wire |
| Size: | -8 to -16 |
| Package Type: | Carton, Reel |
| Minimum Bend Radius: | 7 to 12 inch, 177.8 to 304.8 mm |
| Outside Diameter: | 26.2 to 40.5 mm, 1.031 to 1.594 inch |
| Cover Color: | Red (ARPM Class B Oil Resistance) |
| Minimum Operating Temperature: | -20 °F, -29 °C |
Additional information
| Part Number | 7288-502, 7288-752 |
|---|
