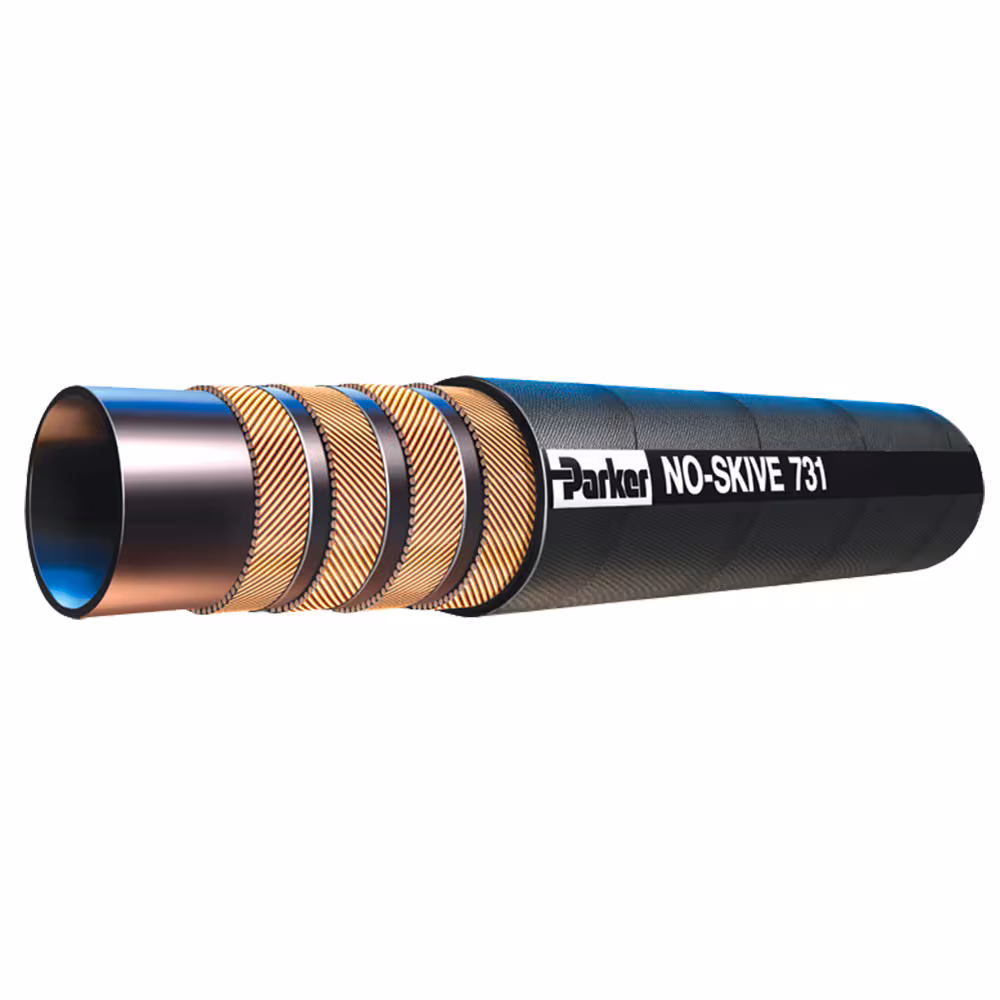

731
Certification: EN 856, Type 4SH, ISO 3862, Type 4SH
Description
Technical Specifications
| Weight: | 1.16 to 3.56 lb/ft, 1.72 to 5.30 kg/m |
| Industry: | Off-road Machinery |
| Hose Inner Tube Material: | Synthetic Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Pressure: | 250 to 420 bar, 25.0 to 42.0 MPa, 3600 to 6000 psi |
| Product Type: | Hydraulic Hose |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | No-Skive Multispiral |
| Minimum Bend Radius: | 11.024 to 27.559 inch, 280 to 700 mm |
| Materials of Construction: | Rubber |
| Specifications Met: | EN 856, Type 4SH, ISO 3862, Type 4SH |
| Compatible Fitting: | Parkrimp 73 Series |
| Inside Diameter: | 3/4 to 2 inch, 19.1 to 50.8 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | High Pressure Hydraulics |
| Hose Reinforcement Material: | 4 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 1.260 to 2.677 inch, 32 to 68 mm |
| Media: | Air (General Industrial Air), Coolants (Glycol, Coolants (Glycol), Fuels – Check fuel type with our catalogue chart. |
| Cover Material: | Synthetic Rubber, Synthetic Rubber High Abrasion Resistant, MSHA approved |
Additional information
| Part Number | 731-12, 731-16, 731-20, 731-24, 731-32 |
|---|
