7311N/7311NXT
N/A
Description

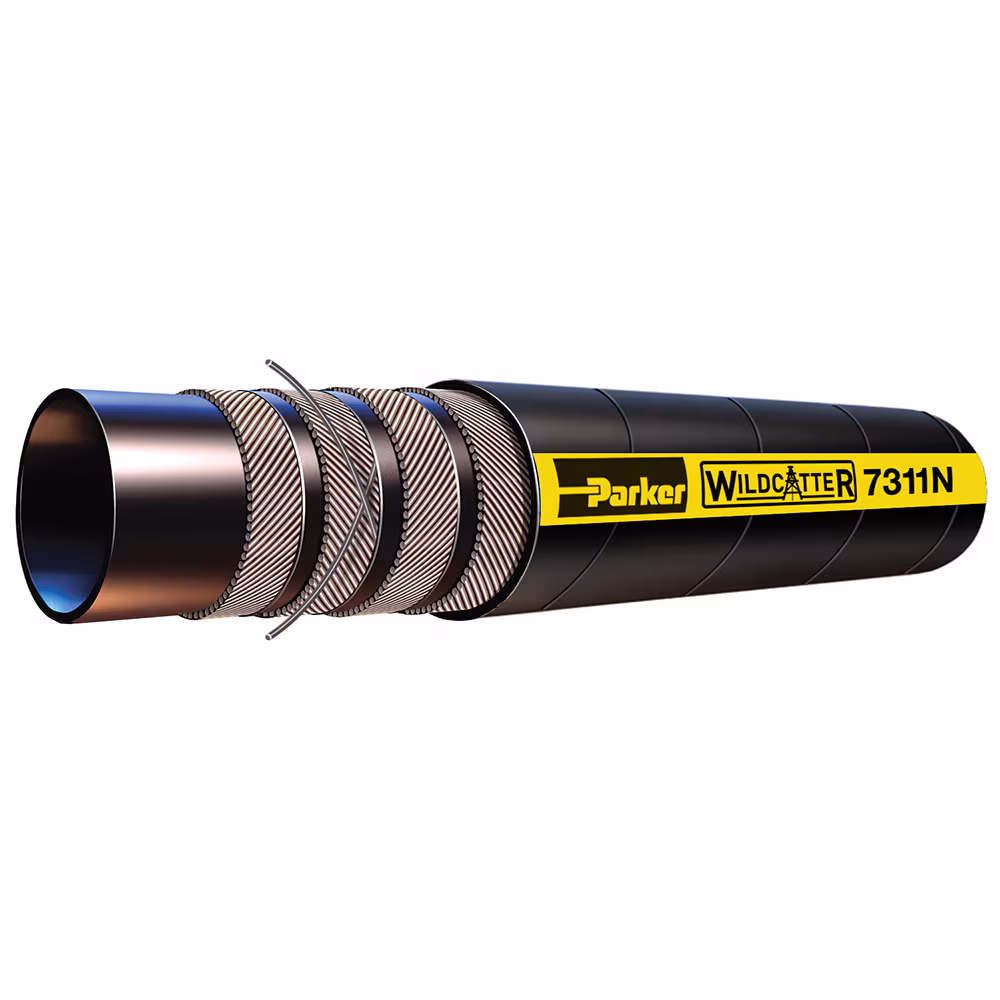

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Color: | Black |
| Cover Material: | Nitrile Blend |
| Application: | Oilfield |
| Weight: | 0.76 to 5.21 lb/ft, 1.13 to 7.75 kg/m, 0.34 to 2.36 kg/ft |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 2.8 MPa, 400 psi, 27.6 bar |
| Nominal Hose Inside Diameter: | 40 to 150 mm |
| Inside Diameter: | 1-1/2 to 6 inch, 38.1 to 152.4 mm |
| Design Factor: | 4:1 |
| Outside Diameter: | 50.8 to 177.8 mm, 2.0 to 7.0 inch |
| Hose Reinforcement Material: | 4 Plies of Textile with Dual Static Wires (-6000: 6 Plies of Textile) |
| Size: | -32 to -72 |
| Package Type: | Coil |
| Vacuum Pressure Rating: | n/a |
| Minimum Bend Radius: | n/a |
| Hose Inner Tube Material: | Black, Nitrile |
| Maximum Operating Temperature: | 200 °F, 93 °C |
| Length per Package: | 100 ft |
Additional information
| Part Number | 7311N-1500, 7311N-2000, 7311N-3000, 7311N-4000, 7311N-6000 |
|---|
