7542
MSHA
Description

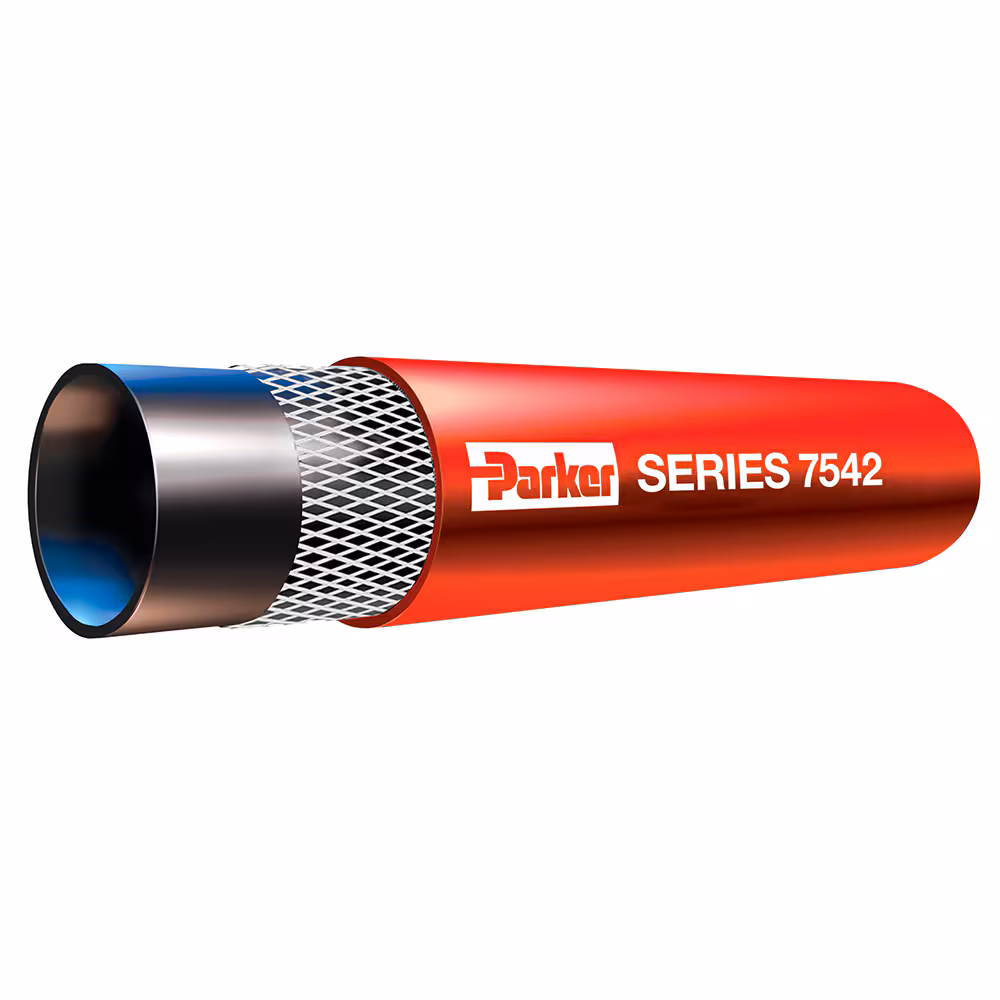

Gully Washer PVC Medium Duty Lay Flat Water Discharge Hose is designed for water transfer in applications to 140°F and 150 psi, Series 7542
Technical Specifications
| Cover Material: | PVC |
| Hose Inner Tube Material: | Nitrile/PVC, Red |
| Inside Diameter: | 1-1/2 to 8 inch, 38.1 to 203.2 mm |
| Weight: | 0.23 to 0.51 lb/ft, 0.34 to 2.25 kg/m |
| Maximum Operating Pressure: | 100 to 150 psi, 6.9 to 19.3 bar, 0.7 to 1.0 MPa |
| Application: | Water |
| Nominal Hose Inside Diameter: | 40 to 200 mm |
| Hose Reinforcement Material: | 3 Plies of Textile |
| Outside Diameter: | 42.1 to 209.3 mm, 1.658 to 8.240 inch |
| Minimum Bend Radius: | n/a |
| Size: | -24 to -128 |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Maximum Operating Temperature: | 140 °F, 60 °C |
| Length per Package: | 300 ft |
| Cover Color: | Red |
Additional information
| Part Number | 7542-1501, 7542-2001, 7542-2501, 7542-3001, 7542-4001, 7542-6001 |
|---|
