7705
N/A
Description

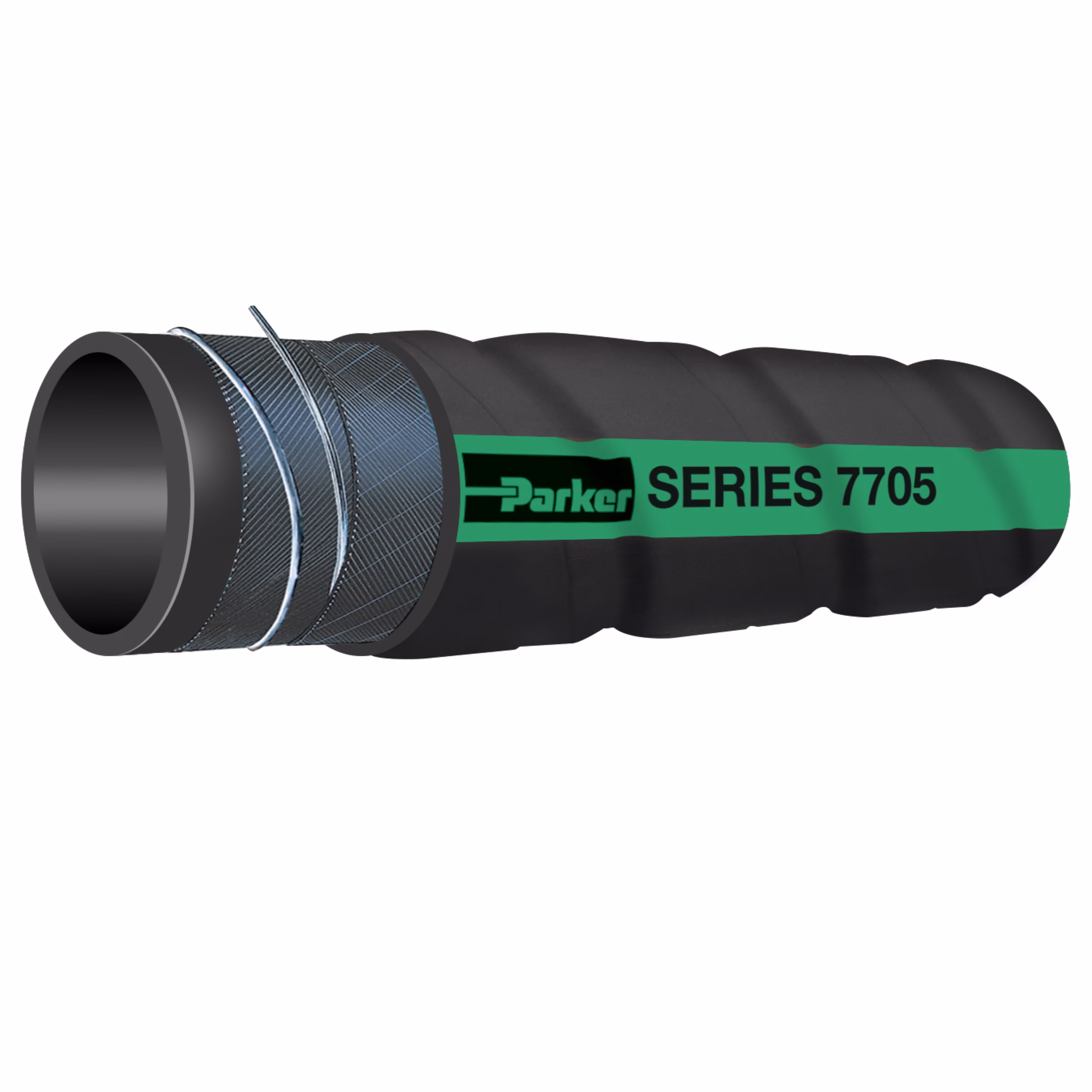

Green Label Corrugated Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of biodiesel, oil and refined fuels in applications to 180°F and 200 psi, Series 7705
Technical Specifications
| Cover Material: | Nitrile/PVC |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Application: | Fuel Transfer |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 1.0 to 1.4 MPa, 150 to 200 psi, 10.3 to 13.8 bar |
| Nominal Hose Inside Diameter: | 25 to 100 mm |
| Compatible Fitting: | 43 Series |
| Inside Diameter: | 1 to 4 inch, 25.4 to 101.6 mm |
| Cover Structure: | Corrugated, Wrapped |
| Outside Diameter: | 36.5 to 115.0 mm, 1.437 to 4.527 inch |
| Hose Reinforcement Material: | 2 Plies of Textile with Dual Wire Helix |
| Size: | -16 to -64 |
| Package Type: | Coil |
| Minimum Bend Radius: | 2 to 6 inch, 50.8 to 152.4 mm |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Design Factor: | 4:1 |
| Weight: | 0.55 to 2.3 lb/ft, 0.82 to 3.47 kg/m |
| Length per Package: | 100 ft |
Additional information
| Part Number | 7705-1000, 7705-1250, 7705-1500, 7705-2000, 7705-3000, 7705-4000 |
|---|
