78C

Description

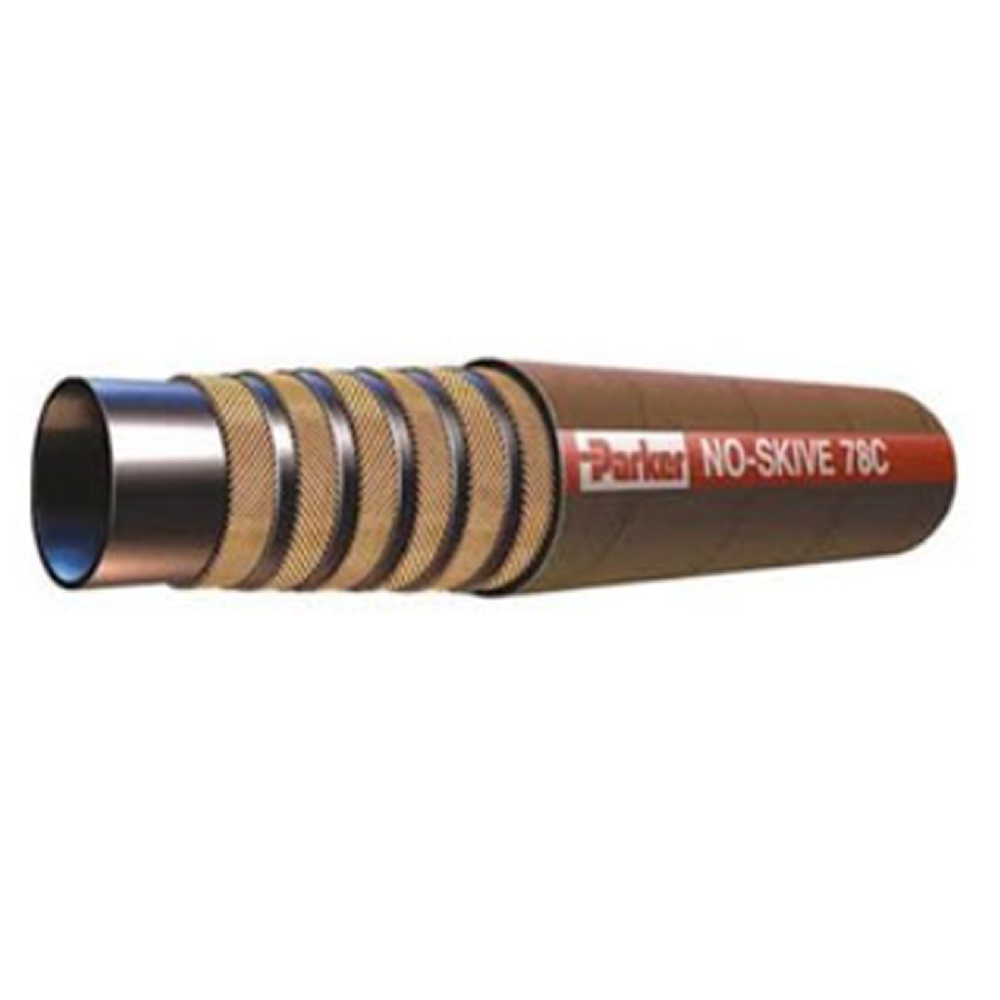

Construction: Synthetic rubber tube; multiple spirals of high tensile steel wire reinforcement; MSHA accepted red synthetic
rubber cover.
Application and Temperature Range:
Petroleum based hydraulic fluids and lubricating oils within a temperature range of -40°F to +257°F (-40°C to +125°C);
Water, water/oil emulsion, and water/glycol hydraulic fluids up to +185°F (+85°C);
Air within a temperature range of -40°F to +158°F (-40°C to +70°C).
For air above 250 psi (1,7 MPa), the cover should be pin-pricked.
Fittings: Parkrimp 78 Series. See Section C for assembly instructions.
Hose cover does not have to be removed to attach Parker No-Skive fittings.
