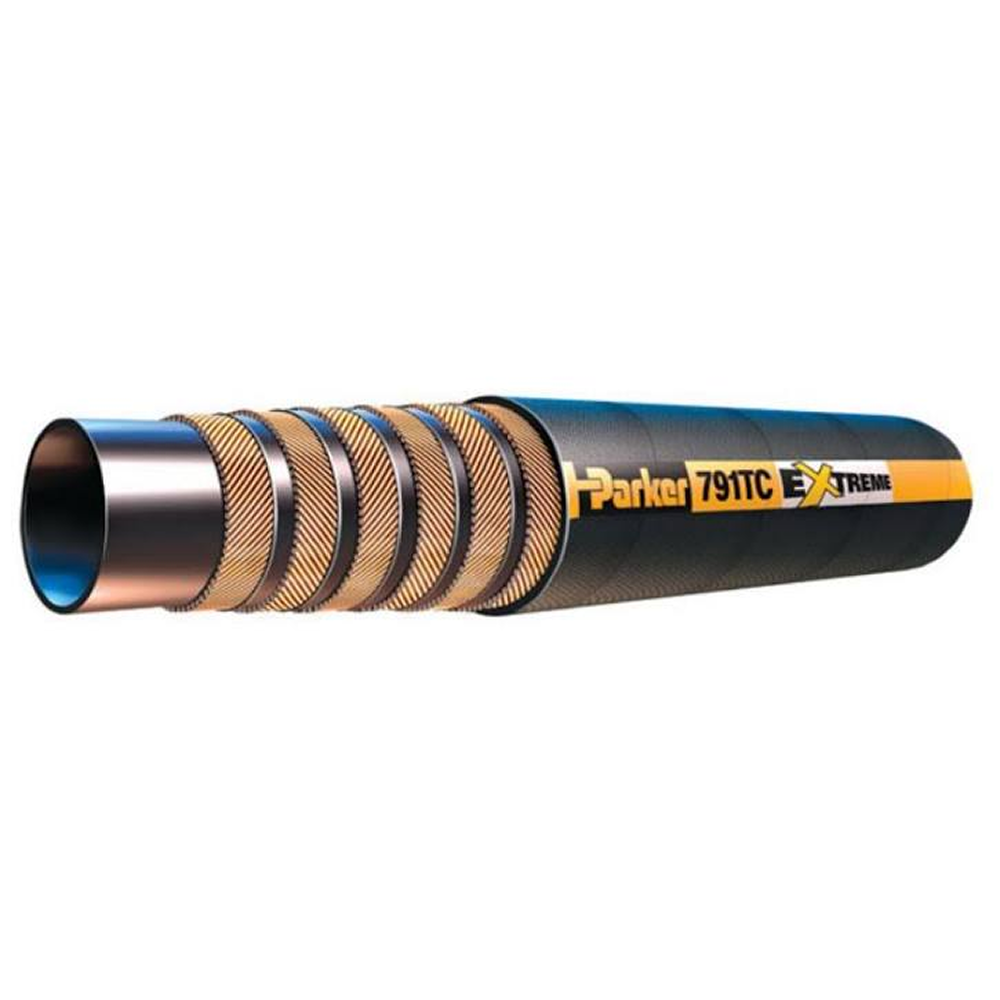

791TC
Certification: ABS, DNV, ISO 3862, Type R15, SAE 100R15, SAE J1942, USCG HF
Description
This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Technical Specifications
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | ABS, DNV, ISO 3862, Type R15, SAE 100R15, SAE J1942, USCG HF |
| Compatible Fitting: | 79 Series |
| Weight: | 1.59 to 4.79 kg/m, 1.07 to 3.22 lb/ft |
| Hose Reinforcement Material: | 4 or 6 Spirals of Steel Wire |
| Inside Diameter: | 3/4 to 1-1/2 inch, 19 to 38 mm |
| Maximum Operating Pressure: | 42.0 MPa, 6000 psi |
| Nominal Hose Inside Diameter: | 19 mm |
| Outside Diameter: | 1.26 to 2.28 inch, 32 to 58 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant, MSHA approved |
| Minimum Bend Radius: | 8 to 12 inch, 200 to 305 mm |
| Maximum Operating Temperature: | 257 °F, 125 °C |
Additional information
| Part Number | 791TC-12, 791TC-16, 791TC-20, 791TC-24 |
|---|
