801

801

Certification: N/A

View PDF     View Fittings

Category:

Description

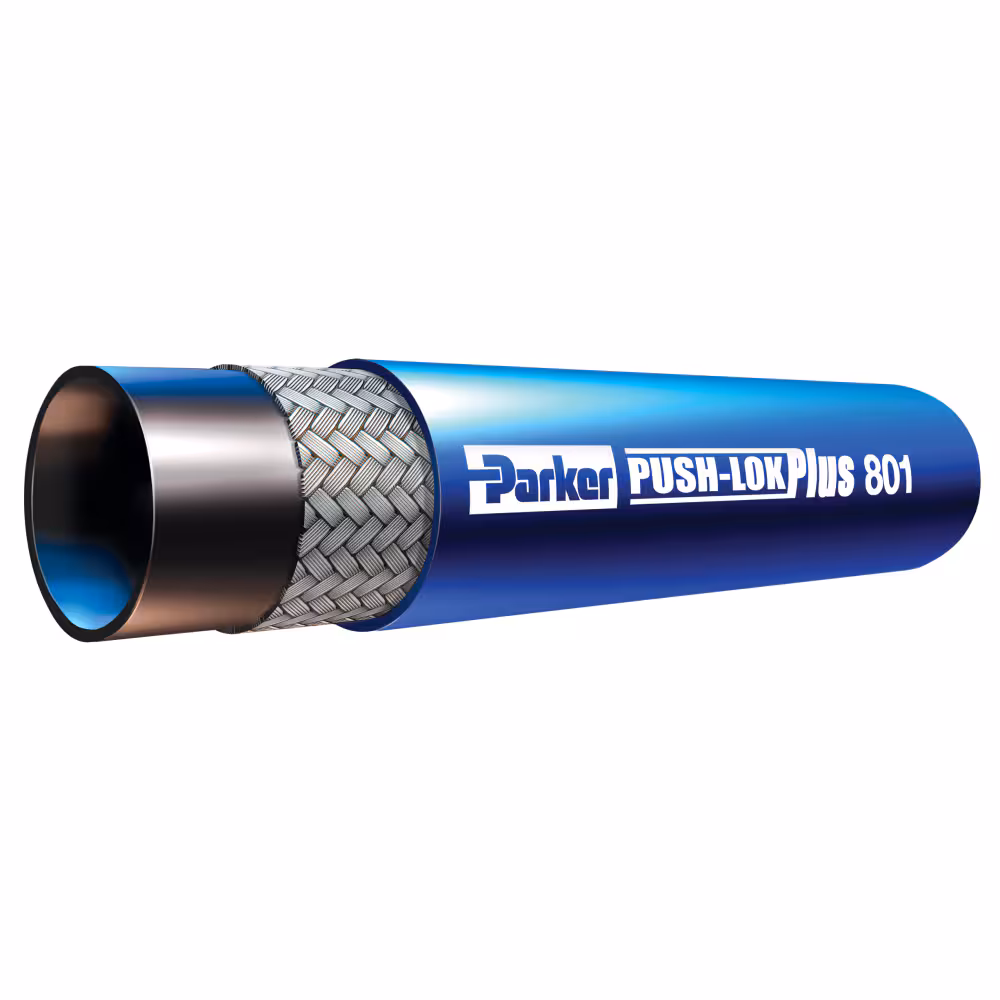

Parker’s 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Technical Specifications

Design Factor: 4:1
Cover Color: Black, Blue, Gray, Green, Red, Yellow
Maximum Operating Pressure: up to 24 bar, up to 2.4 MPa, up to 350 psi
Media: Air (Compressed Air), Coolants, Lubricants, Petroleum Hydraulic Fluids
Specifications Met: n/a
Compatible Fitting: HY Series, 82 Series
Minimum Bend Radius: 2-1/2 to 10 inch, 65 to 250 mm
Inside Diameter: 0.25 to 1 inch, 6.3 to 25 mm
Size: -4 to -16
Maximum Operating Temperature: View Part Details. (dependent on media), 158 °F (Air), 70 °C (Air), 185 °F (Water), 85 °C (Water), 257 °F (Oil), 125 °C (Oil)
Minimum Operating Temperature: View Part Details. (dependent on media), -40 °F (Oil)
Application: Automotive, Construction Equipment, Hydraulics, Industrial
Hose Reinforcement Material: 1 Braid of Fiber
Outside Diameter: 0.50 to 1.28 inch, 12.7 to 32.6 mm
Vacuum Pressure Rating: 15 to 28 inch-Hg, 381 to 711 mm-Hg
Cover Material: Synthetic Rubber MSHA approved
Hose Inner Tube Material: Synthetic Rubber
Weight: 0.09 to 0.37 lb/ft, 0.13 to 0.55 kg/m

Additional information

Part Number

801-4-XXX, 801-6-XXX, 801-8-XXX, 801-10-XXX, 801-12-XXX, 801-16-XXX
