846

MSHA

Category:

Description

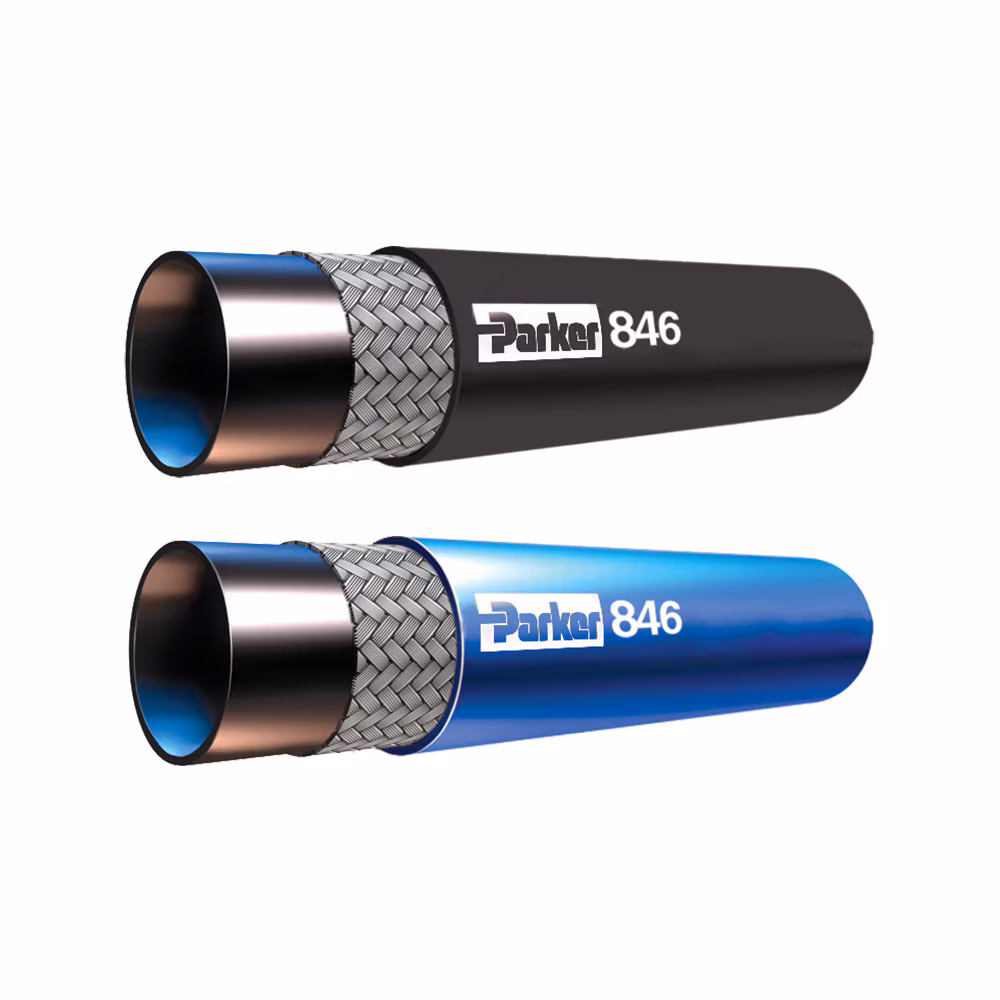

Parker’s Low Pressure Push-Lok Hose 846 has been developed for high temperature applications of +150 °C and for a working pressure up to 2.8 MPa. The hose range is compatible with Push-Lok fittings in steel and stainless steel in series 82.

Technical Specifications

Weight: 0.13 to 0.36 kg/m, 0.09 to 0.24 lb/ft
Industry: General Industrial
Hose Inner Tube Material: PKR synthetic rubber
Brand: Parker
Minimum Operating Temperature: -48 °C, -54.4 °F
Maximum Operating Pressure: 2.1 to 2.8 MPa, 21 to 28 bar, 300 to 400 psi
Application: High Temperature Applications
Product Type: Push-Lok and Push-on Hoses
Technology: Fluid & Gas Handling
Design Factor: 4:1
Division: Polymer Hose Division Europe
Minimum Bend Radius: 2.559 to 5.905 inch, 65 to 150 mm
Materials of Construction: Rubber
Cover Material: PKR synthetic rubber MSHA approved
Minimum Burst Pressure: 8.4 to 11.2 MPa, 1200 to 1600 psi
Vacuum Pressure Rating: 61 to 95 kPa
Specifications Met: MSHA
Cover Color: Black, Blue
Compatible Fitting: 82 Series
Inside Diameter: 1/4 to 3/4 inch, 6.4 to 19.1 mm
Maximum Operating Temperature: 150 °C (Water 85°C / Air 100°C), 302 °F (Water 185°F / Air 212°F)
Hose Reinforcement Material: High tensile fiber braid
Outside Diameter: 0.496 to 1.024 inch, 12.5 to 26.0 mm
Media: Air (General Industrial Air), Coolants (Anti-Freeze), Petroleum Hydraulic Fluids

Additional information

Part Number

846-4-XXX-RL, 846-6-XXX-RL, 846-8-XXX-RL, 846-10-XXX-RL, 846-12-XXX-RL
