ANFO
Certification: AS 2187.2
Description

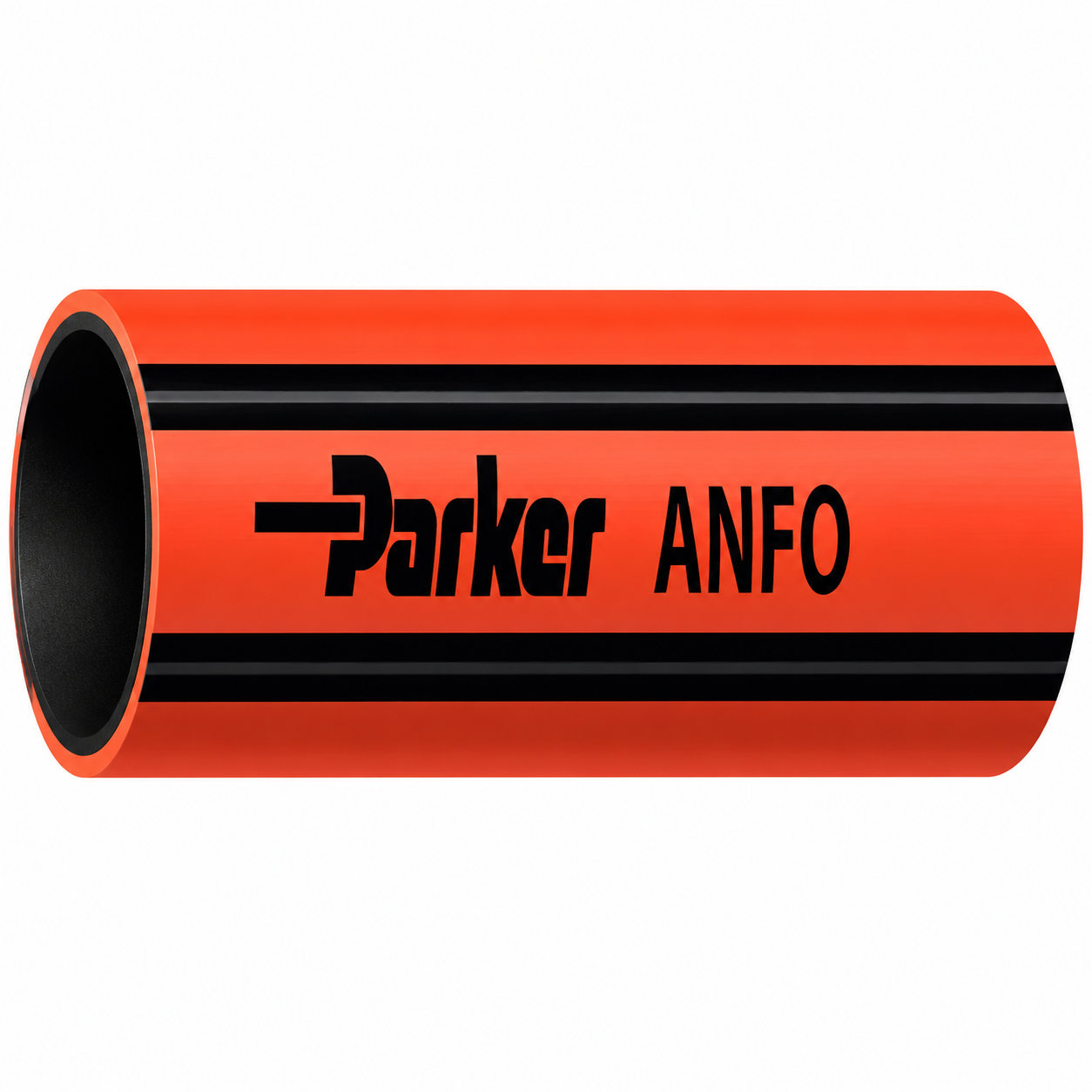

ANFO Explosive Loading Hose is specifically designed tubing used for the delivery of pneumatically loaded explosives up blast holes.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Cover Material: | PVC |
| Maximum Operating Temperature: | 80 °C |
| Nominal Hose Inside Diameter: | 20 to 32 mm |
| Operating Temperature: | -21 to 60 °C |
| Specifications Met: | AS 2187.2 |
| Weight: | 0.22 to 0.35 kg/m |
| Inside Diameter: | 3/4 to 1-1/4 inch, 19 to 32 mm |
| Minimum Operating Temperature: | -20 °C |
| Design Factor: | n/a |
| Minimum Bend Radius: | n/a |
| Outside Diameter: | 27 to 37 mm |
| Size: | -12 to -24 |
| Maximum Operating Pressure: | 100 to 150 psi |
| Application: | ANFO Loading |
Additional information
| Part Number | ANFO-020-030, ANFO-025-060, ANFO-032-060 |
|---|
