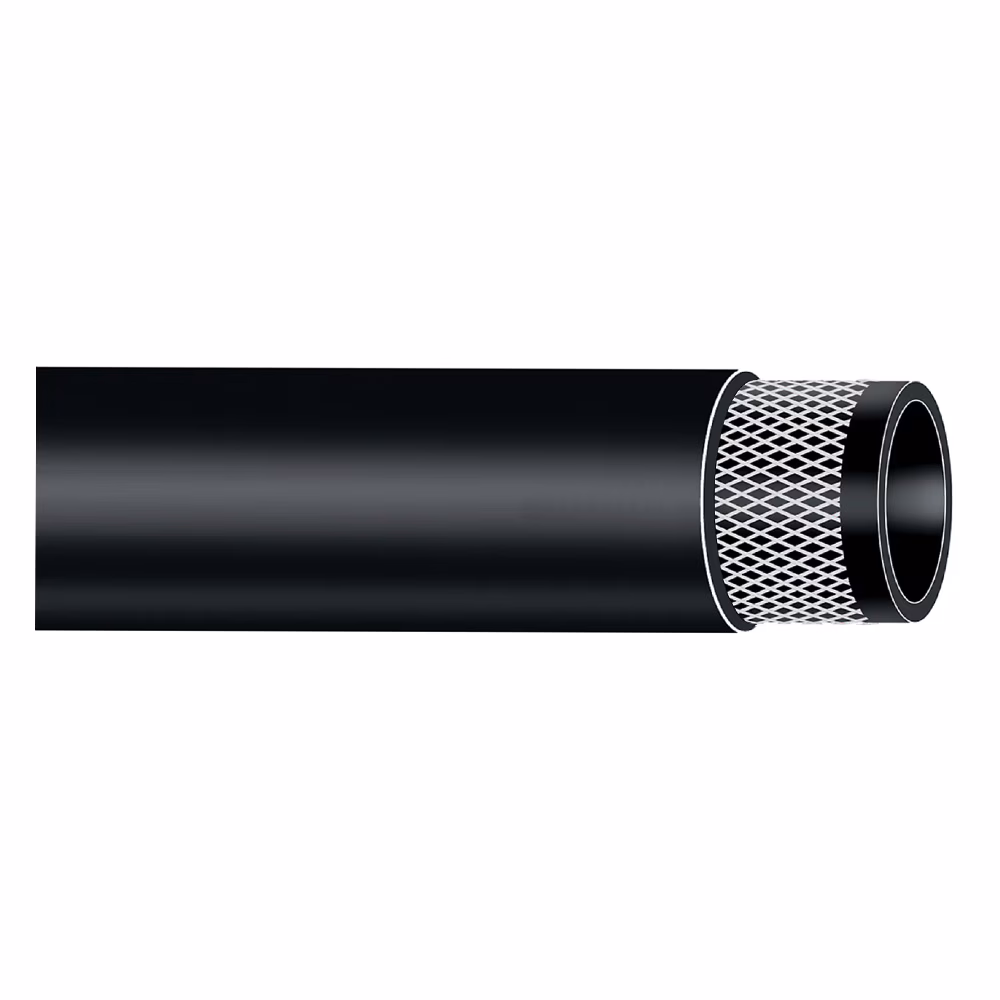

Carbopress N/L 10-20
Certification: Parker Specifications
Description
Carbopress N/L 10 – 20 hose is engineered for grease and hydrocarbons having an aromatic content not exceeded 50%.
Technical Specifications
| Weight: | 0.12 to 0.71 kg/m, 0.08 to 0.48 lb/ft |
| Industry: | Agriculture, Automotive, General Industrial, Transportation |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Application: | Oil & Fuel |
| Product Type: | Oil Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Special Nitrile Butadiene Rubber (NBR) |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Minimum Bend Radius: | 1.575 to 7.874 inch, 40 to 200 mm |
| Materials of Construction: | Rubber |
| Media: | Fuels (Diesel, Gasoline) – Check fuel type with our catalogue chart., Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 3/16 to 0.984 inch, 5 to 25 mm |
| Maximum Operating Temperature: | 80 °C (Up to 100°C for oil), 176 °F (Up to 212°F for oil) |
| Maximum Operating Pressure: | 10 to 20 bar, 150 to 300 psi |
| Hose Reinforcement Material: | Synthetic Textile Yarn |
| Outside Diameter: | 0.472 to 1.42 inch, 12 to 36 mm |
Additional information
| Part Number | IH30501001/100, IH30511003/100, IH30511002/100, IH30501002/100, IH30501003/100, IH30501004/100, IH30501006/40, IH30501007/50 |
|---|
