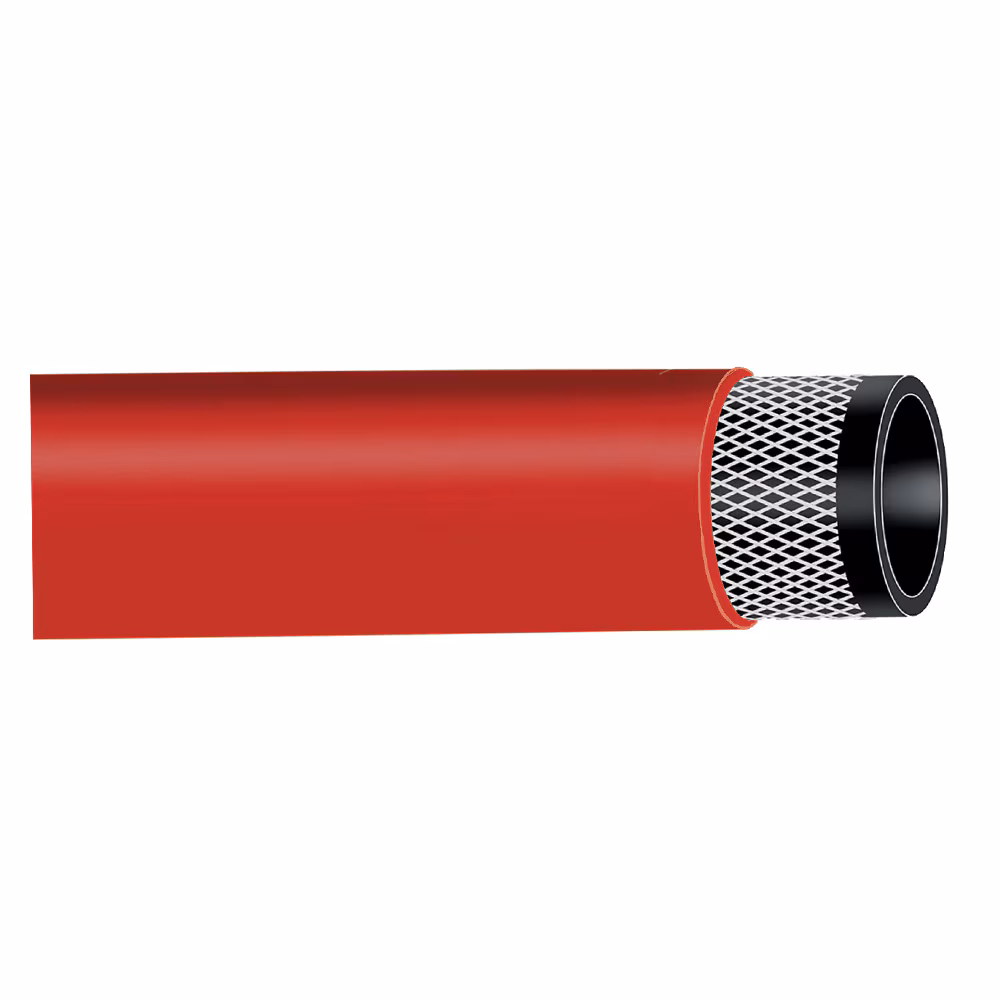

Autogene EN ISO 3821 NR/L – NB/L
ISO 3821, EN
Description
Autogene EN ISO 3821 NR/L – NB/L 20 is designed for delivery of welding and allied process gases.
Technical Specifications
| Weight: | 0.10 to 0.16 lb/ft, 0.15 to 0.24 kg/m |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM)/Styrene Butadiene Rubber (SBR) |
| Brand: | Parker |
| Maximum Operating Temperature: | 176 °F, 80 °C |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Pressure: | 2 MPa, 20 bar, 300 psi |
| Application: | Gas & Welding, Gas Transfer (Welding and allied process gases) |
| Product Type: | Specialty Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | Rubber |
| Product Style: | Delivery |
| Minimum Bend Radius: | 1.575 to 2 inch, 40 to 50 mm |
| Specifications Met: | ISO 3821, EN |
| Cover Color: | Blue, Red |
| Media: | Welding Gases (Industrial Gases), Welding Oxygen (Industrial Oxygen) |
| Compatible Fitting: | n/a |
| Inside Diameter: | 1/4 to 0.394 inch, 6.3 to 10 mm |
| Length: | 40 to 100 m |
| Hose Reinforcement Material: | Synthetic Textile Yarn |
| Outside Diameter: | 0.524 to 0.669 inch, 13.3 to 17 mm |
Additional information
| Part Number | IH30412803/40, IH30412914/100, IH30412716/40, IH30412716/100, IH30413221/40, IH30412703/40, IH30412915/100, IH30412707/40, IH30412707/100, IH30413220/40 |
|---|
