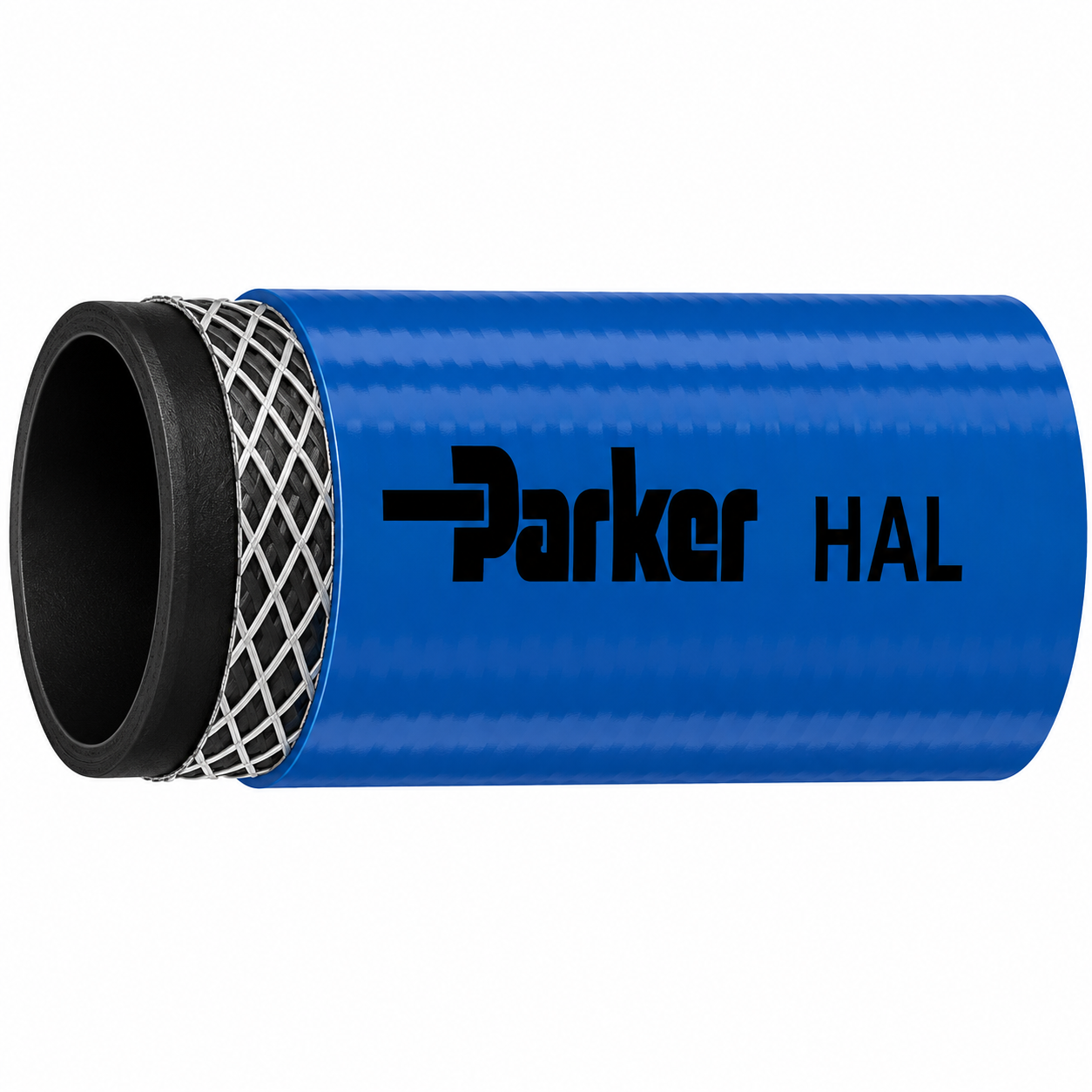

Blue Adflex Airline

AS/NZS 2554, Class 5

Category:

Description

Blue Adflex Airline Flexible is a lightweight airline hose. It provides an economical alternative for users who do not require the higher working pressure of 10mm Chemair. Conforms to AS/NZS 2554 class B requirements.

Technical Specifications

Hose Inner Tube Material: PVC
Cover Material: PVC
Nominal Hose Inside Diameter: 10 mm
Maximum Operating Pressure: 1.72 MPa, 17.2 bar, 250 psi
Maximum Operating Temperature: 60 °C, 140 °F
Minimum Operating Temperature: -10 °C, 14 °F
Weight: 0.16 kg/m
Media: Air (Compressed Air with traces of Oil)
Specifications Met: AS/NZS 2554, Class 5
Inside Diameter: 0.375 inch, 10 mm
Application: Pneumatic Tools, Portable Equipment
Hose Reinforcement Material: Fiber
Outside Diameter: 16 mm
Size: -6
Minimum Bend Radius: 85 mm

Additional information

Part Number

HAL-010-030
