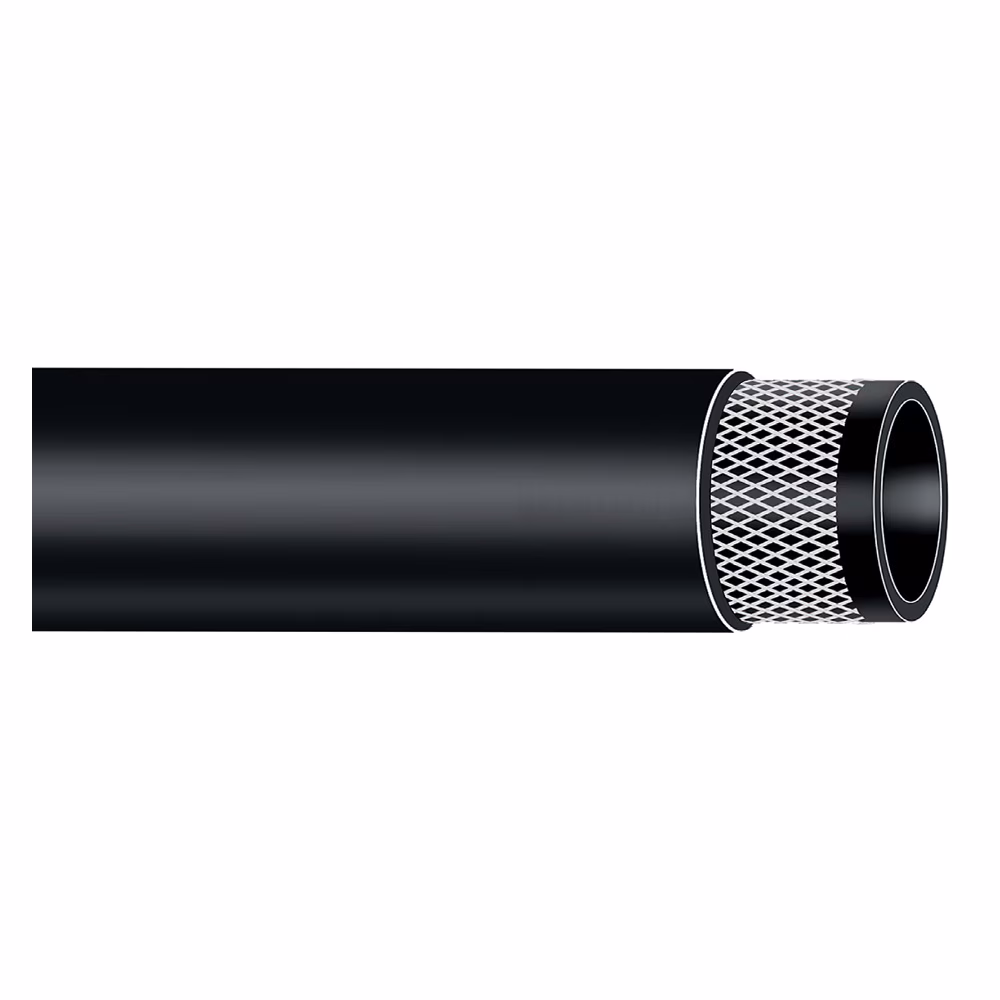

Carboblue N/L 10 – 20
Parker Specifications
Description
Carboblue N/L 10 – 20 is specially designed to convey urea aqueous solution between tanks and dispensers for SCR systems.
Technical Specifications
| Weight: | 0.18 to 0.51 lb/ft, 0.27 to 0.76 kg/m |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Nitrosamine Free |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Application: | Automotive, Boat, Fluid Transfer (AdBlue) |
| Product Type: | Chemical Hose, Specialty Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Nitrosamine Free, Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | Rubber |
| Minimum Bend Radius: | 40 to 150 mm, 1.575 to 5.906 inch |
| Product Style: | Delivery |
| Media: | Chemicals (Urea) – Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 0.236 to 0.984 inch, 6 to 25 mm |
| Maximum Operating Temperature: | 100 °C with peaks up to 120°C., 212 °F with peaks up to 248°F. |
| Maximum Operating Pressure: | 10 to 20 bar, 150 to 300 psi |
| Hose Reinforcement Material: | Synthetic Textile Fabric |
| Outside Diameter: | 0.472 to 1.457 inch, 12 to 37 mm |
Additional information
| Part Number | IH30515041/80, IH30515043/100, IH30515044/100, IH30515045/100, IH30515046/100, IH30515047/50 |
|---|
