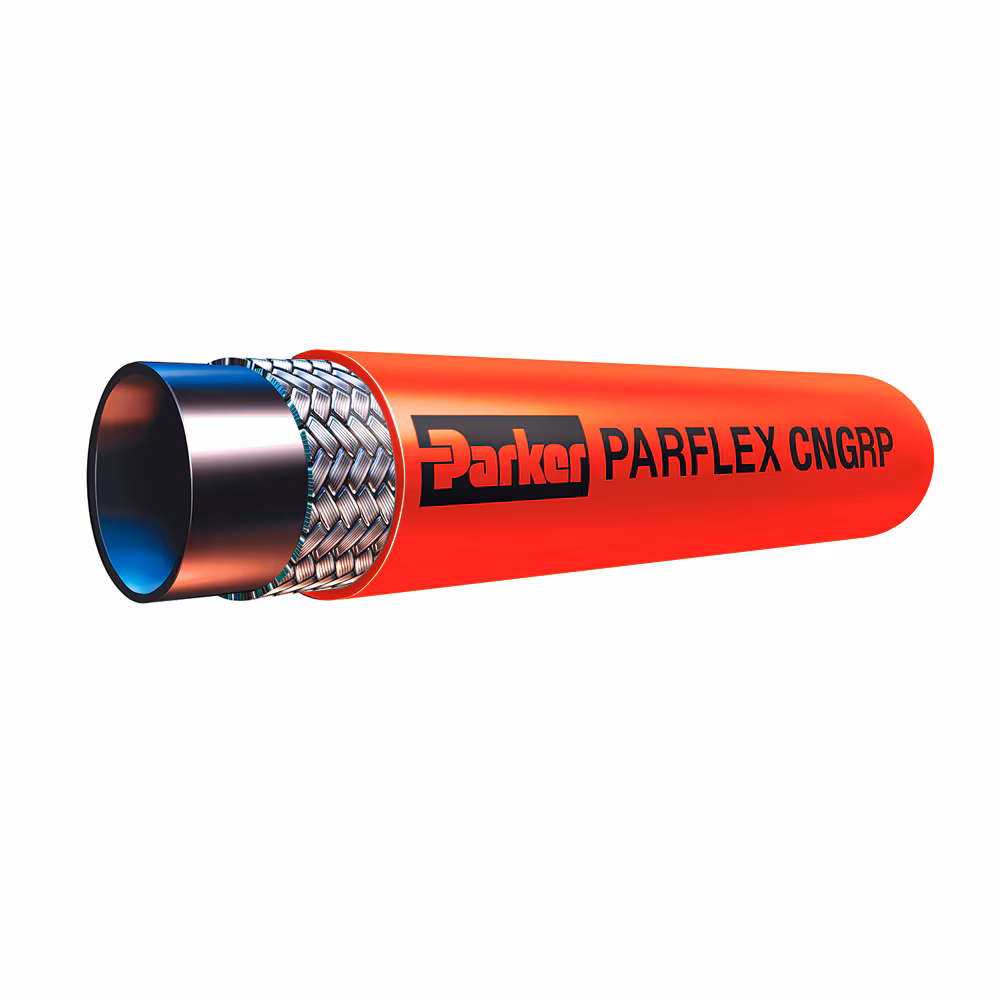

CNGRP
Certification: ANSI NGV, CSA, NFPA 3.1, CSA 12.3
Description
Parflex CNGRP hose is the only fully CSA listed fluid conveyance system that is flexible. The flexibility of the product provides reduced warranty costs versus stainless steel tubing in vibration/movement applications.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Design Factor: | 4 |
| Hose Inner Tube Material: | Polyamide (PA), Conductive |
| Specifications Met: | ANSI NGV, CSA, NFPA 3.1, CSA 12.3 |
| Compatible Fitting: | 91N Series |
| Maximum Operating Pressure: | 500 psi, 3.45 MPa, 34.5 bar |
| Maximum Operating Temperature: | 248 °F, 120 °C |
| Weight: | 0.39 to 0.45 kg/m, 0.26 to 0.30 lb/ft |
| Inside Diameter: | 1/2 to 5/8 inch, 12.7 to 15.9 mm |
| Application: | Natural Gas Transfer (on vehicle) |
| Product Style: | Conductive |
| Cover Material: | Stainless Steel |
| Hose Reinforcement Material: | Thermoplastic Vulcanizates (TPV) |
| Minimum Bend Radius: | 4 to 5 inch, 102 to 127 mm |
| Outside Diameter: | 0.89 to 1.04 inch, 22.6 to 26.4 mm |
| Size: | -10 to -12 |
Additional information
| Part Number | CNGRP-12, CNGRP-10 |
|---|
