GPH
N/A
Description

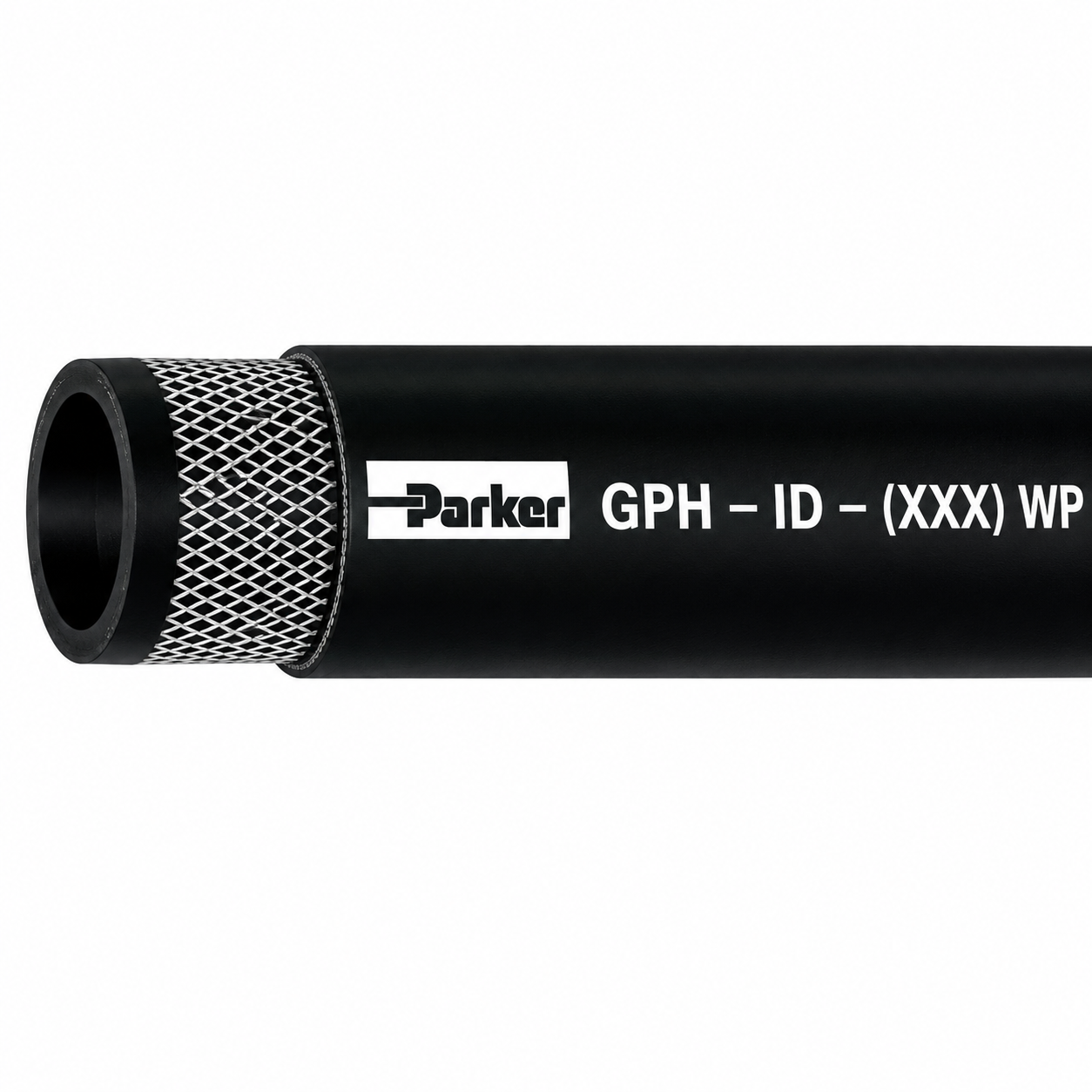

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH
Technical Specifications
| Weight: | 0.03 to 0.16 kg, 0.01 to 0.02 kg/m, 0.03 to 0.16 lb/ft, 0.06 to 0.36 lb |
| Cover Material: | PVC |
| Cover Color: | Black, Blue, Gray, Red, Yellow |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Compatible Fitting: | HY Series |
| Maximum Operating Pressure: | 1.7 to 2.1 MPa, 250 to 300 psi, 17.2 to 20.7 bar |
| Vacuum Pressure Rating: | 127 to 635 mm-Hg, 5 to 25 inch-Hg |
| Minimum Bend Radius: | 15.2 to 101.6 mm, 0.6 to 4 inch |
| Nominal Hose Inside Diameter: | 5 to 25 mm |
| Inside Diameter: | 3/16 to 1 inch, 4.8 to 25.4 mm |
| Application: | Air, Multipurpose |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Package Type: | Coil |
| Outside Diameter: | 0.400 to 1.330 inch, 10.2 to 33.8 mm |
| Hose Inner Tube Material: | Black, Prime PVC |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | -15 °F, -26 °C |
| Maximum Operating Temperature: | 150 °F, 65 °C |
| Length per Package: | 100 to 500 ft |
Additional information
| Part Number | GPH-4BLK500RL, GPH-4BLU500RL, GPH-4GRA500RL, GPH-4RED500RL |
|---|
