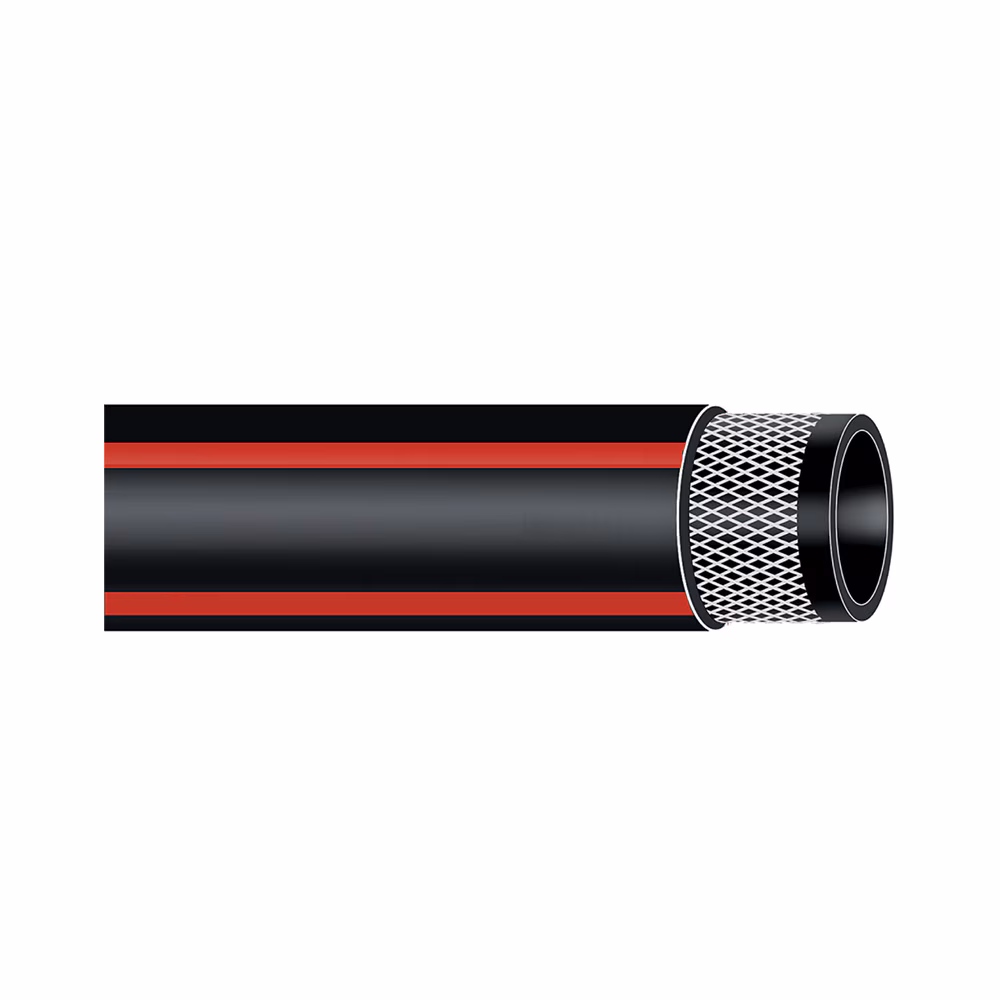

Jumbo
Parker Specifications
Description
Jumbo is a multipurpose hose engineered to discharge many type of fluids at high temperature.
Technical Specifications
| Weight: | 0.21 to 0.74 kg/m, 0.14 to 0.50 lb/ft |
| Industry: | General Industrial, Off-road Machinery |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Brand: | Parker |
| Maximum Operating Temperature: | 120 °C, 248 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 2 MPa, 20 bar, 300 psi |
| Product Type: | Water Hose, Suction Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 3:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.953 to 5.906 inch, 75 to 150 mm |
| Materials of Construction: | Rubber |
| Application: | Discharge of Hot and Cold Water, Air, Light-Chemical Media (in many industrial and agricultural applications) |
| Cover Color: | Black with three Red stripes |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 0.512 to 0.984 inch, 13 to 25 mm |
| Hose Reinforcement Material: | Synthetic Textile Yarn |
| Outside Diameter: | 0.748 to 1.338 inch, 19 to 34 mm |
| Media: | Air (General Industrial Air), Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water (Hot Water) |
Additional information
| Part Number | IH30116500/40, IH30116501/40, IH30116502/40, IH30116504/40 |
|---|
