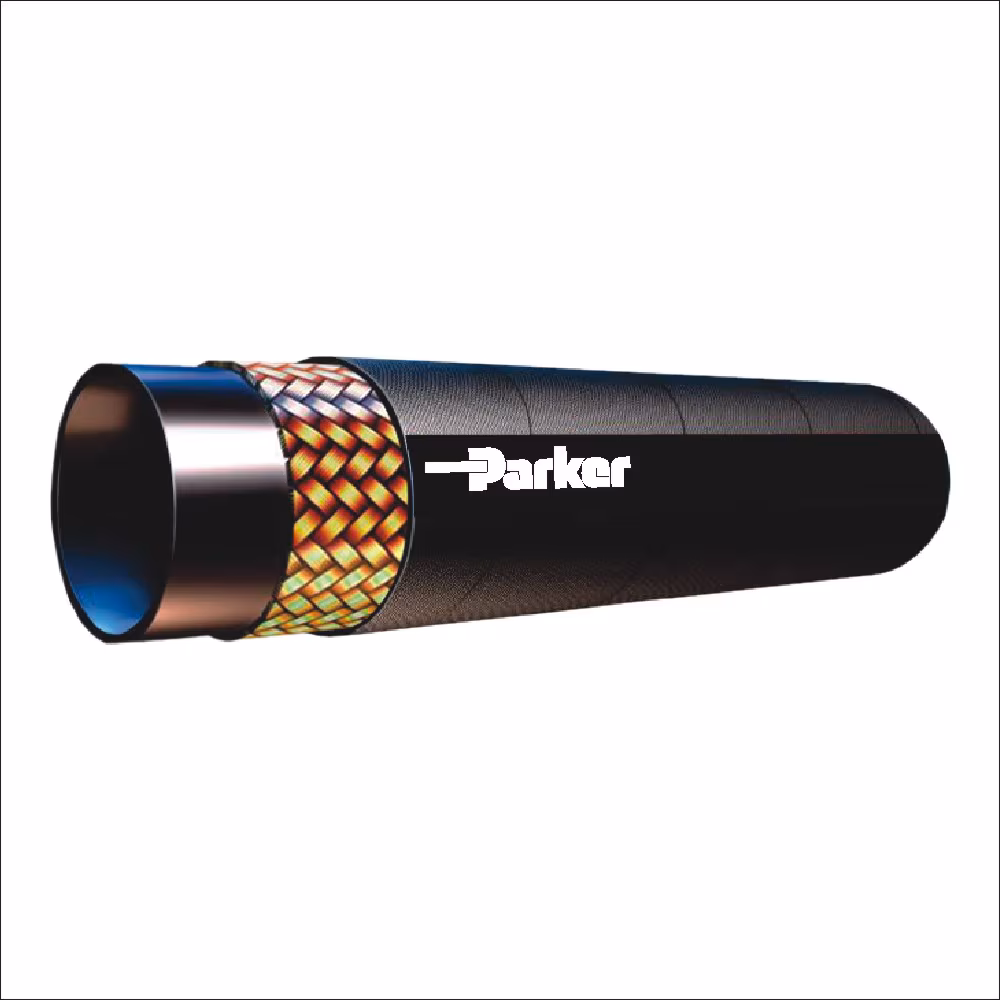

LPG Hose
Parker Specifications
Description
LPG hose meets BS 4089: 1989 TYPE 1 is a one wire hose with ozone resistant cover.
Technical Specifications
| Hose Inner Tube Material: | Synthetic Rubber |
| Application: | Fuel Transfer, Liquefied Petroleum Gas (LPG) |
| Maximum Operating Temperature: | 45 °C, 113 °F |
| Cover Material: | Synthetic Rubber |
| Maximum Operating Pressure: | 2.5 MPa, 25 bar, 362 psi |
| Minimum Bend Radius: | 4.7 to 23.6 inch, 120 to 600 mm |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Weight: | 0.28 to 1.42 lb/ft, 0.42 to 2.1 kg/m |
| Media: | Fuels – Check fuel type with our catalogue chart., LPG |
| Specifications Met: | BS 4089: 1989, Type 1 |
| Inside Diameter: | 3/8 to 2 inch, 9.5 to 50.8 mm |
| Hose Reinforcement Material: | 1 Braid of Wire |
| Outside Diameter: | 0.77 to 2.63 inch, 19.6 to 66.7 mm |
| Size: | -6 to -32 |
Additional information
| Part Number | LPGPM-6PM, LPGPM-8PM, LPGPM-10PM, LPGPM-12PM, LPGPM-16PM, LPGPM-20PM, LPGPM-24PM, LPGPM-32PM |
|---|
