NCW/NCB

FDA (Core Tube), USP Class VI (compliant core tube)

Description

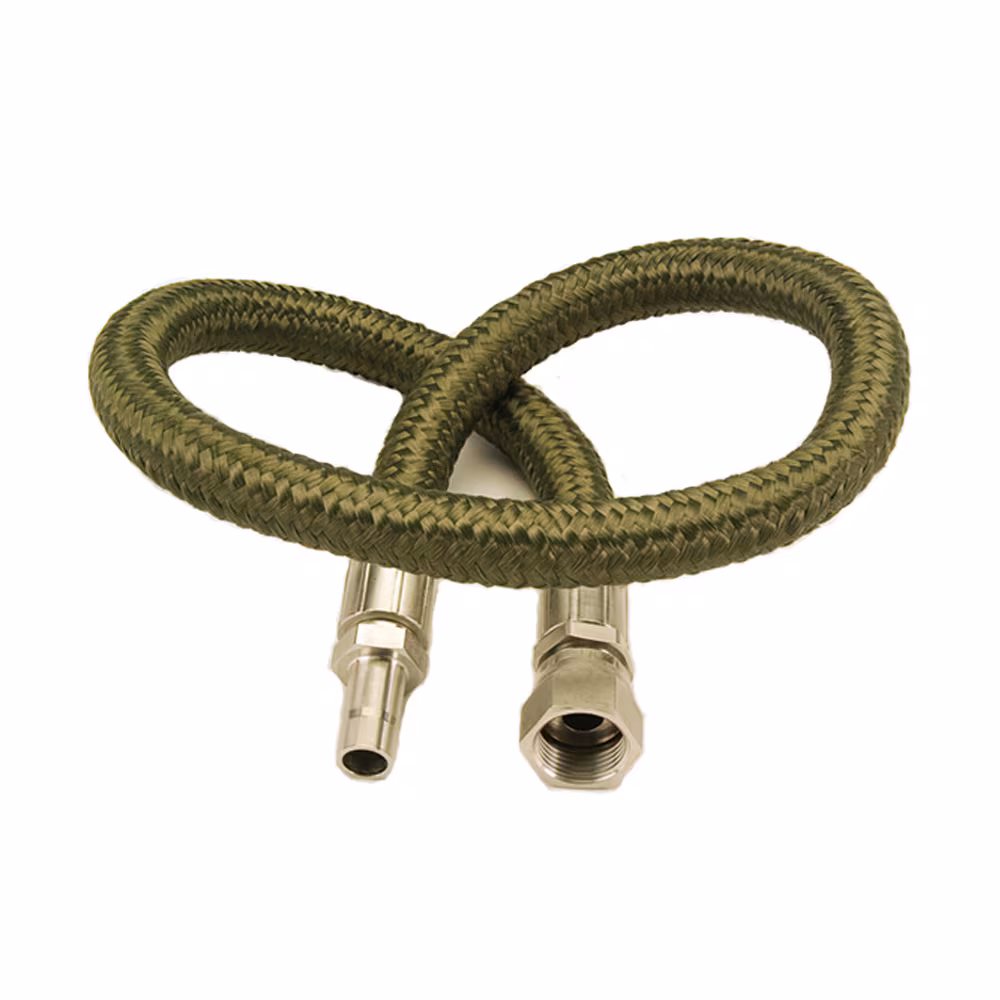

PTFE hose with a nomex braid eliminates RFI issues and they are also less susceptible to cracking from stress or flexing than metal hose assemblies.

Cover Color:	n/a
Media:	Chemicals (Adhesive, Glue), Chemicals – Check your fluid compatibility with our catalogue chart., Dry Abrasive Powders, Food & Beverage, Industrial Fluids, Pharmaceutical Fluids, Welding Gases (Technical Gases)
Specifications Met:	FDA (Core Tube), USP Class VI (compliant core tube)
Compatible Fitting:	PAGE Series
Inside Diameter:	0.260 inch, 0.370 inch, 0.500 inch, 0.750 inch, 1 inch, 6.4 to 25 mm
Maximum Operating Temperature:	400 °F, 204 °C
Minimum Operating Temperature:	-100 °F, -73 °C
Maximum Operating Pressure:	14 to 50 bar, 1.4 to 5.0 MPa, 200 to 725 psi
Application:	Chemical Transfer, Diagnostics, Fluid Handling, Food & Beverage Processing, Instrumentation, Medical, Pharmaceutical, Transportation
Product Type:	PTFE Hose
Weight:	0.03 to 0.32 lb/ft, 0.02 to 0.22 kg/m
Product Style:	Convoluted
Hose Inner Tube Material:	Natural, Polytetrafluoroethylene (PTFE) Static Dissipative, Polytetrafluoroethylene (PTFE)
Cover Material:	n/a
Design Factor:	4
Vacuum Pressure Rating:	28 inch-Hg, 711.2 mm-Hg
Hose Reinforcement Material:	Green Nomex
Minimum Bend Radius:	1 to 4 inch, 25 to 102 mm
Size:	-4 to -16
Outside Diameter:	0.480 inch, 0.580 inch, 0.770 inch, 1.050 inch, 1.330 inch, 6.4 to 25 mm

Part Number	04-NCB, 06-NCB, 08-NCB, 12-NCB, 16-NCB 04-NCW, 06-NCW, 08-NCW, 12-NCW, 16-NCW
