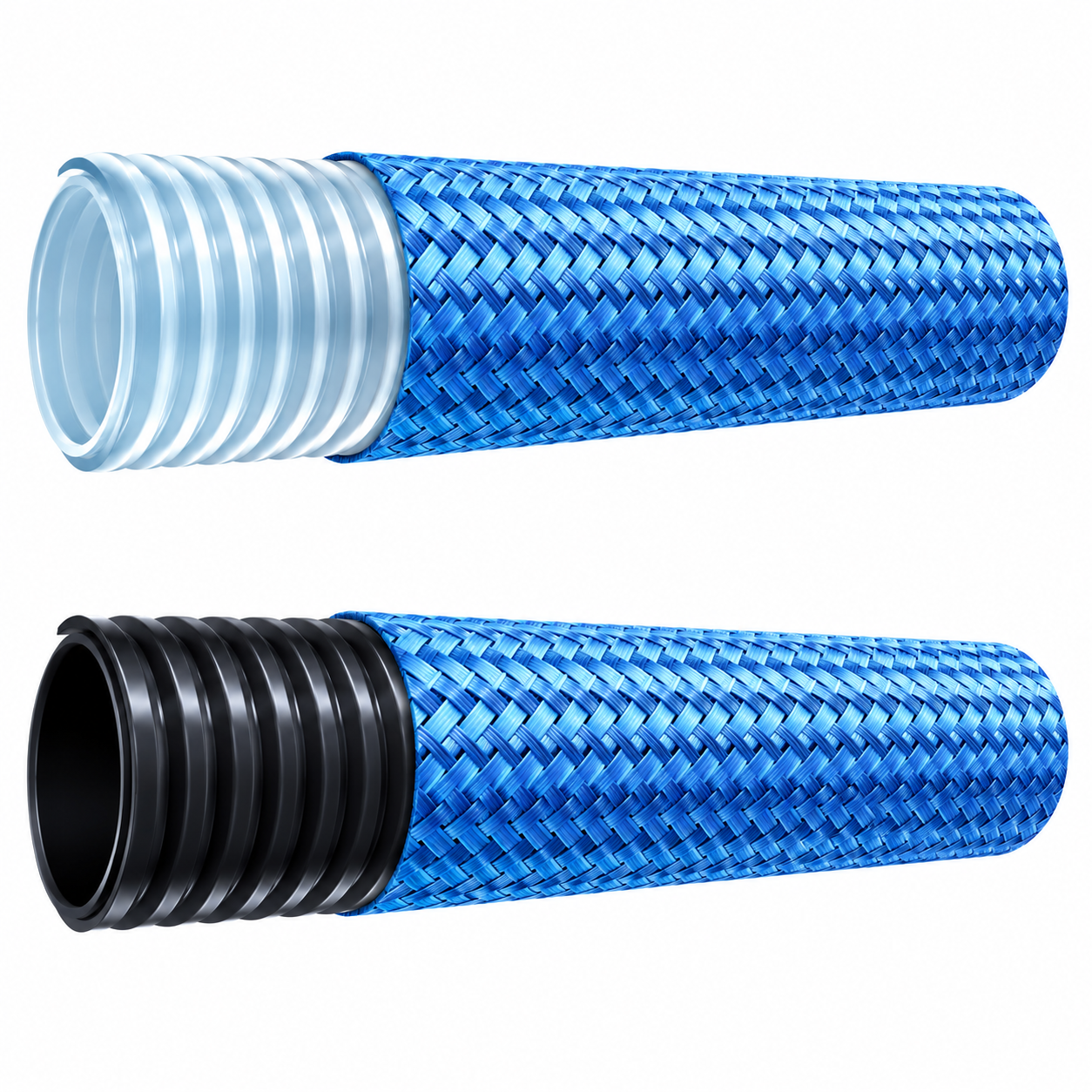

PCW/PCB

Certification: FDA (Core Tube), USP Class VI (compliant core tube)

View PDF     View Fittings

Category:

Description

Polypropylene braided convoluted hoses are seamless, low profile, environmentally safe, and are 20% lighter than traditional stainless steel braided hoses for increased flexibility.

Technical Specifications

Design Factor: 4
Media: Air, Chemicals (Paint), Industrial Fluids, Water
Specifications Met: FDA (Core Tube), USP Class VI (compliant core tube)
Compatible Fitting: PAGE Series
Maximum Operating Pressure: 2.4 MPa, 24 bar, 350 psi
Maximum Operating Temperature: 212 °F, 100 °C
Minimum Operating Temperature: 0 °F, -18 °C
Inside Diameter: 1/4 to 2 inch, 6 to 51 mm
Weight: 0.03 to 0.56 lb/ft, 0.05 to 0.83 kg/m
Application: Chemical Transfer, Fluid Handling
Hose Inner Tube Material: Natural Static Dissipative, Polytetrafluoroethylene (PTFE) Static Dissipative
Cover Material: n/a
Vacuum Pressure Rating: 28.0 inch-Hg, 711.2 mm-Hg
Product Type: PTFE Hose
Size: -4 to -24
Minimum Bend Radius: 19 to 121 mm, 3/4 to 4-3/4 inch
Hose Reinforcement Material: Braid of Polypropylene
Product Style: Convoluted
Outside Diameter: 0.640 to 2.650 mm, 14 to 67 inch

Additional information

Part Number

06-PCB, 08-PCB, 12-PCB, 16-PCB, 24-PCB
06-PCW, 08-PCW, 12-PCW, 16-PCW, 24-PCW, 32-PCW

Related products

2030T-V70CON

NCW/NCB

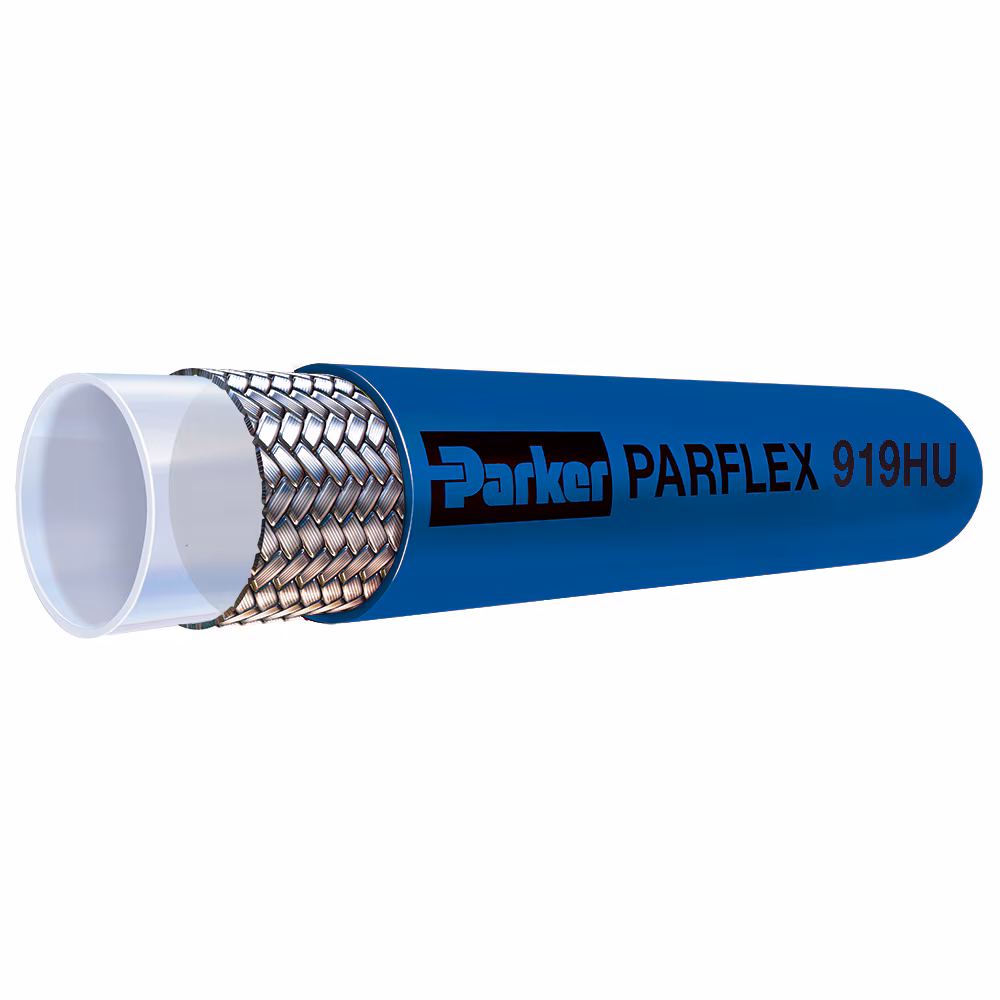

919HU
