PFX15 (Ultra High pressure EU)
Certification: DIN 1829-2, ISO 23384
Description

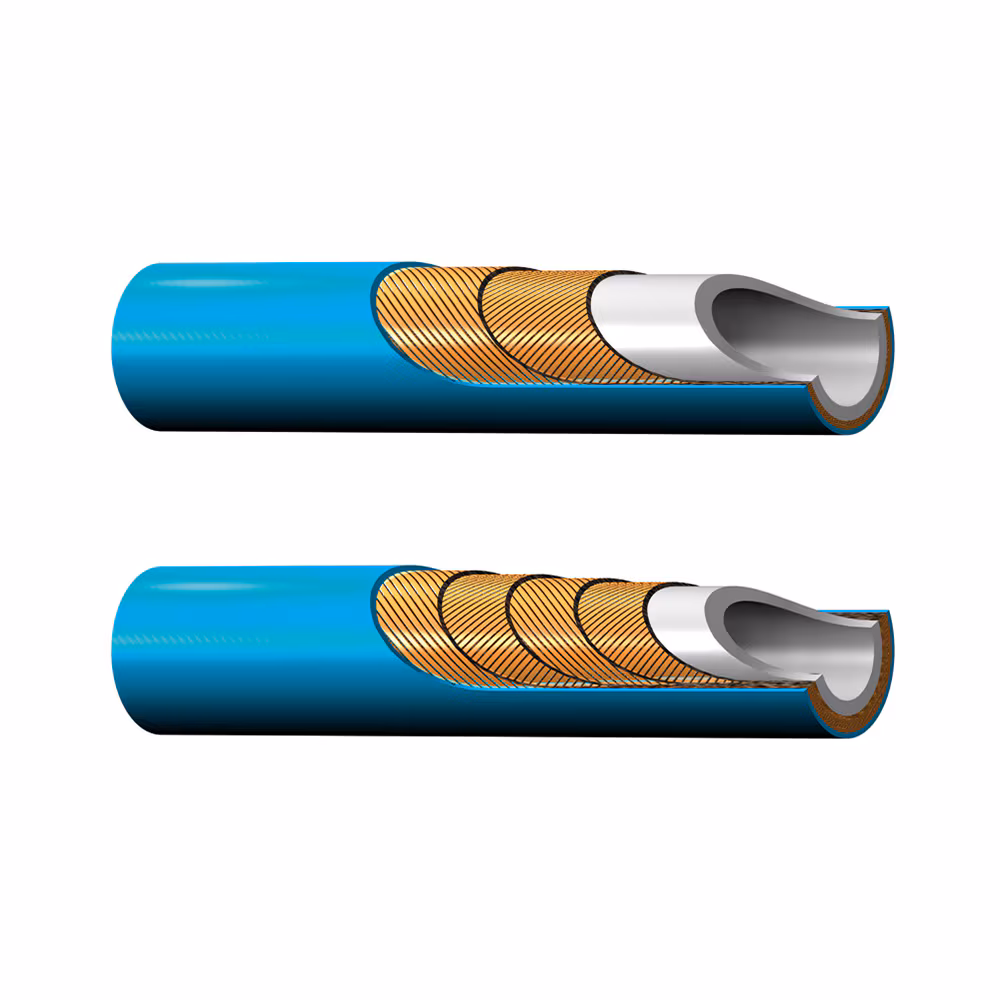

Parker’s PFX15 ultra high pressure waterblast hose delivers lightweight durability with high‑strength reinforcement, abrasion‑resistant cover and a robust design factor, plus color‑coded branding for quick identification in UHP cleaning.
Technical Specifications
| Weight: | 0.11 to 0.44 kg/m, 0.07 to 0.30 lb/ft |
| Hose Outside Diameter: | 7.9 to 14.6 mm, 0.311 to 0.575 inch |
| Industry: | Industrial Manufacturing Equipment, Construction |
| Minimum Burst Pressure: | 54375 psi, 375 MPa |
| Inside Diameter: | 4.0 to 8.1 mm, 5/32 to 5/16 inch |
| Cover Color: | Blue according WJTA Color Coding |
| Hose Inner Tube Material: | Polyoxymethylene |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Media: | Water |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Maximum Operating Pressure: | 21750 psi, 150 MPa, 1500 bar |
| Compatible Fitting: | TX, TX-PL |
| Application: | Industrial Cleaning, Waterblast Cleaning Equipment, Hydrodemolition |
| Product Type: | High Pressure Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide |
| Design Factor: | 2,5:1 |
| Hose Reinforcement Material: | Two to four spiral layers of maximum tensile wire inch |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 75 to 175 mm, 2.953 to 6.890 inch |
| Specifications Met: | DIN 1829-2, ISO 23384 |
Additional information
| Part Number | PFX15-025-PL, PFX15-03-PL, PFX15-05-PL |
|---|
